TC 6532L Conveyor

Portable Lattice Conveyor

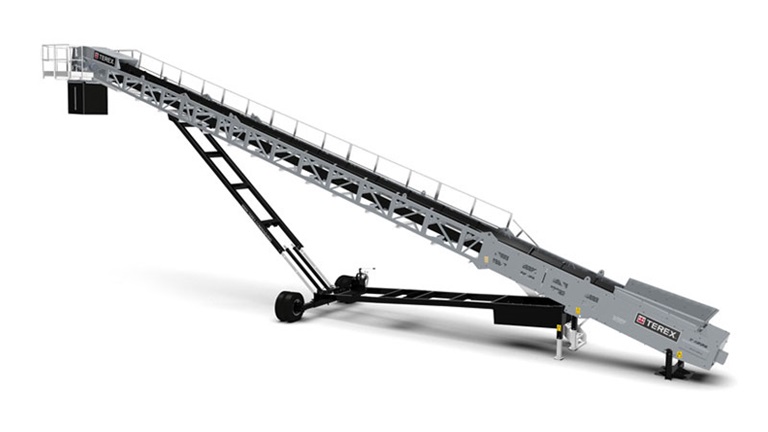

TC Lattice Range Conveyor Side View
The Terex® TC 6532L is an integral part of the Terex Washing Systems product range and is constructed to the same high engineering specification. It’s portability and versatility allows it to work in confined spaces and combinations of one, two or three with TWS processing plants.

The TC range of conveyors provides the ability to drastically increase stockpile capacity and can handle up to 400 tph.

FEATURES AND BENEFITS
• Working length of 65 feet
• Capable of handling up to 400 tph (441 us tonnes)
• Customized A-Frame to suit any application
• Manual hand pump for height adjustment
• Detachable pivot stand and towbar
• Heavy duty 800mm (32”) belt as standard
• Large stockpile capacity

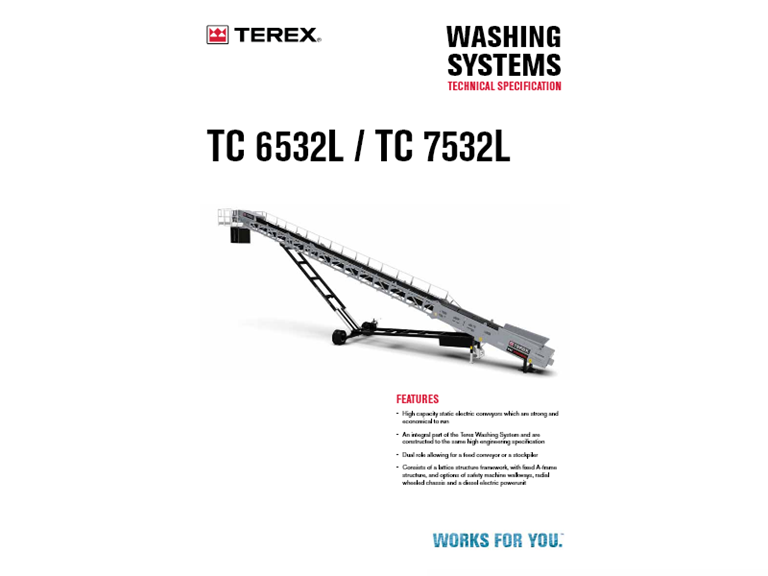

Download the technical specification below for more information.
Specification Value
Conveyor Length 67' 10" / 20.68m
Machine Width 8' 7" / 2.63m
Weight 22,050lb / 10000kg
