4800 RC

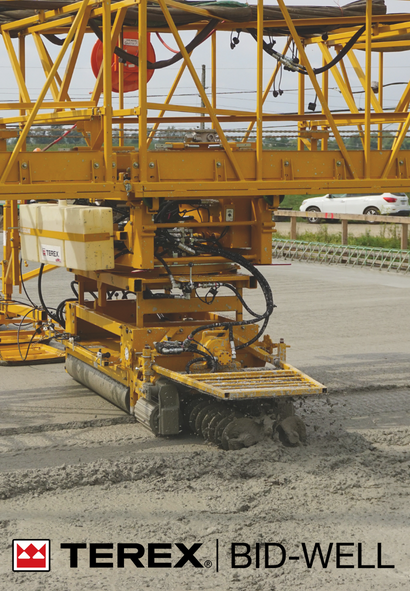

Bridge and Flatwork Paver

The new remote control system (Patent Pending) on the 4800 RC Roller Paver continues to provide safe operation of the machine while adding convenience and enhanced communication between the operator, team members and the concrete placer. Even though the RC unit controls machine: engine, power legs, machine and carriage travel speed functions and can also control most accessories including power crown adjuster, power crown positioning screw and a standard carriage fogging (excluding internal concrete vibration), the operator’s console is still functional as needed.

Specification Value
Truss Size 48 in / 1.2 m
Max Paving Width 116 ft / 35.3 m
Operating Weight (Standard) 10,473 lbs / 4,750.5 kg
Truss Depth 48 in / 1.2 m
Machine Length ■ 36 ft / 11.0 m standard, can be extended to 120 ft / 36.6 m
■ Capable of larger spans with factory consultation
Paving Width ■ Standard: 32.5 ft / 9.9m
■ Minimum: 12 ft / 3.6 m
■ Maximum: 116 ft / 35 m
Legs Heavy duty powered 6 in / .015 m diameter
Wheel System Four 4 ft / 1.2mbogies (two drivers, two idlers)
Crown Universal Power Crown System
Standard Operating Weight 10,473 lbs / 4,750.5 kg
Paving Carriage ■ Dual 5 ft / 1.5 m long paving rollers
■ Dual adjustable strike-off augers with double flighting meter
■ Patented 11.5 in / .29 m Rota-Vibe®
■ Paving roller direction control valves
■ Paving carriage pivot cylinder
■ Automatic roller rotation kit
■ Adjustable finishing pans with burlap drag or astro-grass
■ Eight (8) bogied carriage rollers with hold-down rollers and side
trust rollers
■ Dual-chain carriage drive
Power Two interchangeable 23 HP / 17.1 kW gasoline engines with 12-volt electric starters, one mounted on the frame at the operator's station that drives the machine and carriage travel.

Automatic Operation ■ Total automatic machine operation
■ Automatic machine advance at the end of each paving carriage
pass 0-15 in / .38 m
■ Automatic cushioned paving carriage travel reversal
■ Operator can stop and reverse carriage travel at any point
