• 604 Series

604


No other flail debarker in the industry is more rugged than the CBI Magnum Force Flail 604. It is designed and manufactured to meet the standards of logging contractors across the globe. Capable of processing over 150 tons per hour powered by CAT C-18 765 HP diesel engine (currently not updated in the downloadable brochure), this massive debarking machine handles tree diameters of up to 24”. Its four-roll flail design guarantees maximum debarking action to assure owners earn a timely ROI through a quality end product.

Technical Documentation

Working Dimensions

Machine Length 44 ft 11 in 13 m 69 cm

Product Details

Fuel Capacity 330 gallons 1,249 liters
Weight 98,000 lbs 44,452 kgs
Flail Drum Diameter 40 " 1 m
Flail Drum Width 60 " 1.50 m

Power

Engine CAT C18; 600hp CAT C18; 447kW

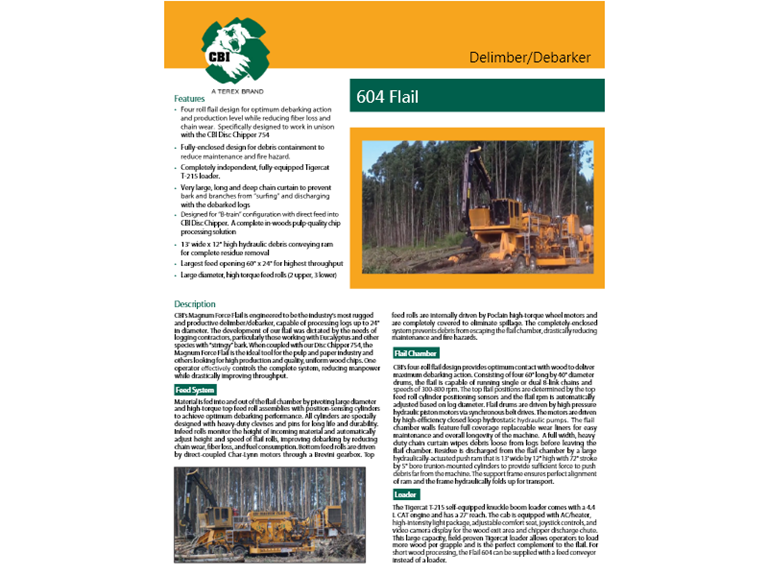

Downloads
