Horizontal Grinders

CBI Horizontal Grinders

Horizontal Grinders Designed for More Value

The value curve of the Horizontal Grinder has been completely re-imagined by CBI to achieve unmatched production. For three decades, CBI grinders have been purpose-built to outproduce, outperform, and outlast all other grinders on the market. CBI Horizontal Grinders reduce a customer’s total cost of ownership and have raised the expectations of an entire industry. Connect with our team and see what CBI can do for your business.

✓Largest production rates ✓ Leading fuel economy ✓Best cost per ton
 ✓Easiest maintenance ✓ Unmatched durability ✓Highest resale value
✓Lowest maintenance costs  ✓Greatest versatility


  • 6800CT Horizontal Grinder Render

    6800CT

    The CBI Magnum Force 6800CT Horizontal Grinder has been engineered to surpass every horizontal grinder that came before it. Once land clearing and wood waste professionals switch to CBI grinders for their ultimate production, performance, and durability, they never look back. This is the best horizontal grinder on the market.

    Specification Value
    Rotor Size Width: 60” Diameter: 40” Shaft: 8” Width: 1.52m Diameter: 1.01m Shaft: .203m
    Engine CAT C27; 1050hp engine (Option - CAT C32; 1125hp or 1200hp engine) CAT C27; 782kW (Option - CAT C32; 838kW or 894kW engine)
    Weight 86,500lbs (depending on options) 39,236kg (depending on options)
    Working Dimensions Width: 11' 1" Length: 52' 9" Height: 16' 1" Width: 3.38m Length: 16.07m Height: 4.89m
    Transport Dimensions Width: 11’ 1” Length: 43’ 2” Height: 12’ 0” Width: 3.38m Length: 13.16m Height: 3.66m
    Learn more

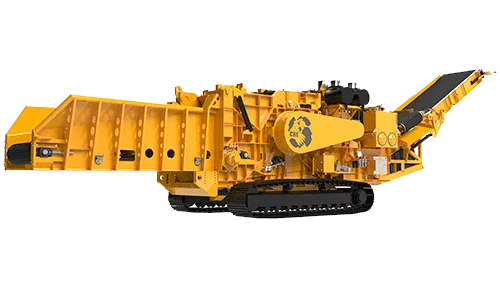

  • 6400CT Horizontal Grinder Thumbnail

    6400CT

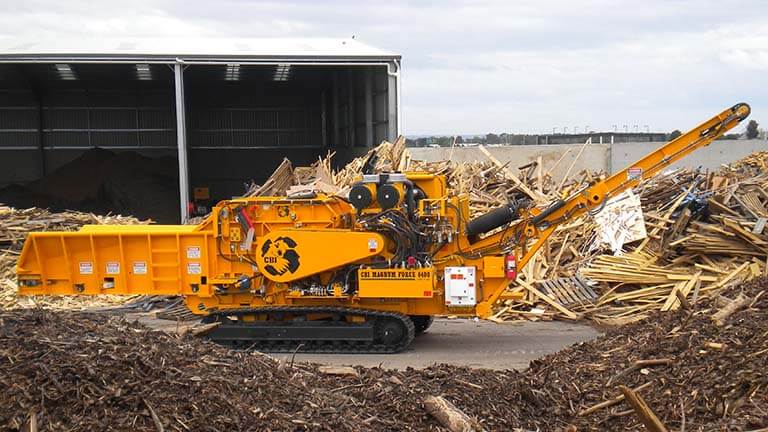

    The CBI Magnum Force 6400CT Horizontal Grinder is an extreme-duty machine engineered for resilience and high production when grinding contaminated demolition debris, railroad ties, whole trees, pallets, storm debris, shingles, logs, mulch, slash, and stumps. Built from a fully welded and line bored hog box, this yellow monster thrives more than any other horizontal grinder when processing high amounts of tough material.

    Specification Value
    Rotor Size Four rotor options available - Segmented drum, forged drum, 2-pocket chipper, 4-pocket chipper Four rotor options available - Segmented drum, forged drum, 2-pocket chipper, 4-pocket chipper
    Engine CAT C27; 1050hp engine (Option - CAT C32; 1200hp engine) CAT C27; 782kW (Option - CAT C32; 894kW engine)
    Weight 90,000lbs - 104,000lbs (depending on options) 40,823kg - 47,173kg (depending on options)
    Working Dimensions Width: 10’ 9.5” Length: 53' 2" Height: 15' 3.5" Width: 3.28m Length: 16.2m Height: 4.65m
    Transport Dimensions Width: 10’ 9.5” Length: 43’ 9” Height: 12’ Width: 3.28m Length: 13.33m Height: 3.65m
    Learn more
  • 5800BT Horizontal Wood Grinder

    5800BT

    No other horizontal wood grinder cures the headaches of load restrictions and permitting as much as the CBI Magnum Force 5800BT Portable Upswing Grinder. This portable horizontal grinder was developed to feature the same principles of the proven CBI 6800BT Grinder but is purpose-built for contractors dealing with transportation restrictions. Like CBI’s other horizontal grinders, the 5800BT never compromises strength or performance.

    Specification Value
    Rotor Size Width: 48” Diameter: 40” Shaft: 6” Width: 1.21m - Diameter: 1.01m - Shaft: .152m
    Engine CAT C18; 765hp CAT C18; 570kW
    Weight 63,000lbs - 69,000lbs (depending on options) 28,576kg - 31,297kg (depending on options)
    Working Dimensions Width: 8’ 4” Length: 48' 6" Height: 15' 4" Width: 2.54m Length: 14.77m Height: 4.67m
    Transport Dimensions Width: 8’ 4” Length: 38’ 11” Height: 12' Width: 2.54m Length: 11.86m Height: 3.65m
    Learn more
  • 5400BT Mobile Horizontal Grinder

    5400BT

    The CBI Magnum Force 5400BT is a next-generation horizontal grinder from CBI that allows owners to select from four different field-swappable rotors to accommodate changing materials and processing demands. This unique design provides the flexibility to process an exceptionally wide variety of materials and generate the products that your clients demand – all with a single machine. To further its unique design, the PT Tech hydraulic PTO and hydraulic engagement replaces the need for a clutch.

    Specification Value
    Rotor Size Width: 48" Diameter: 40" Width: 1.21m Diameter: 1.01m
    Engine CAT C18; 765hp CAT C18; 570kW
    Weight 70,000lbs - 76,000lbs (depending on options) 31,751kg - 34,473kg (depending on options)
    Working Dimensions Width: 8’ 4” Length: 49' 5" Height: 15' 10" Width: 2.54m Length: 15.05m Height: 4.82m
    Transport Dimensions Width: 8’ 4” Length: 39’ 11.5” Height: 12’ 3” Width: 2.54m Length: 12.1m Height: 3.65m
    Learn more
  • 5400SE Electric Horizontal Grinder

    5400SE-SA

    The CBI Magnum Force 5400SE-SA horizontal grinder is a special application unit that fits the need of a customer looking for a smaller production rate than our standard 5400SE, with more affordability and the same durability. Producing at $1.00 a ton, the 5400SE-SA is perfect for grinding pallets, storm debris, slash, dunnage, regrind, or yard waste.

    Specification Value
    Rotor Size Width: 48” Diameter: 40” Shaft: 6” Width: 1.21m - Diameter: 1.01m Shaft: .152m
    Engine 400hp or 500hp crusher duty motor 298kW or 372kW crusher duty motor
    Weight 45,500lbs 20,638kg
    Working Dimensions Width: 9’ 1” Length: 49' 7" Height: 15' 1" Width: 2.76m Length: 15.10m Height: 4.77m
    Transport Dimensions Width: 9’ 1” Length: 49’ 7” Height: 13’ 6” Width: 2.76m Length: 15.10m Height: 4.11m
    Learn more
