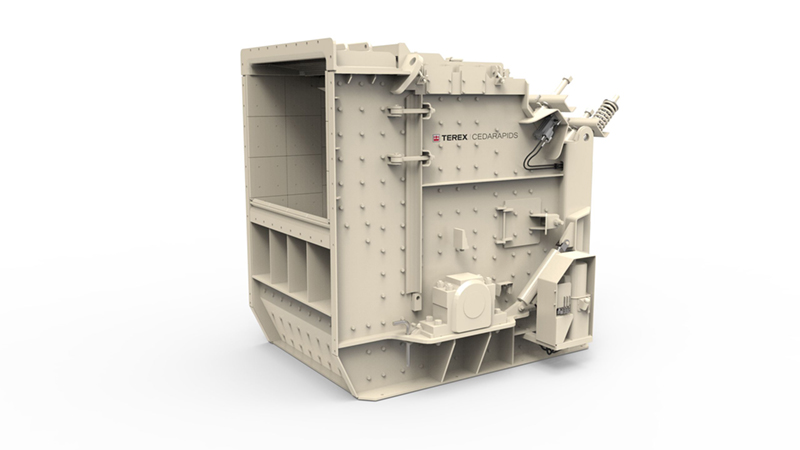

IP1516
Static Horizontal Shaft Impact Crusher
With its large feed opening, large capacity and high reduction ratio, the Terex® Cedarapids 1516 horizontal shaft impactor delivers extraordinary crushing power, plus high production volume.
Rapid blowbar and quick change breaker plates allow for better control of product size.
Three inspection doors and a removable top facilitate easy breaker plate access. The patented quick turn wedge system permits fast and simple bar rotation and bar replacement.
Rapid blowbar and quick change breaker plates allow for better control of product size.
Three inspection doors and a removable top facilitate easy breaker plate access. The patented quick turn wedge system permits fast and simple bar rotation and bar replacement.
| Specification | Value |
|---|---|
| Weight | 55,700 lbs / 25,260 kg |
| Capacity | 600-800 tph / 545-725 mtph |
| Max Feed Size | 34" / 865 mm |
| Rotor Dimensions | 61"x64" / 1550x1625 mm |
| Motor Size | 600 hp / 450 kW |
