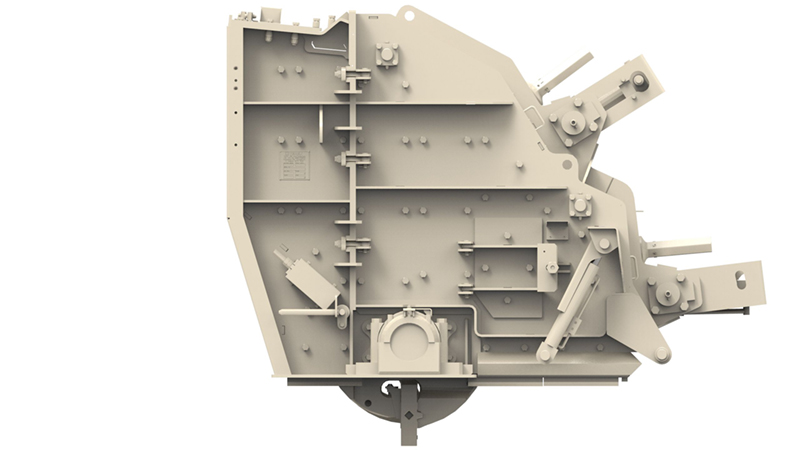

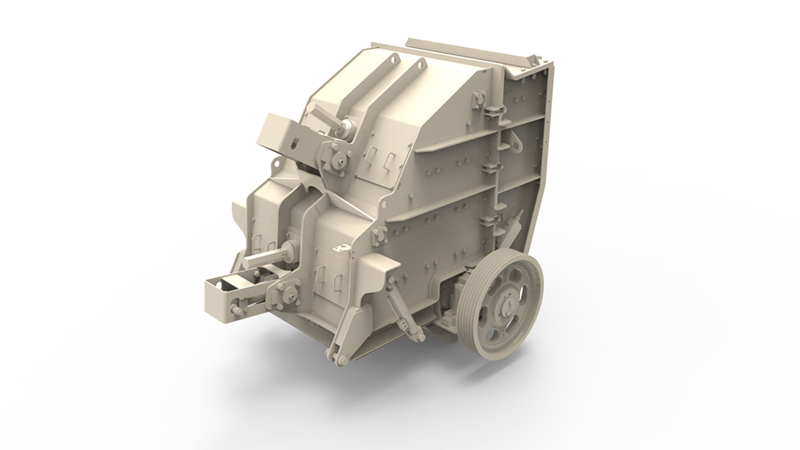

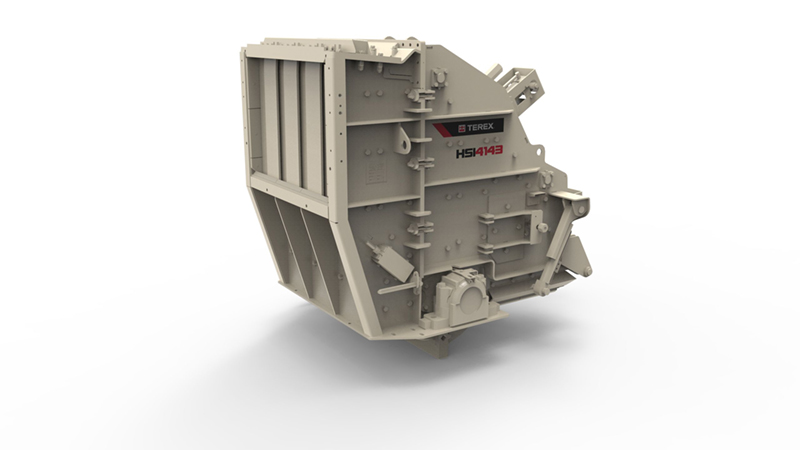

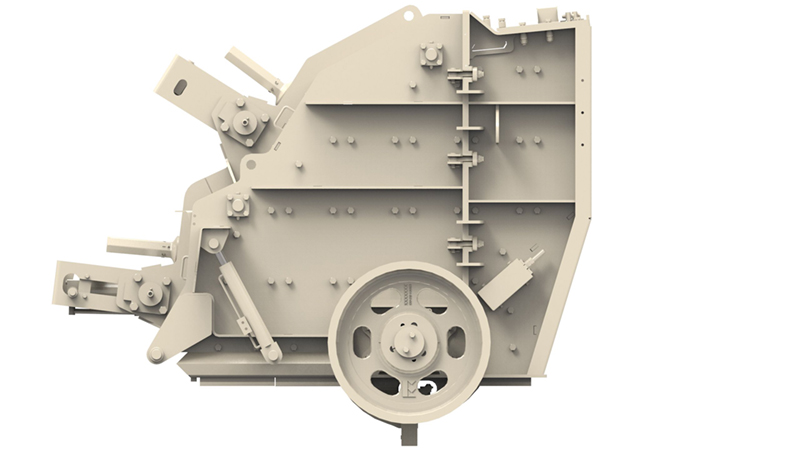

TI4143
Horizontal Shaft Impactor
With its hydraulic assist apron adjustment for quick setting changes, the TI4143 horizontal shaft impactor is a highly cost effective crusher that is easy to operate and easy to maintain.
There are four inspection doors plus a hinged side door for inspection access to the rotor, blowbars and aprons. The chamber hydraulically opens for general maintenance and for turning or replacing the blowbars. The quick-release wedge-lock system makes changing blowbars a breeze.
An optional blowbar jib crane is available for added flexibility and convenience.
There are four inspection doors plus a hinged side door for inspection access to the rotor, blowbars and aprons. The chamber hydraulically opens for general maintenance and for turning or replacing the blowbars. The quick-release wedge-lock system makes changing blowbars a breeze.
An optional blowbar jib crane is available for added flexibility and convenience.
| Specification | Value |
|---|---|
| Weight | 21,915 lbs / 9.94 kg |
| Capacity | 90-300 tph / 80-270 mtph |
| Max Feed Size | 19" cubed rock / 4”x18”x36” recycle slab / 480 mm cubed rock / 100x450x900 mm recycle slab |
| Rotor Dimensions | 41"x43" / 1035x1100 mm |
| Motor Size | 180 hp / 130 kW |
Image and Video Gallery
Related Products
-
![IP1316_thumbnail]()
-
![IP1516_thumbnail]()

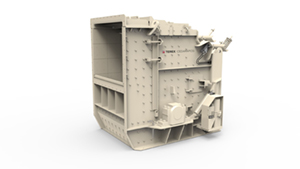

IP1516
