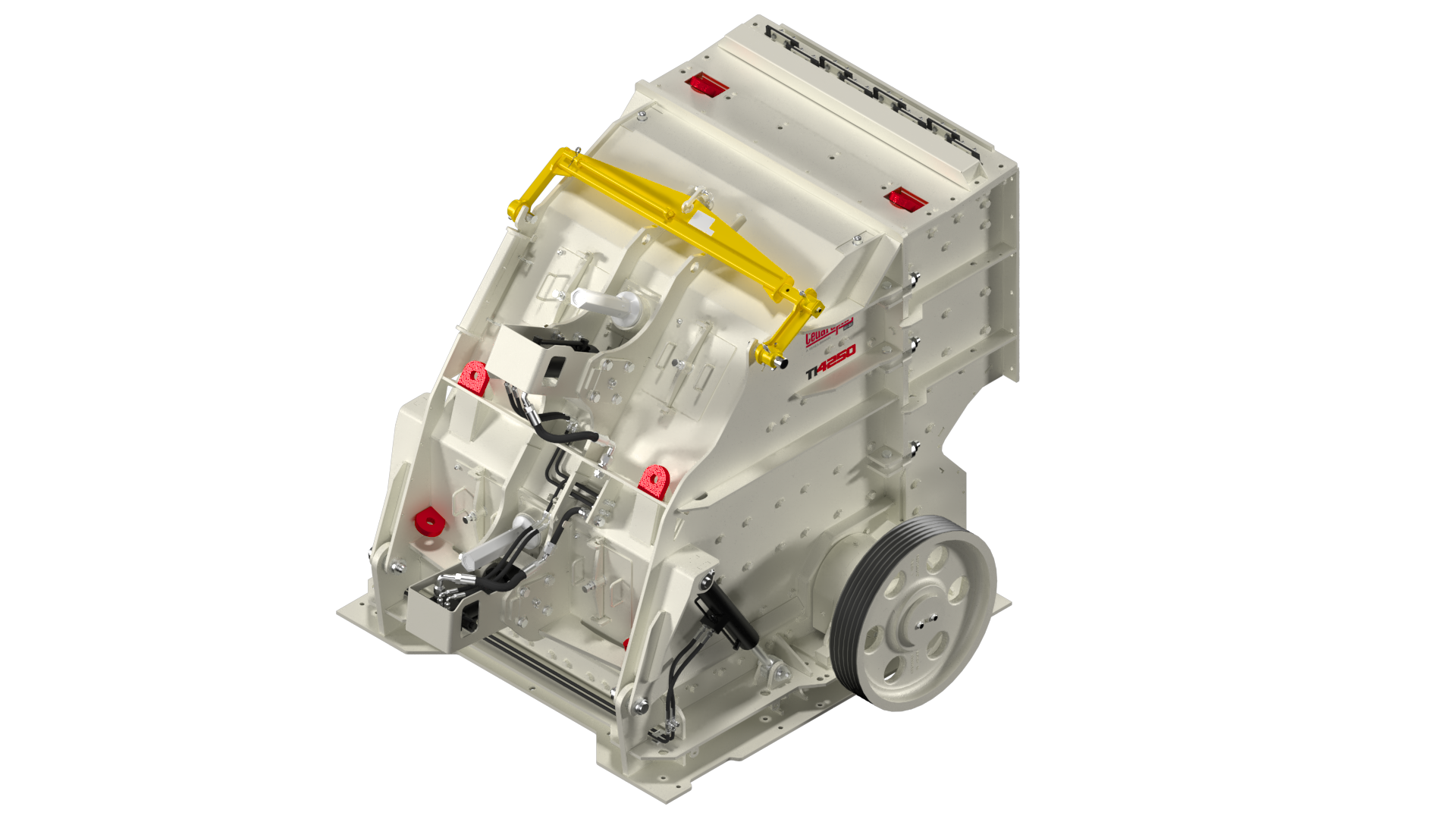

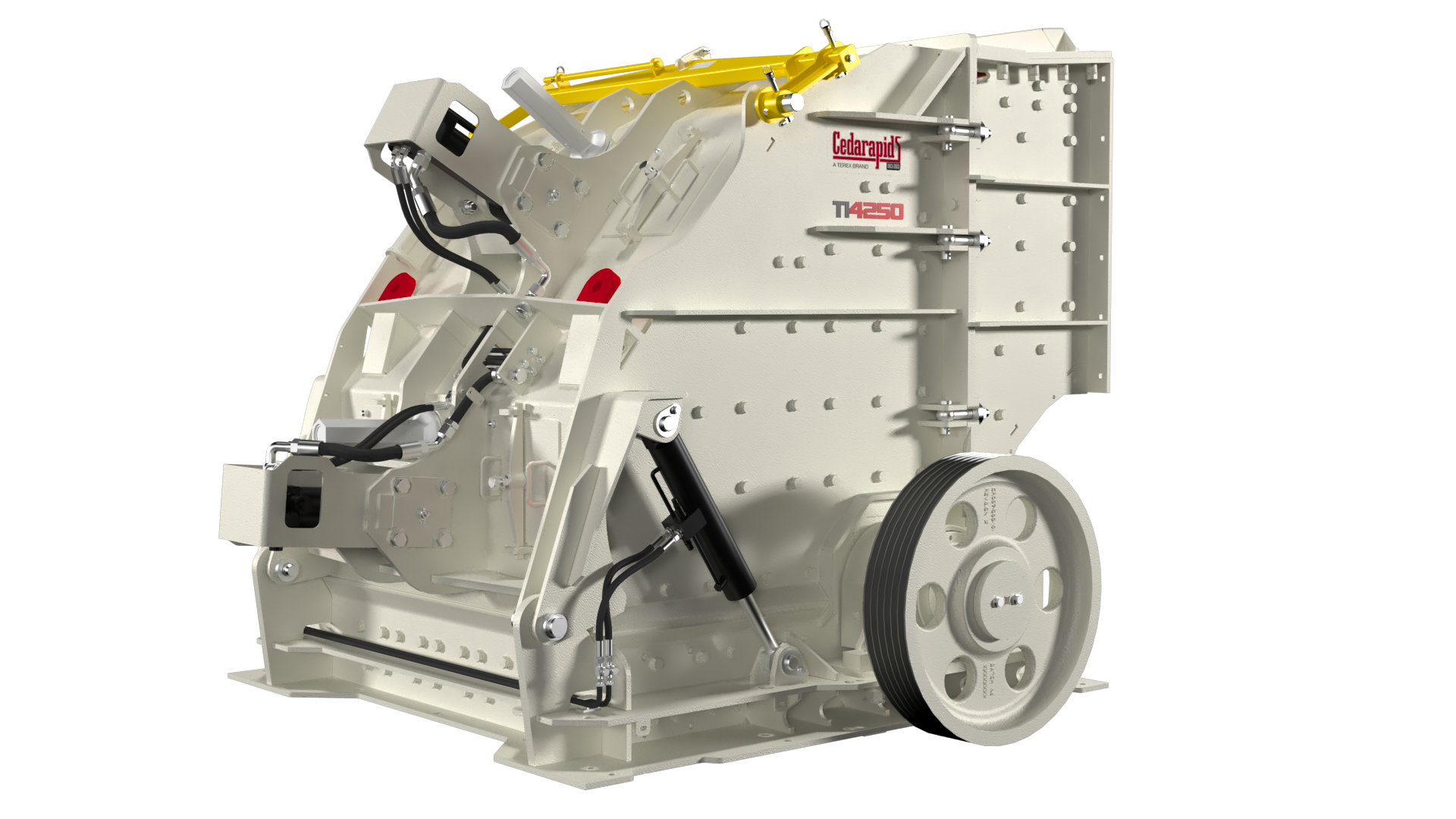

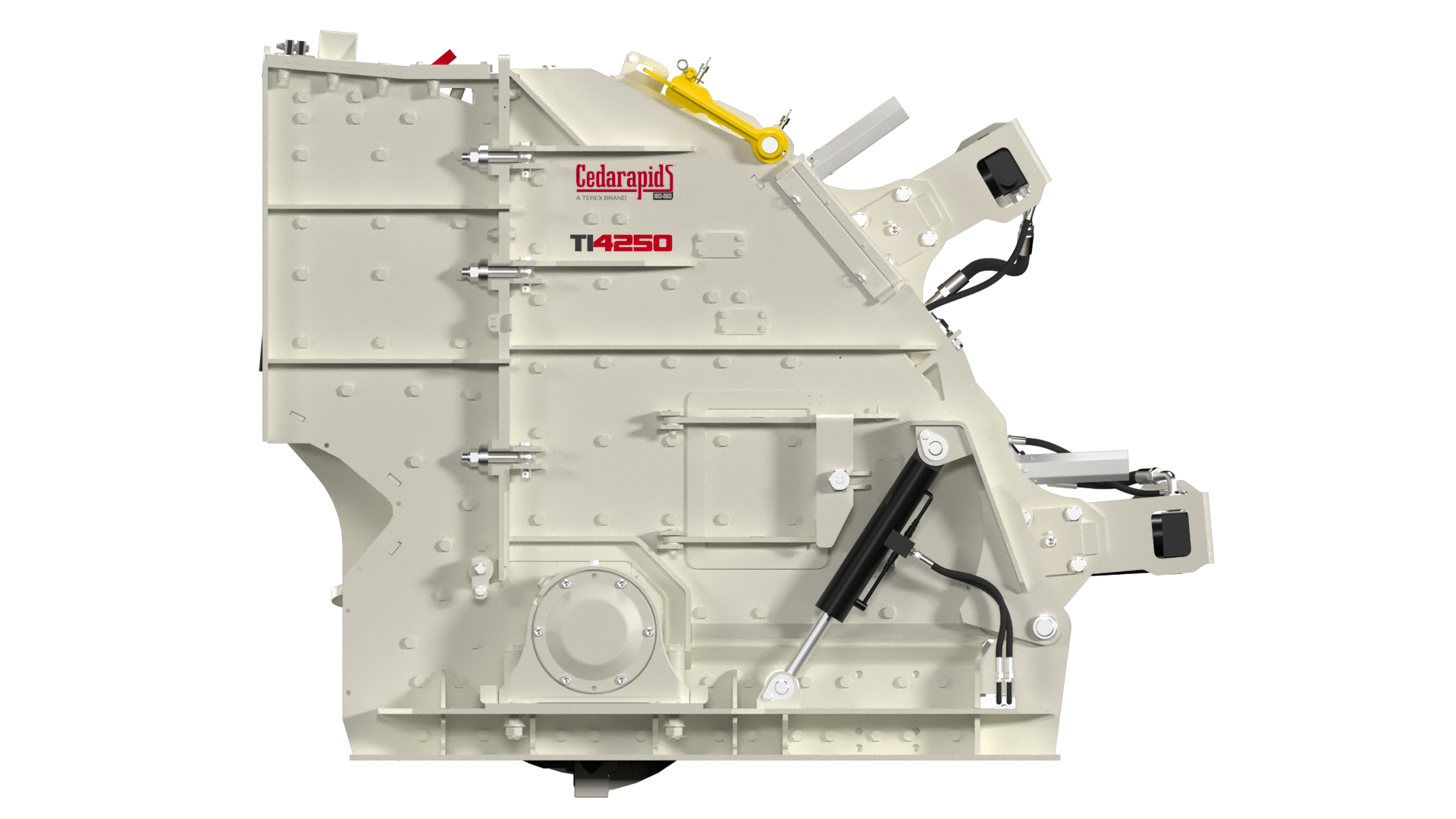

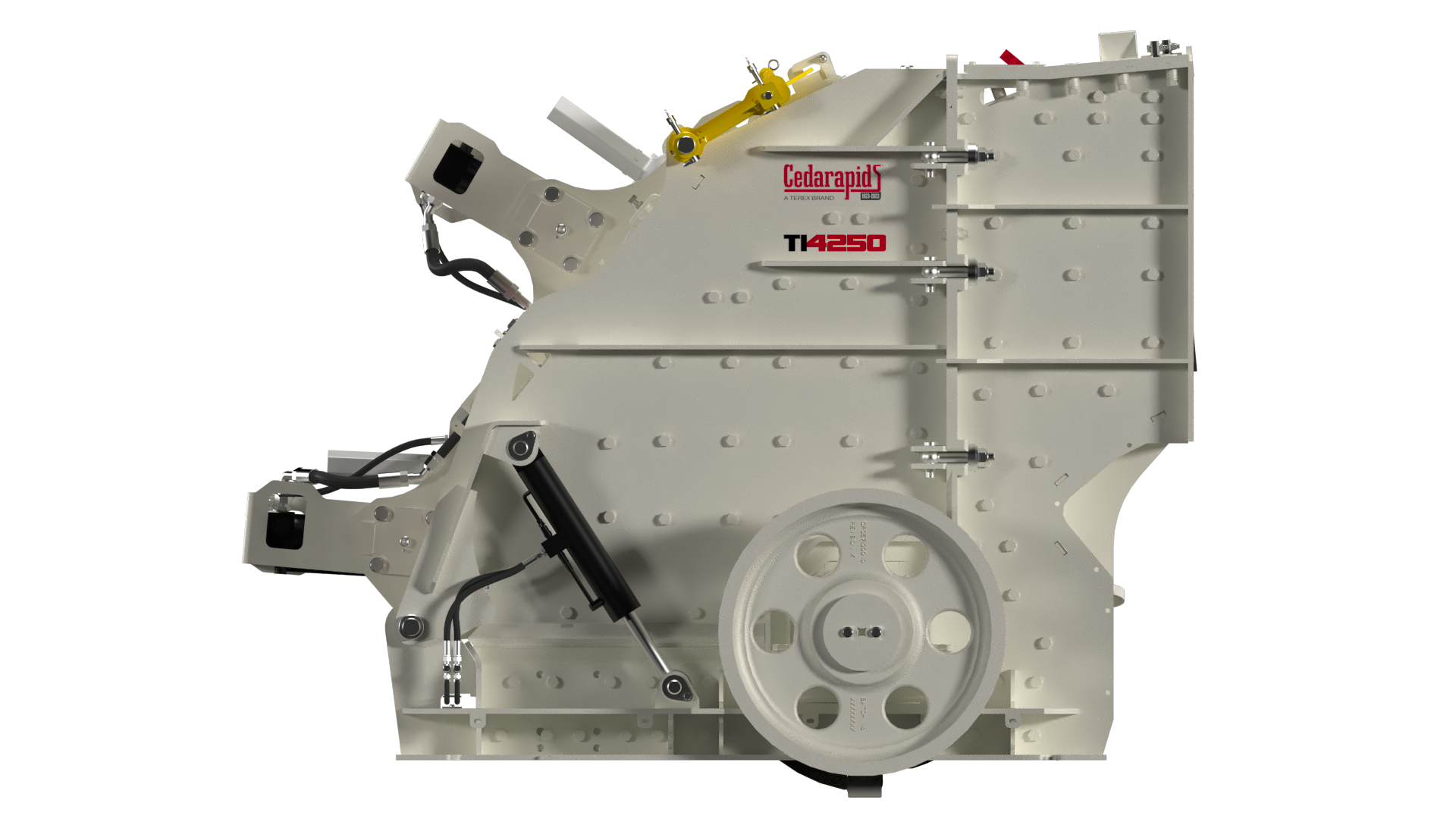

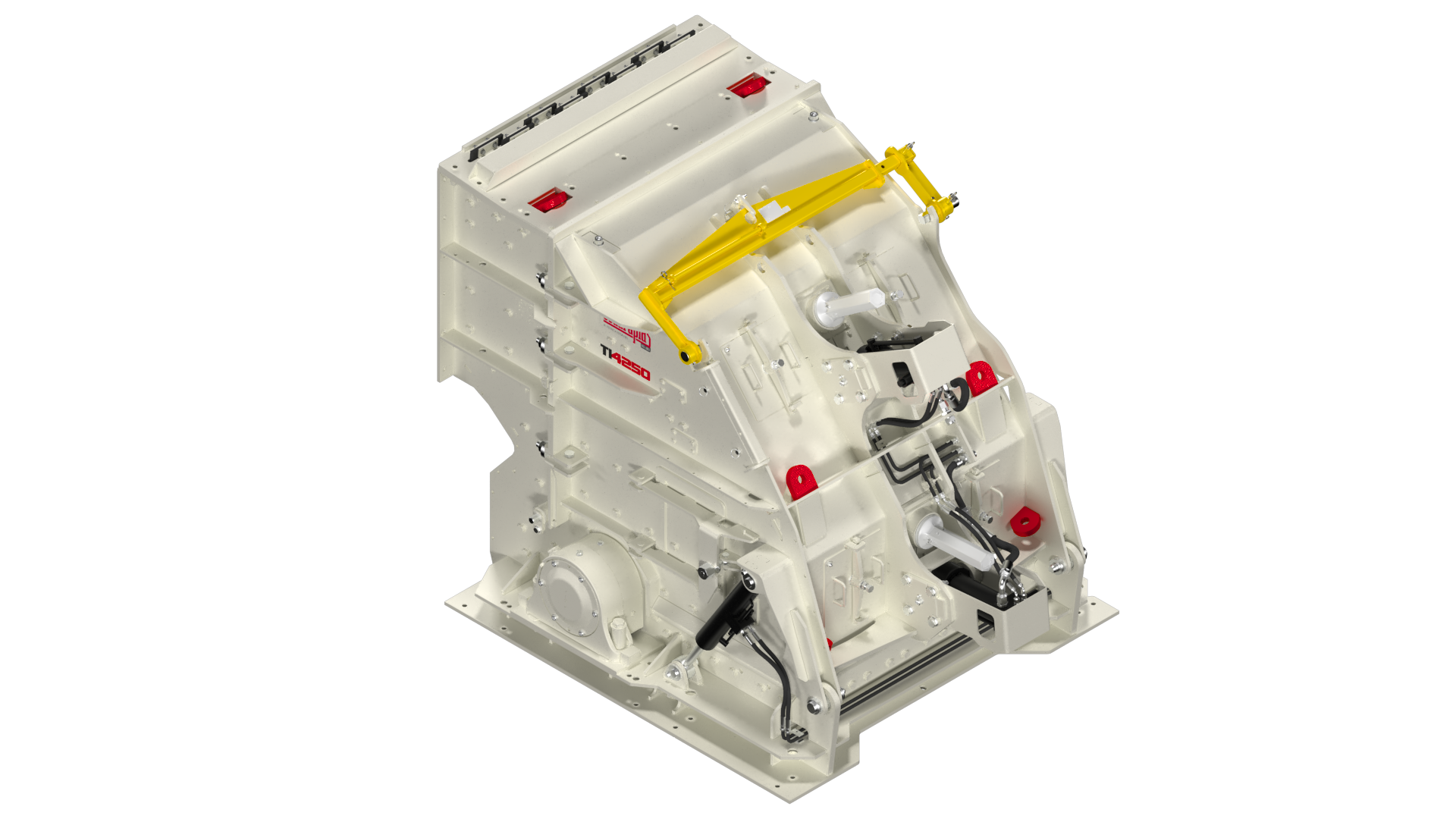

TI4250
Horizontal Shaft Impactor
The TI4250 Horizontal Shaft Impactor offers hydraulic-assist apron
adjustments for quick and easy setting changes, making this a highly efficient
crusher that is easy to operate and maintain.
With four inspection doors and a hinged side door, inspection access to the
rotor, blowbars, and aprons are convenient. The hydraulic chamber opening
streamlines maintenance and makes blowbar turning or replacement hassle-free. The
quick-release wedge-lock system ensures fast, easy blowbar replacement with minimal
downtime.
Our innovative blowbar extraction cradle is included as a standard feature, safely mounted onboard for effortless and secure removal.
| Specification | Value |
|---|---|
| Weight | 27,397 lbs / 12,453 kg |
| Capacity | 529 tph / 480 mtph |
| Max Feed Size | 18" cubed rock / 31”x20”x10” concrete slab / 450 mm cubed rock / 800x500x250 mm concrete slab |
| Rotor Dimensions | 42"x50" / 1065 x 1270 mm |
| Motor Size | 240 hp / 180 kW |
