TC-80-T
The TC-80-T features a conveyor length of 23.5m and a capacity of up to 500 tph

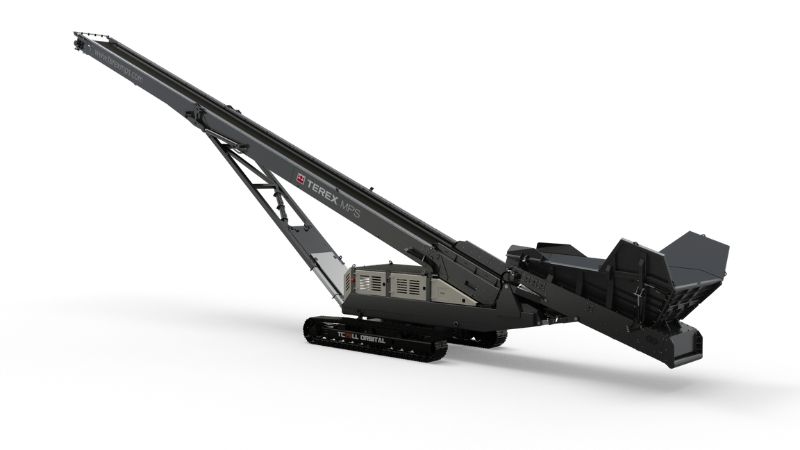

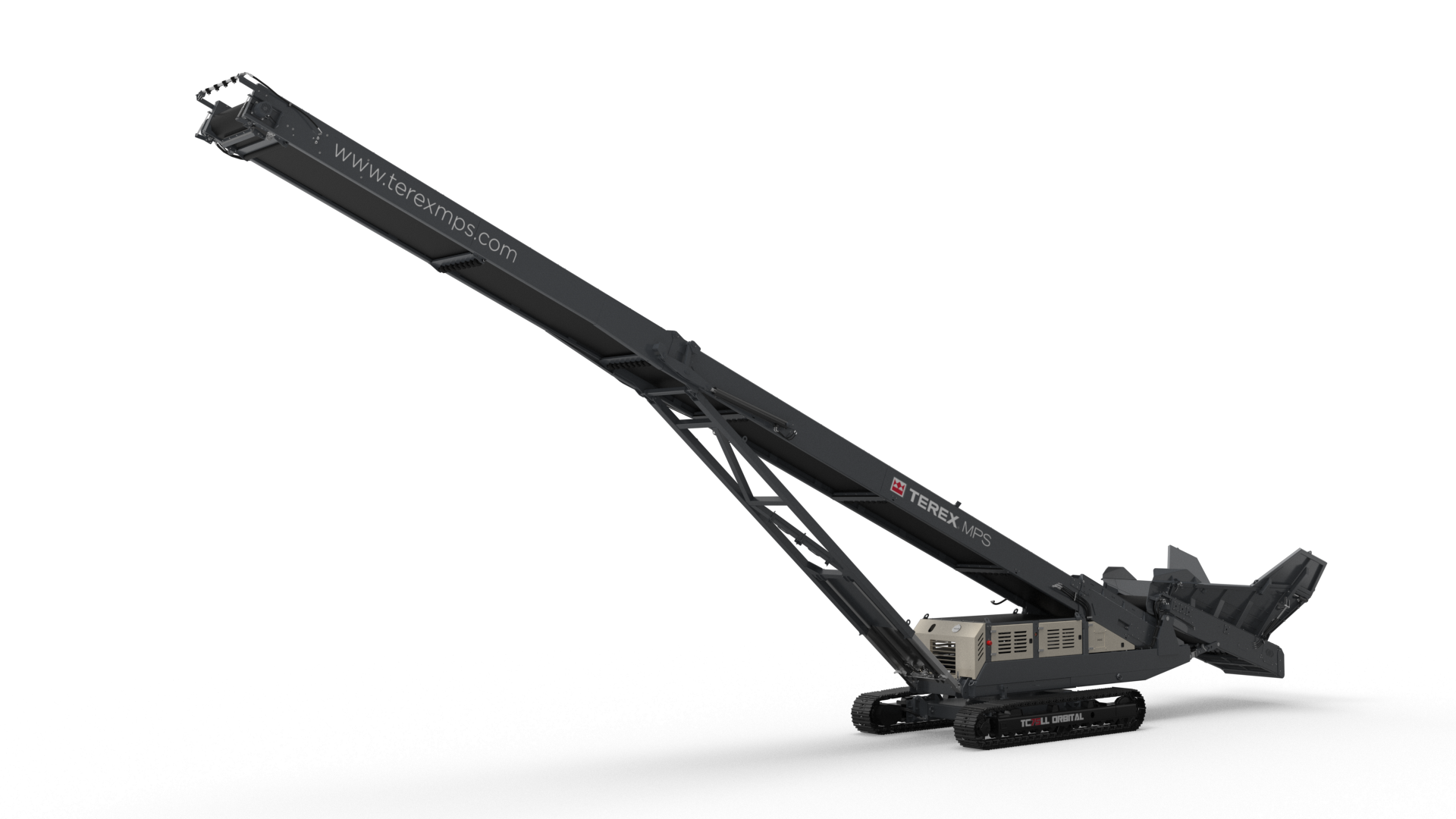

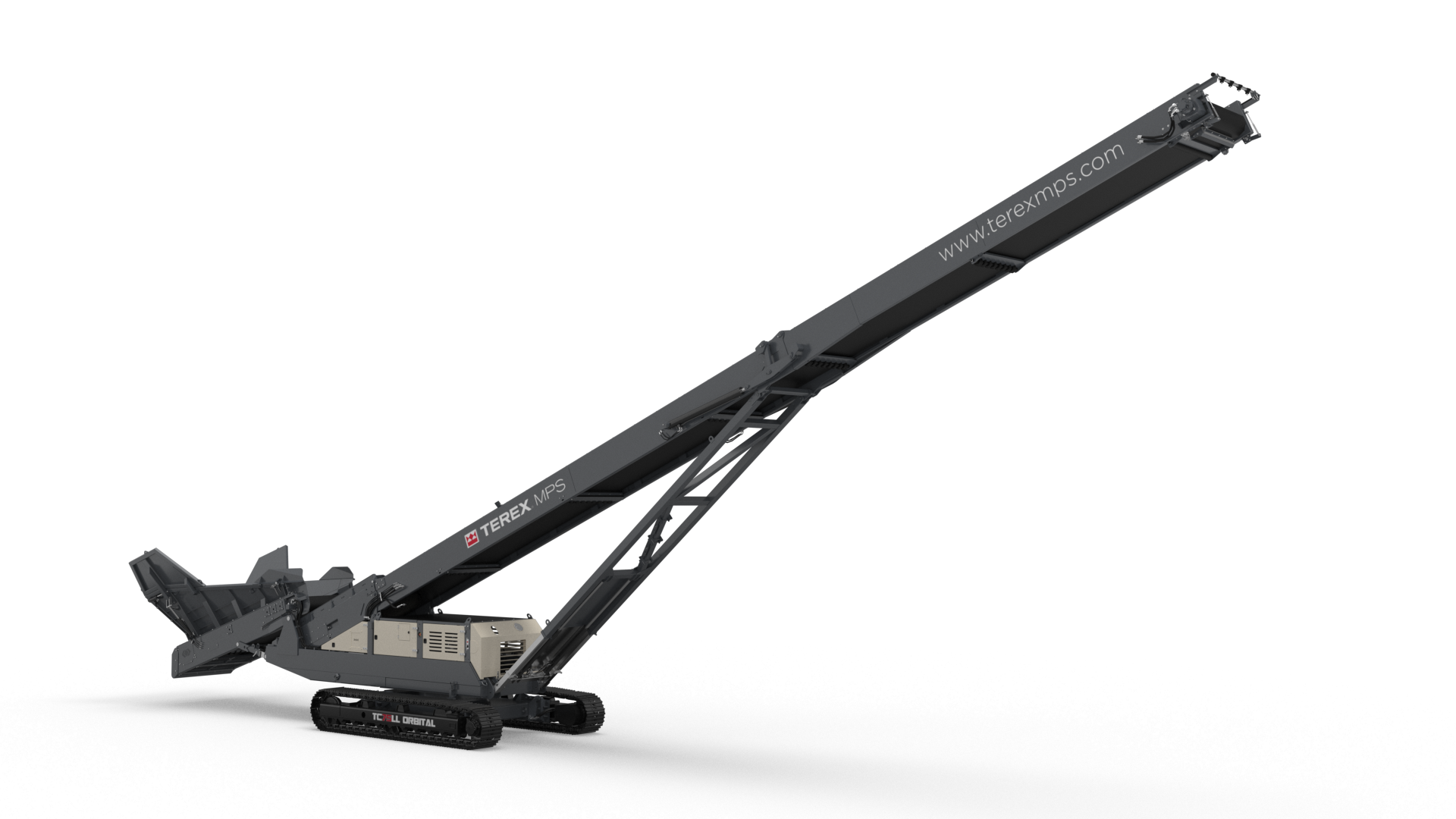

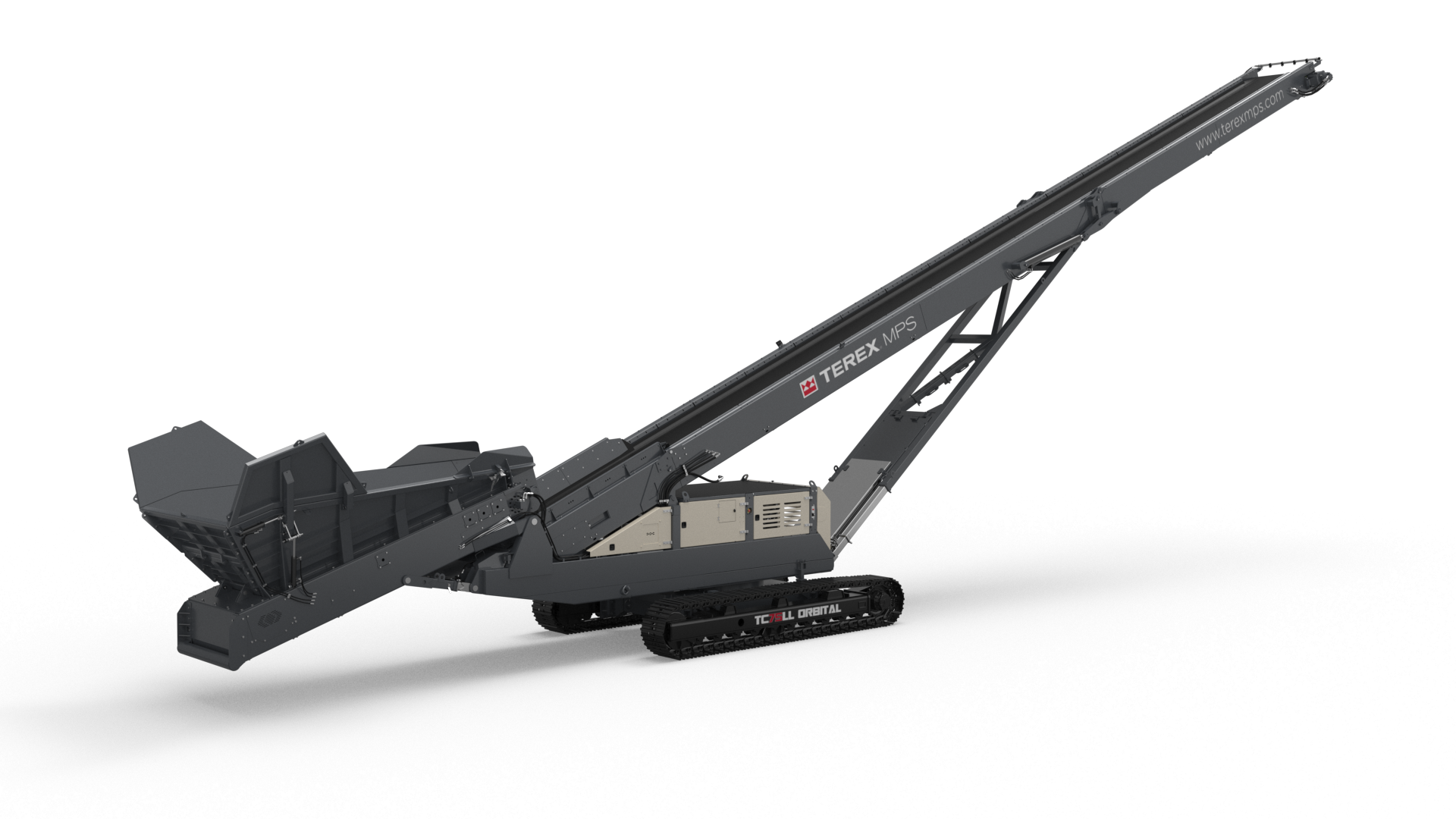

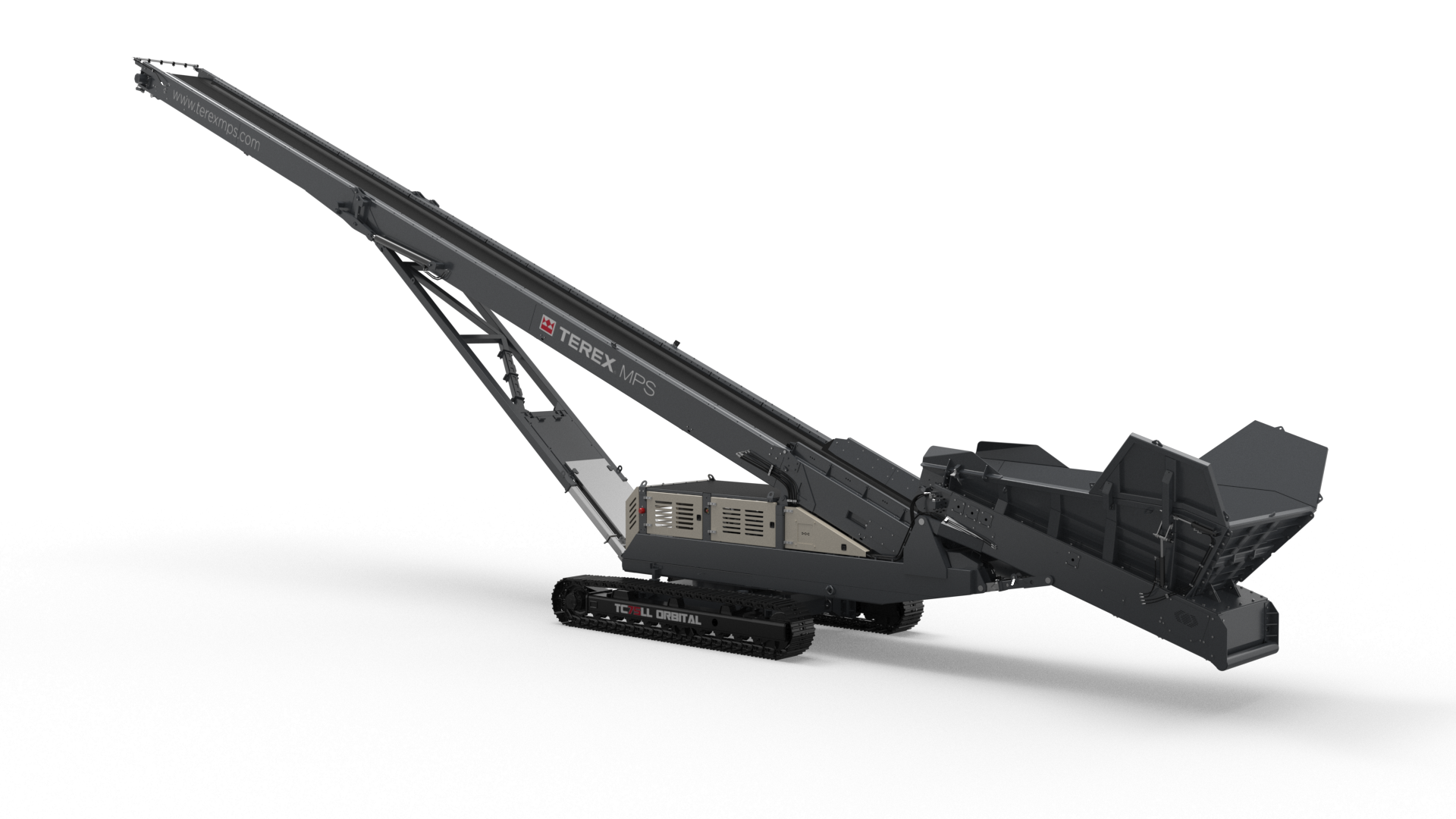

TC-75-LL Orbital
Low Level Orbital Feeder
The TC-75-LL Orbital Low Level Orbital Feeder Conveyor enables operators to discharge directly from wheel loaders and excavators at a much lower feed-in height compared to alternative hopper feeders, eliminating the need for double material handling on site. Additionally, the TC-75-LL Orbital includes a 75-foot long stacker for efficient stockpiling. Its unique orbital configuration allows the conveyor to rotate independently from the undercarriage, enhancing on-site efficiency and coordination.
| Specification | Value |
|---|---|
| Output Potential | 661 US tph / 600 tph |
| Transport Dimensions | Width: 10'6" Length: 64'8" Height: 11'11" / Width: 3.2m Length: 19.7m Height: 3.63m |
| Belt Width | 48" / 1.2m |
| Conveyor Length | 73' 10" / 22.5m |
| Max Discharge Height | 34' 6" / 10.7m |
Image and Video Gallery
Related Products
-
![80FT-Tracked-Conveyor-MPS-TC80-T_2_thumbnail]()
-
![]()
TC-75-LL Orbital
The TC-75-LL Orbital Low Level Orbital Feeder Conveyor enables operators to discharge directly from wheel loaders and excavators at a much lower feed-in height compared to alternative hopper feeders, eliminatin...
-
![75FT Low Level Feeder_2_thumbnail]()
TC-75-LL
The TC-75-LL features a conveyor length of 22.6m and a capacity of up to 600 tph and features a low level feeder hopper
-
![75FT High Level Feeder_2_thumbnail]()
TC-75-HF
The TC-75-HF features a conveyor length of 22.6m and a capacity of up to 600 tph with a built in high capacity hopper feeder
-
![TCS 65FT Tracked Conveyor_2_thumbnail]()
TC-65-T
The TC-65-T features a conveyor length of 20m and a capacity of up to 500 tph
-
![]()

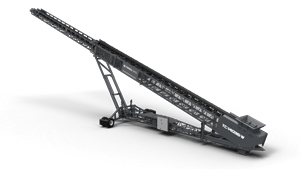

TC-14036-W
