Processing Dredged Sand and Gravel

Project Summary

Designed for the processing of dredged sand and gravel with organics, the Terex Washing Systems solution at McGuire’s Excavating & Trucking Inc. consists of an AggreSand™ 206 and the AggreScrub™ 150, Industry leading products first launched in 2014, along with a H12 Feeder. These products seamlessly combine to form a washing and scrubbing plant to produce 3 clean sized aggregates and 1 or 2 sands. A major driver for the selection of these products was the increased demand for high-spec clean aggregates as well as the need for flexibility to meet spec across all products. Through pre-sale customer visits, understanding the sand production levels that were required and close communication through the entire process, Terex Washing Systems designed, engineered and installed this complete wash plant.

Log Washer  |  Wash Plant   Feeder
Sand And Aggregate Wash Plant


Featured Products

World Class Support

Terex Washing Systems (TWS) and their local territory dealer, Powerscreen Crushing and Screening, Terex Washing Systems Sand Washing Plantworked very closely with McGuire’s Excavating & Trucking Inc. to provide a solution suited to their needs and desired end products.  The solution was specified following several site visits, plant proposals and customer specific design modifications, as well as samples of the feed material being sent for further testing at Terex Washing Systems Headquarters in Dungannon, Northern Ireland. Commenting on the support, Ryan McGuire commented, ‘The support we got directly from TWS and from our dealer has been absolutely amazing.’

Whilst Terex Washing Systems is headquartered in Northern Ireland, they also have a full facility and team based in Louisville, Kentucky, to easily serve the USA customers alongside their dealer network. The service and support, along with their distributor, is typical of what customers can expect when purchasing a Terex Washing Systems product. Terex Washing Systems offer their expertise and highly skilled team of engineers to assist and guide the customer from the initial conception to final installation.

Seamlessly Combined

Designed for the processing of dredged sand and gravel with organics, the Terex Washing Systems solution at McGuire’s Excavating & Trucking Inc. consists of an AggreSand™ 206 and the AggreScrub™ 150, Industry leading products first launched in 2014. Both products seamlessly combine to form a washing and scrubbing plant to produce 3 clean sized aggregates and 1 or 2 sands. Ryan McGuire commented ‘With this new washing solution we have so much flexibility, we can produce  2 sands or 1 sand, and we can adjust spec by blending more fines into the sand, or less fines, based on what specification of sand our customer needs. We also have the capability to make 3 washed aggregates at once, which just makes it a really great plant and meets all of our expectations and more’.

Barry McMenamin, Global Sales Director, TWS commented: “The McGuire’s Excavating & Trucking Inc. installation represents our end to end solution offering and demonstrates how our equipment can be seamlessly combined to provide a solution tailored to the customers’ needs, so to consistently deliver premium grade sand and aggregates".

Improved Product Quality

Stone Scrubbing System

Ryan McGuire went on to explain that the increased demand for high-spec clean aggregates was the major driver in selection of the Terex Washing Systems equipment. Through pre-sale customer visits, understanding the sand production levels that were required, the AggreSand™ 206 was the obvious choice of sand washing equipment. With it’s large 20x6 bottom deck, sand production could be maximized while offering flexibility to meet spec across all products.

Through further feed material sampling it became apparent that, to guarantee the aggregate cleanliness, the material would need scrubbed. The AggreScrub™ 150, with its high performance twin shaft logwasher and integrated post rinsing and sizing screen met all the needs in one compact chassis.

The AggreSand™ concept pre-wired & pre-plumbed with quick installation was particularly intriguing to McGuires Excavating & Trucking Inc. far removed from their previous wash plant. The material to be processed required extra scrubbing, to ensure the desired product was in spec, therefore the AggreScrub™ 150 log washer system was added as part of this overall solution. It offers increased production capacity and increased levels of access. The seamless combination of the AggreSand™ 206 and AggreScrub™ provided the extra required capacity.

Reaching New Heights

The AggreSand™ 206 plant consists of a H12 feed system which is fed by a wheel loader. The static hopper is fitted with a 14’ wide hydraulic tipping grid, equipped with 4” grid bars to scalp off any oversize material in the feed. Both the feeder and grid are powered by the on board 37kW electric hydraulic power-pack. The material transfers from the feeder to the main rinsing screen via a 23m twin-drive feed conveyor with an integrated rubber lined washbox. Here the material is pre-soaked using a high volume spraybar system which fluidizes material presenting it uniformly onto the 20 x 6 inclined rinsing screen.

2 Decks or 3 Decks

The rinsing screen on the AggreSand™ 206 is available as a 3-deck or 2-deck variant. At McGuire’s Excavating & Trucking Inc. the two deck version is fitted with polyurethane modular media on both decks. Each deck utilizes ten individually controlled isolated spray bars to efficiently rinse the aggregate and sand product. From the top deck a washed ‘septic stone’, + 1 ½”, aggregate is sent to stockpile for future crushing and processing. The rinsed material between ¼” – 1 ½” from the mid-size deck is fed to the AggreScrub™ 150 for scrubbing and removal of clay conglomerates.

The 2-Grades of sand are produced through a split bottom deck system, where material is washed through as separate products into a split sump tank, where each sand is then pumped to a dedicated cyclone before finishing on a 14x6 high frequency dewatering screen making a high quality in spec concrete sand, with the ability to switch to make a variety of sands.

Abrasive Scrubbing Action

The AggreScrub™ 150 combines a combines a high performance twin shaft logwasher, trash screen, sump tank and integrated post rinsing & sizing on one compact chassis.

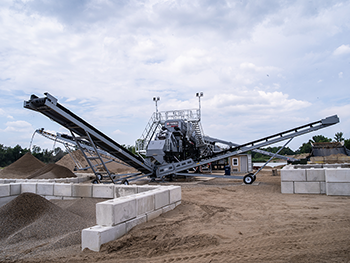

AggreScrub Log Washer System

The AggreScrub™ 150 logwasher consists of a 26ft hull, housing two rotating shafts fitted with abrasion resistant blades and paddles. The blades and paddles convey the material from the feed end of the scrub to the discharge end. As the material travels through the hull the abrasive action of the aggregate colliding and passing through other aggregate (stone on stone) scrubs it clean and breaks up any clay conglomerates which become liberated and then float off through the back of the AggreScrub™. The addition of clean water encourages any organics (such as roots) to flow with the suspended fines and clays out of the hull and on for dewatering over the AggreScrub’s™ 6 x 2 trash screen.

Scrubbed aggregate exits the main discharge of the AggreScrub™ 150 onto a 12x5 2-deck part rinsing screen. This screen is fitted with polyurethane modular media to produce three aggregates standard pea gravels­­, specialized pea gravel and oversize (number 8). The initial section of this screen is fitted with spray bars to rinse off any sand / grit residues produced during the scrubbing process.

A key feature of the AggreScrub™ 150 is the onboard sump tank and centrifugal pump, where the underflow from the trash screen, and the underflow from the part rinsing screen are captured in this sump tank, then this dirty water is pumped back to the AggreSand™ 206 sand plant for maximum recovery of sand and efficient use of water.

Cutting Edge Control System

The on-board HMI control system for this AggreSand™ 206 & AggreScrub™ 150 wash plant is another example of the seamless integration possible with these two plants. Each plant has a dedicated control panel, which is prewired and factory tested. However, when combined the entire plant can be operated and monitored from one single HMI.

For McGuires Excavating & Trucking Inc. the additional feature of having a second HMI located in plant side operator cabin, allows the operator to monitor plant parameters such as water flow rate and pressure, cyclone pressure and motor running information from one location.

Ryan went on to say: “It has given us a great deal of flexibility in the market.  We started here with a much smaller washing plant and after looking at the market and the changes, we opted for this solution which has allowed for more flexibility to better serve the market and demands. It’s modular in design, so we can change the modules and we also have the ability to add a larger sand plant if the market changes.  Moreover, on the back of that we have built a strong relationship with our local dealer, Powerscreen Crushing and Screening, as well as with Terex Washing Systems.  From start to finish, from the product coming in, the assembly of the build, commissioning, everything has been flawless.’
