TC 5036 Conveyor

Aggregate Conveyor

Terex Aggregate Conveyor

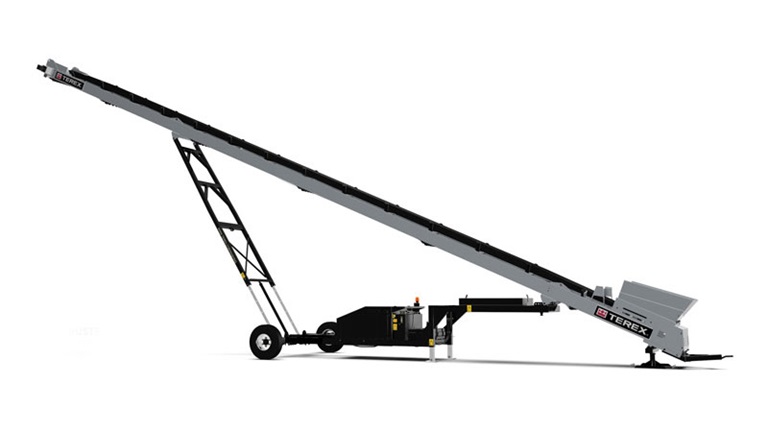

The Terex TC 5036 Aggregate Conveyor is an integral part of the Terex Washing Systems product range and are constructed to the same high engineering specification. It’s portability and versatility allows it to work in confined spaces and combinations of one, two or three with TWS processing plants.

The TC 5036 has a working length of close to 50 feet with a belt width of 36 inches.

FEATURES AND BENEFITS
• Capable of handling up to 300tph
• Mobile unit with towbar and road wheels
• Large stockpile capacity
• Manual hand pump for height adjustment
• Detachable pivot stand and towbar

Download the brochure for more information on this conveyor.
Specification Value
Machine Length 46' 11" / 14.32m
Transport Length 37' 1" / 11.31m
Working Height 22' 1" / 6.72m
Weight 4850lb / 2200kg
Belt Width 914mm / 36"
