5400BT


The CBI Magnum Force 5400BT is a next-generation industrial wood chipper from CBI that allows owners to select from four different field-swappable rotors to accommodate changing materials and processing demands. This unique design provides the flexibility to process an exceptionally wide variety of materials and generate the products that your clients demand – all with a single machine. To further its unique design, the PT Tech hydraulic PTO and hydraulic engagement replaces the need for a clutch.
Request a Quote
Request Parts

Technical Documentation

Measurements

Transport Width 8 ft 80 in 2 m 60 cm
Transport Length 40 ft 10 in 12 m 20 cm
Top Feed Wheel 30in diameter x 46 1/4in. wide 762mm diameter x 1174mm wide
Chipper Shaft 6 ft 1 m 80 cm
Transport Height 12 ft 10 in 3 m 65 cm
Working Length 49 ft 50 in 15 m 5 cm
Working Width 8 ft 80 in 2 m 68 cm
Chip Size Range 0.701in - 1.18in 18mm-30mm
Rotor Four options - Segmented drum, forged drum, 2-pocket chipper, 4-pocket chipper, Width 48" Diameter 40" Shaft 6" Four options - Segmented drum, forged drum, 2-pocket chipper, 4-pocket chipper, Width 48" Diameter 40" Shaft 6"
Working Height
Infeed Width 4 ft 1 m 20 cm

Product Details

Gear Box PT Tech PTT-552 PT Tech PTT-552
Fuel Tank Capacity 350 Gallons 1591 L
Hydraulic Tank Capacity 60 Gallons 272 L
Feed Options Heavy Duty Apron Chain or Drag Chain Heavy Duty Apron Chain or Drag Chain
Tracks Triple Grouser, 19 1/2" Wide Triple Grouser, 495mm Wide
Weight 70,000lbs - 76,000lbs (depending on options) 31,751kg - 34,473kg (depending on options)

Power

Engine Scania DC16, Tier IV Final/Stage V, 770HP / CAT C18, Tier IV Final, 755HP / CAT C18, Tier II, 765HP (Export Only) Scania DC16, Tier IV Final/Stage V, 770HP / CAT C18, Tier IV Final, 755HP / CAT C18, Tier II, 765HP (Export Only)

Downloads

Others

.pdf 5400BT Industrial Wood Chipper Brochure
5400BT Industrial Wood Chipper Brochure

Related products

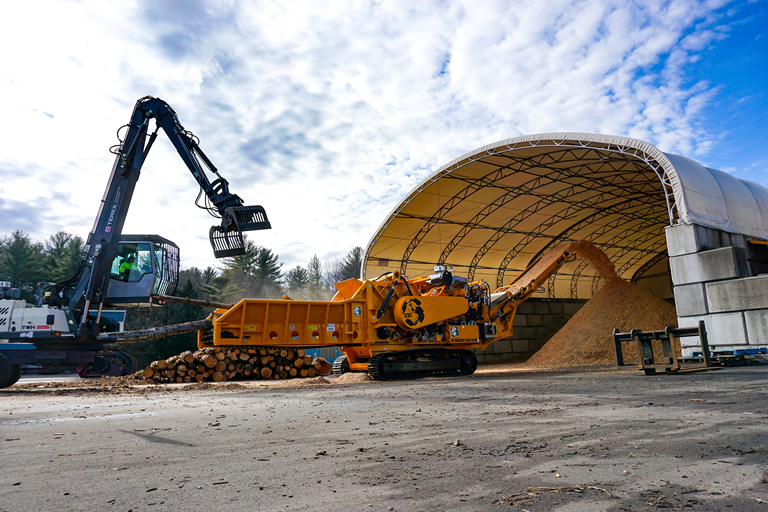

5400BT Mobile Horizontal Grinder
