Working Dimensions

Working Length 49 ft 50 in 15 m
Working Height 15 ft 10 in 4 m 80 cm
Working Width 8 ft 40 in 2 m 50 cm

Productivity

Hydraulic Tank Capacity 60 Gallons 227 L
Fuel Tank Capacity 350 Gallons 1.325L

Transport Dimensions

Transport Height 12 ft 10 in 3 m 70 cm
Transport Length 40 ft 10 in 12 m
Transport Width 8 ft 80 in 2 m 50 cm

Product Details

Weight 70,000lbs - 76,000lbs (depending on options) 31,751kg - 34,473kg (depending on options)
Rotor Size Four options - Segmented drum, forged drum, 2-pocket chipper, 4-pocket chipper, Width: 48" Diameter: 40" Shaft: 6" Four options - Segmented drum, forged drum, 2-pocket chipper, 4-pocket chipper, Width: 48" Diameter: 40" Shaft: 6"
Engine Scania DC16, Tier IV Final/Stage V, 770HP / CAT C18, Tier IV Final, 755HP / CAT C18, Tier II, 765HP (Export Only) Scania DC16, Tier IV Final/Stage V, 770HP / CAT C18, Tier IV Final, 755HP / CAT C18, Tier II, 765HP (Export Only)

Power

Gear Box PT Tech PTT-552 PT Tech PTT-552

Measurements

Discharge Width 4 ft 1 m 20 cm
Infeed Width 4 ft 1 m 20 cm

Downloads

Others

.pdf 5400BT Horizontal Grinder Brochure
5400BT Horizontal Grinder Brochure

Related products

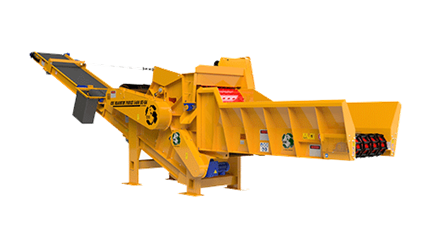

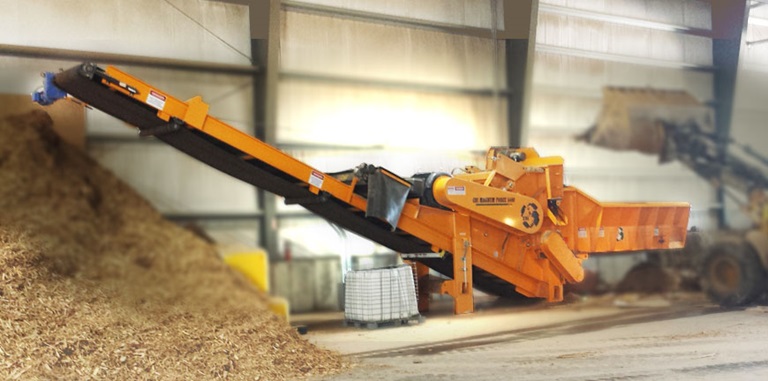

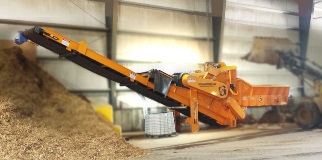

5400SE Electric Horizontal Grinder

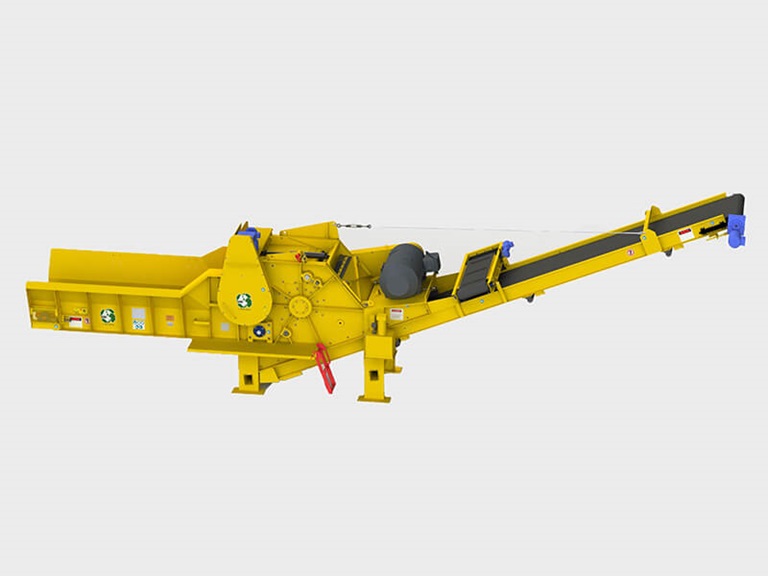

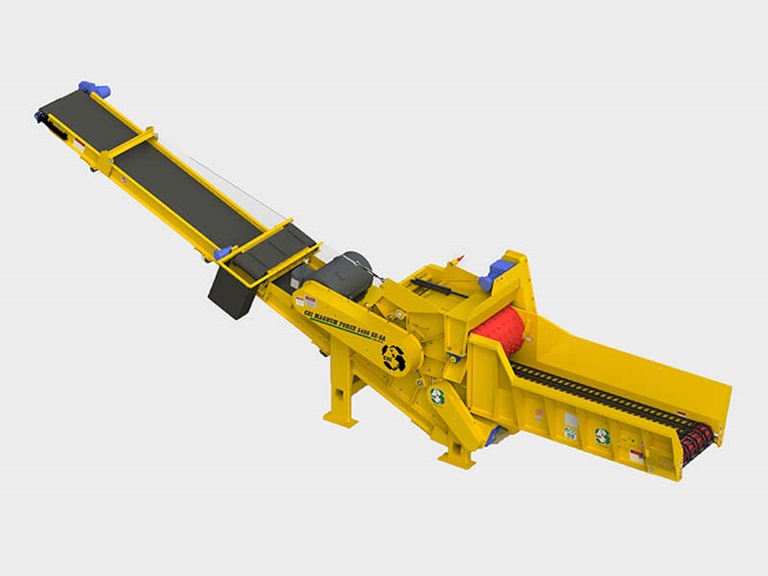

5400SE-SA

Transport Length 38 ft 11 in
Transport Width 8 ft 40 in
Transport Height 12 ft
Engine 400hp or 500hp crusher duty motor
Weight 69,000lbs - 73,000lbs (depending on options)
Rotor Size Four options - Segmented drum, forged drum, 2-pocket chipper, 4-pocket chipper, Width: 48" Diameter: 40" Shaft: 6"
Infeed Width 4 ft
5800BT Horizontal Wood Grinder

5800BT

Transport Length 38 ft 11 in
Transport Width 8 ft 40 in
Transport Height 12 ft
Engine CAT C18; 765hp
Weight 69,000lbs - 73,000lbs (depending on options)
Rotor Size Width: 48” Diameter: 40” Shaft: 6” Number of Hammers: 20
Infeed Width 4 ft
Fuel Tank Capacity 350 Gallons

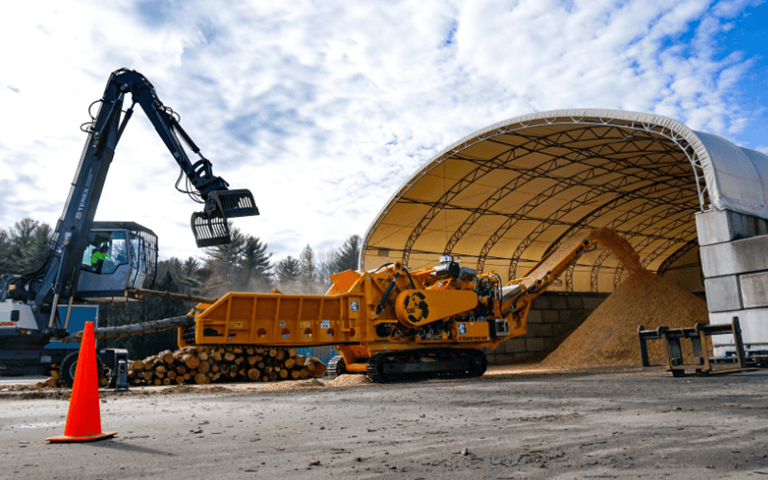

6400CT Horizontal Grinder Thumbnail

6400CT

Transport Length 42 ft 90 in
Transport Width 11 ft
Transport Height 12 ft
Engine CAT C27; 1050hp engine (Option - CAT C32; 1200hp / Option- CAT C27 Tier II; 1050 hp - (Export only))
Weight 90,000lbs - 104,000lbs (depending on options)
Rotor Size Four options - Segmented drum, forged drum, 2-pocket chipper, 4-pocket chipper, Width: 60" Diameter: 40" Shaft: 8"
Infeed Width 5 ft
Fuel Tank Capacity 475 Gallons
