Horizontal Grinder

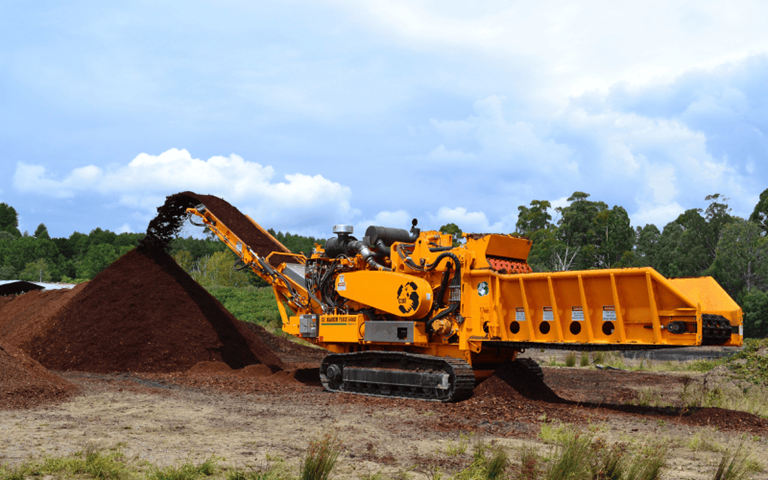

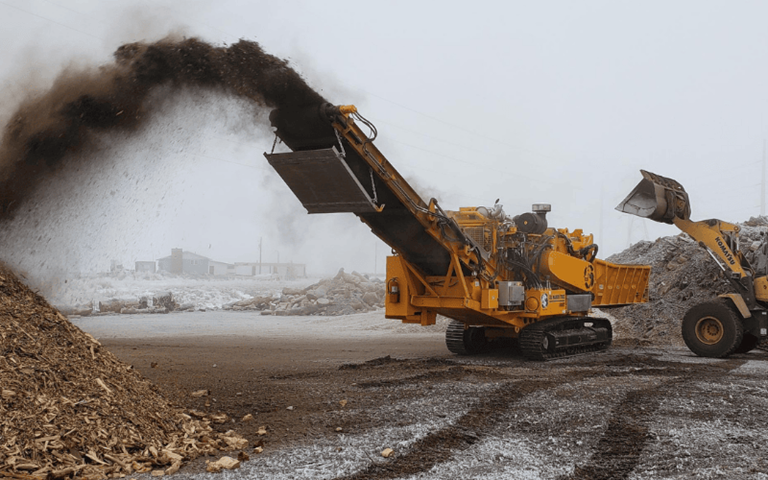

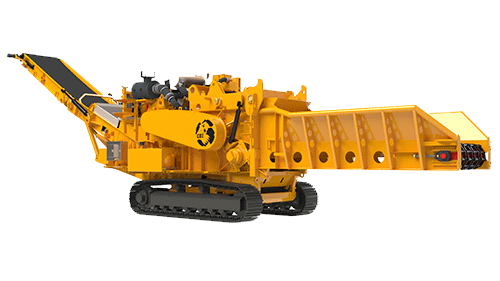

CBI 5800BT Portable Tracked Horizontal Grinder

No other horizontal wood grinder cures the headaches of load restrictions and permitting as much as the CBI Magnum Force 5800BT Portable Upswing Grinder. This portable horizontal grinder was developed to feature the same principles of the proven CBI 6800BT Grinder but is purpose-built for contractors dealing with transportation restrictions. Like CBI’s other horizontal grinders, the 5800BT never compromises strength or performance.

Specification Value
Rotor Size Width: 48” Diameter: 40” Shaft: 6” / Width: 1.21m - Diameter: 1.01m - Shaft: .152m
Engine CAT C18; 765hp / CAT C18; 570kW
Weight 69,000lbs - 73,000lbs (depending on options) / 31,297kg - 33,112kg (depending on options)
Working Dimensions Width: 8’ 4” Length: 48' 6" Height: 15' 4" / Width: 2.54m Length: 14.77m Height: 4.67m

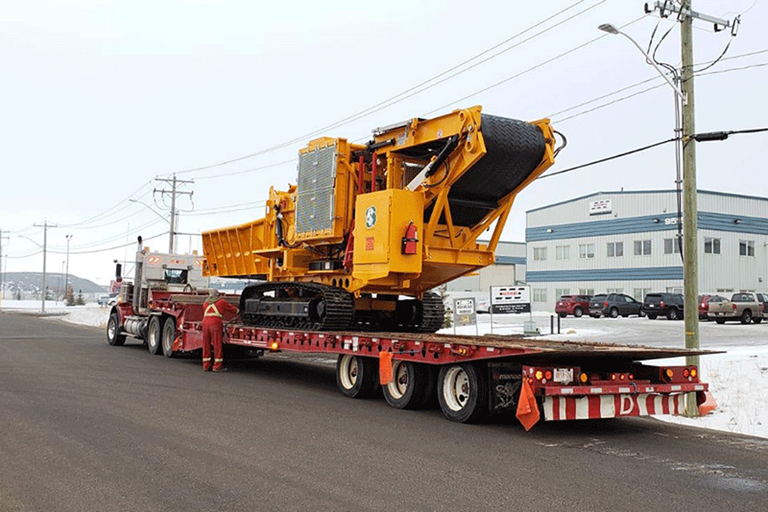

Transport Dimensions Width: 8’ 4” Length: 38’ 11” Height: 12' / Width: 2.54m Length: 11.86m Height: 3.65m
  • Caterpillar C-18; 765hp Tier 2 Final
  • Caterpillar C-18; 765hp Tier 4 Final
  • Air compressor w/ enclosure
  • Single grouser tracks 700mm
  • Vulcanized discharge belt
  • Rock guards for tracks
  • Magnetic head pulley
  • Control panel guard
  • Overband magnet
  • Lighting package
