Horizontal Grinder

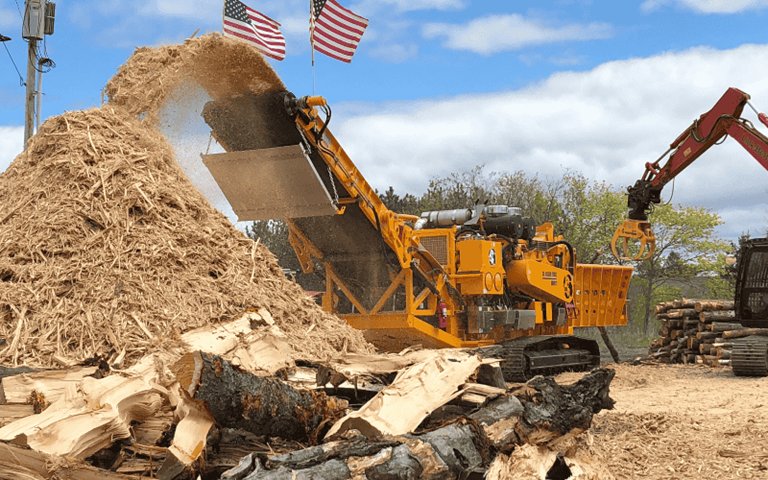

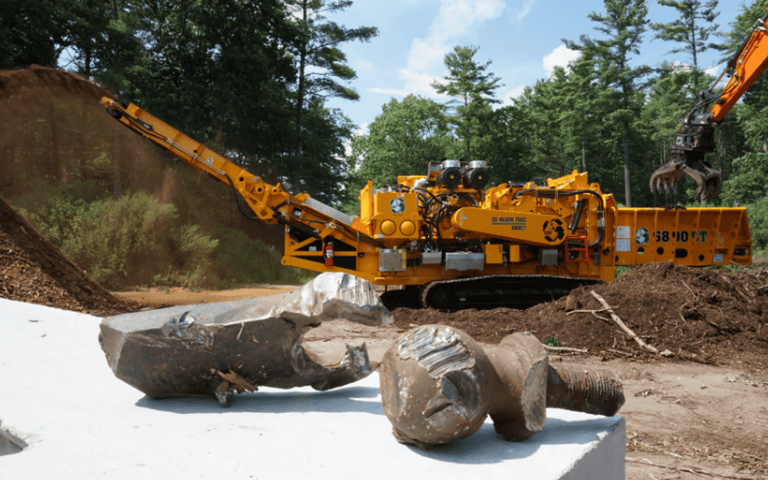

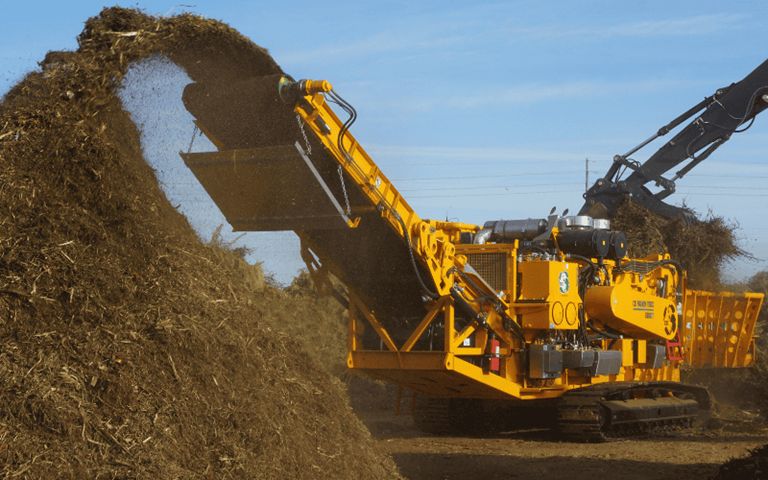

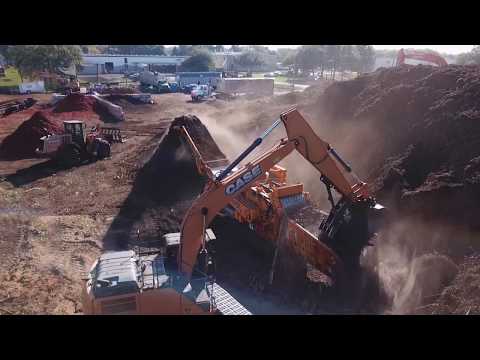

6800CT Horizontal Grinder processing compost

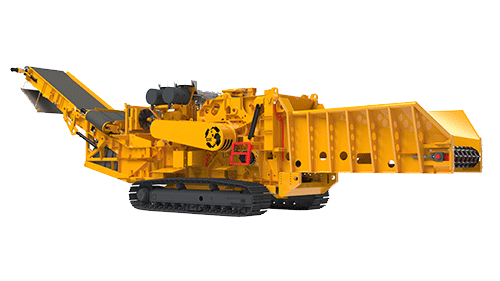

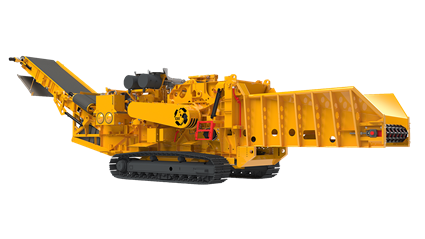

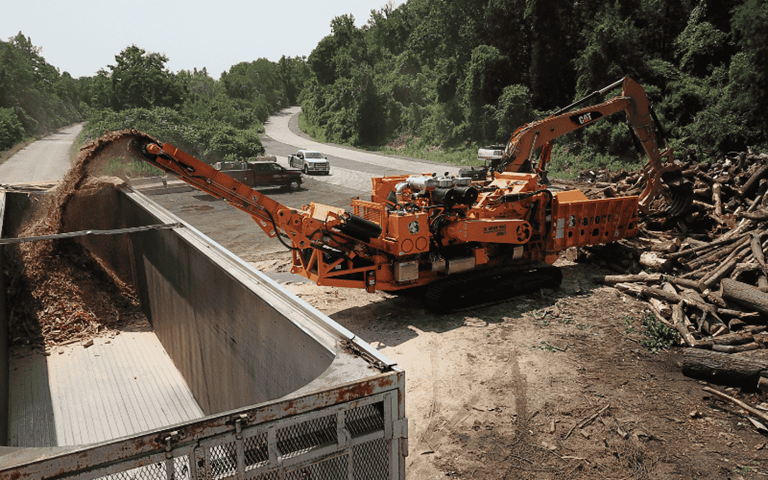

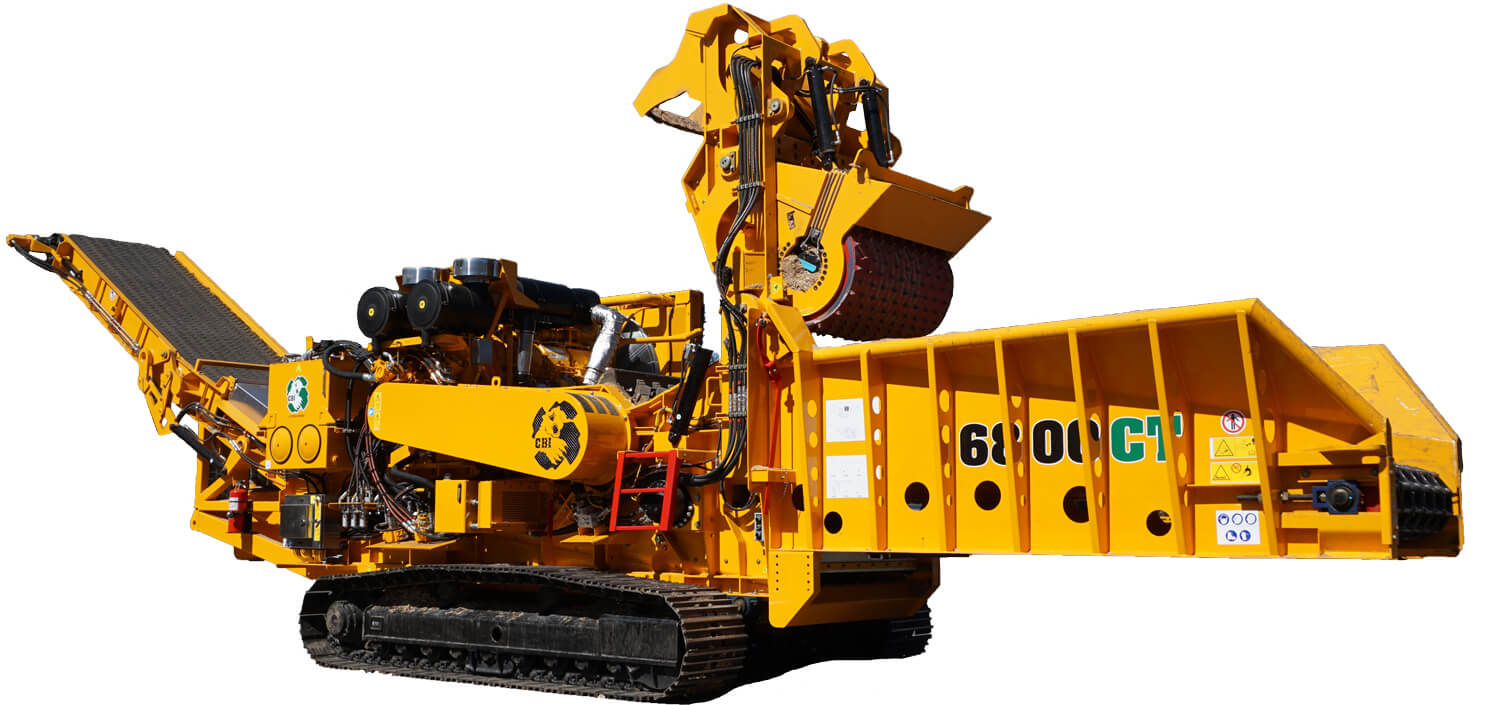

The CBI Magnum Force 6800CT Horizontal Grinder has been engineered to surpass every horizontal grinder that came before it. Once land clearing and wood waste professionals switch to CBI grinders for their ultimate production, performance, and durability, they never look back. This is the best horizontal grinder on the market.

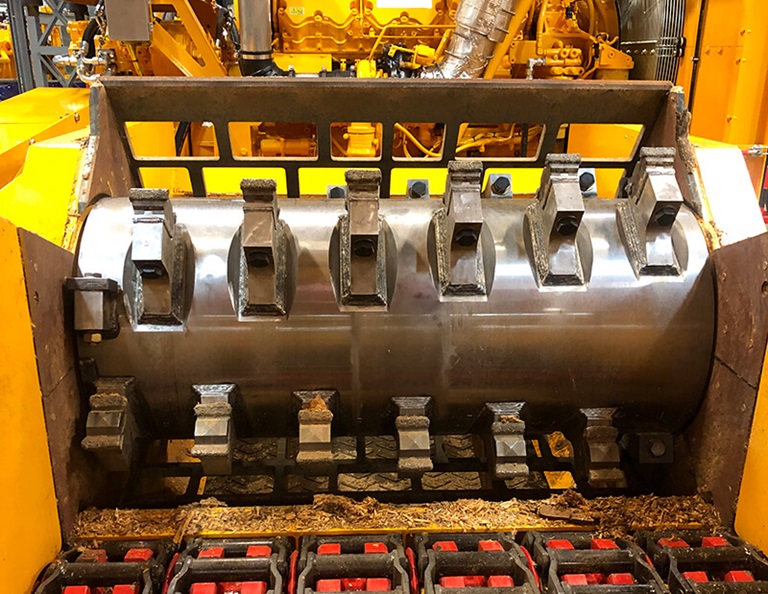

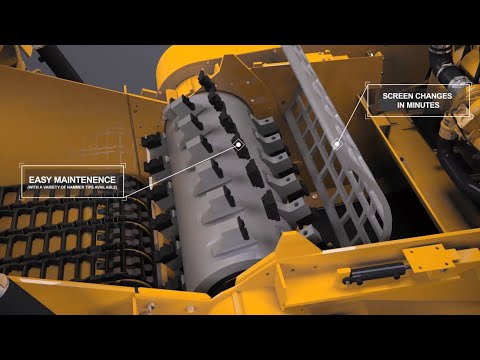

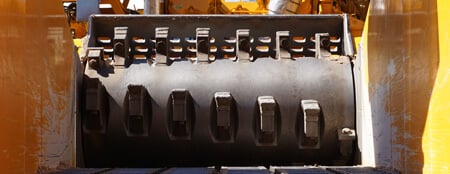

Improving on the 6800BT’s revolutionary design, the 6800CT has a 15 percent larger screening area, wrapping more than 190° around the rotor, allowing production rates to surge beyond 200 tons an hour. Supported by a larger shaft and bearings and an optional 1200hp CAT C32, the engine powers the forged drum rotor through the toughest materials. The design of CBI’s offset helix rotor minimizes energy loss from each strike and distributes material evenly across the 24 hammers, requiring less power while outproducing the competition.

Specification Value
Rotor Size Width: 60” Diameter: 40” Shaft: 8” / Width: 1.52m Diameter: 1.01m Shaft: .203m

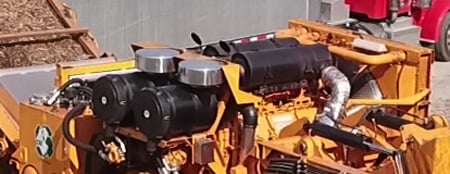

Engine CAT C27; 1050hp engine (Option - CAT C32; 1125hp or 1200hp engine) / CAT C27; 782kW (Option - CAT C32; 838kW or 894kW engine)
Weight 89,500lbs - 95,000lbs (depending on options) / 40,596kg - 43,091kg (depending on options)
Working Dimensions Width: 11' 1" Length: 52' 9" Height: 16' 1" / Width: 3.38m Length: 16.07m Height: 4.89m
Transport Dimensions Width: 11’ 1” Length: 43’ 2” Height: 12’ 0” / Width: 3.38m Length: 13.16m Height: 3.66m
  • CAT C32 1200hp T4 Engine (T2 Optional where permitted)
  • Detachable dolly with outriggers plus 5th wheel
  • Heavy duty control panel protective guard
  • CAT C27 1050hp T2 (where permitted)
  • Standard duty overband magnet
  • Heavy duty overband magnet
  • 700mm single grouser tracks

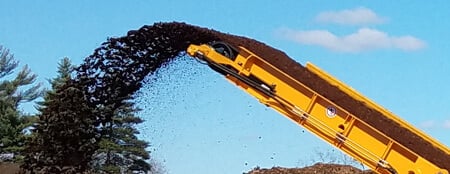

  • Vulcanized discharge belt
  • Rock guards for tracks
  • Magnetic head pulley
  • Air Compressor
  • Dolly ready kit
  • Dolly prep kit
  • Regrind door
