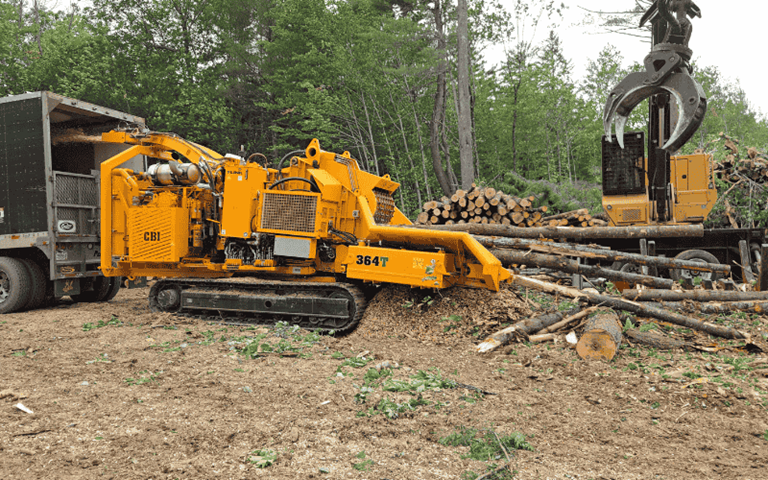

ChipMax 364T

The ChipMax 364T industrial wood chipper is built for durability, productivity, and versatility, delivering superior performance with a lower total cost of ownership. Available with either a 755hp or 550hp engine, it operates at peak efficiency, making it a powerhouse for any operation.

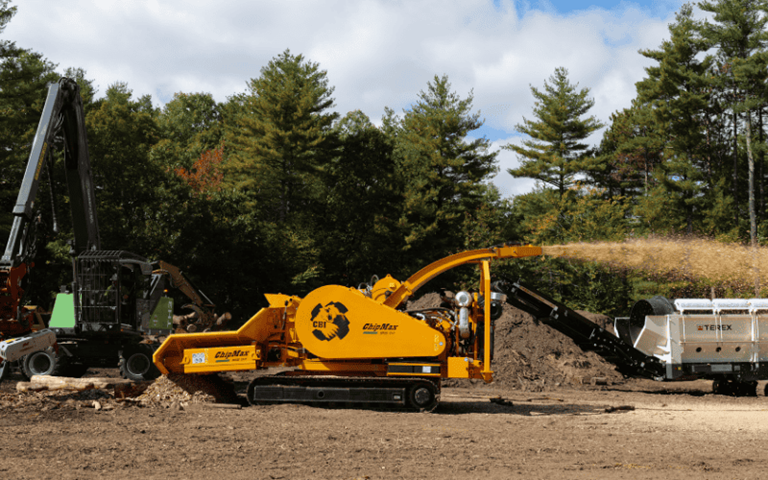

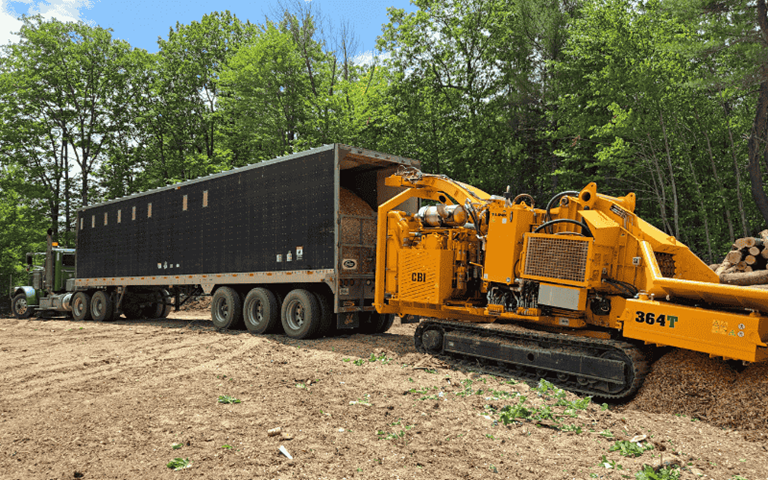

Designed for maximum output, its improved chute geometry enhances chip throw for efficient trailer packing, while a standard chip accelerator optimizes performance across various chip sizes. The service platform next to the engine provides a convenient workspace for routine maintenance.

With two rotor options, the 364T gives operators the flexibility to produce anything from consistent micro-chips to larger 30mm chips, adapting to market demands. CBI’s innovative rotor design enables quick swaps, allowing for easy adjustments to chip sizes and seamless adaptation to diverse end markets.

Technical Documentation

Measurements

Chipper Shaft 6 ft 152 m 40 cm
Infeed Width 3 ft 0 m 91 cm
Rotor 6-pocket chipper, Width: 36" Diameter: 48" Shaft: 6", Set screw knives 6-pocket chipper, Width: 914mm Diameter: 1.2m Shaft: 152mm, Set screw knives
Bottom Feed Wheel 12 5/8" Diameter x 35 1/2" Wide 320.7mm Diameter x 901.7mm Wide
Top Feed Wheel 30" Diameter x 33" Wide 763mm Diameter x 838mm Wide
Tracks Triple Grouser, 15 3/4" (400mm) Wide Triple Grouser, 15 3/4" (400mm) Wide

Product Details

Weight 45,000 lbs 19,958 kgs
Feed Options Heavy Duty Apron Chain, Drag Chain Heavy Duty Apron Chain, Drag Chain

Transport Dimensions

Transport Height 12 ft 3 m 66 cm
Transport Length 27 ft 10 in 8 m 53 cm
Transport Width 8 ft 50 in 2 m 59 cm

Productivity

Fuel Tank Capacity 210 Gallons 795L
Chip Size Range 0.47in-1in 12mm-25mm
Chip Accelerator Hydraulically driven impeller to maximize chip throw and increase truck load density Hydraulically driven impeller to maximize chip throw and increase truck load density
Hydraulic Tank Capacity 50 Gallons 190L

Power

Clutch PT TECH HPTO 15 PT TECH HPTO 15
Engine Scania DC13, Tier IV Final/Stage V, 550 HP / Scania DC16, Tier IV Final/Stage V, 770HP / CAT C18, Tier IV Final, 755HP / CAT C18, Tier II, 765HP (Export Only) Scania DC13, Tier IV Final/Stage V, 550 HP / Scania DC16, Tier IV Final/Stage V, 770HP / CAT C18, Tier IV Final, 755HP / CAT C18, Tier II, 765HP (Export Only)
