TC75R

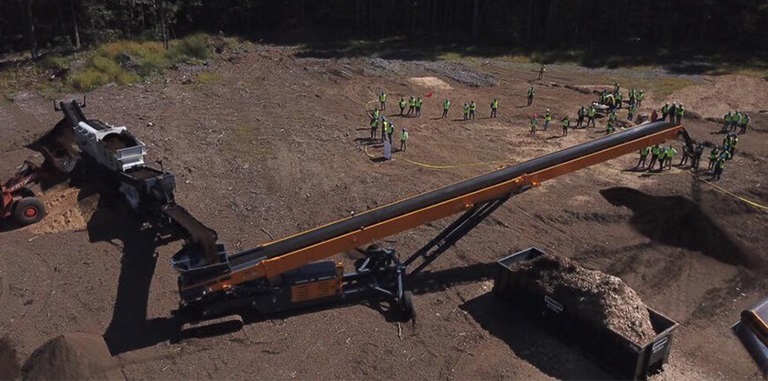

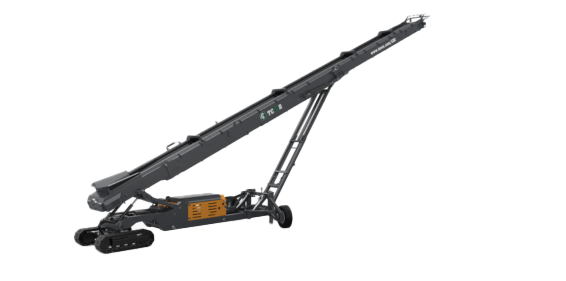

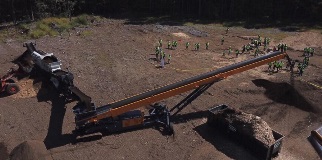

The CBI TC75R is a 75′ tracked radial stacker conveyor, designed and built to a high quality specification to optimize grinding and chipping applications. The radial stockpiling ability allows users to greatly increase performance and reduce the cost of material handling on site. Ideal for mulch, compost, and fuel chip stockpiling. The TC75R is also designed to fit in a 40ft container to save on shipping costs.

Technical Documentation

Measurements

Max Discharge Height 35' 10" @ 23° 10.9m @ 23°
Conveyor Length 75 ft 20 in 22 m 90 cm
Belt Width 42 Inches 1050 mm

Working Dimensions

Working Height 33 ft 2 in 10 m 1 cm
Working Width 84 ft 90 in 25 m 80 cm

Transport Dimensions

Transport Width 64 ft 40 in 19 m 60 cm
Transport Height 10 ft 3 m
