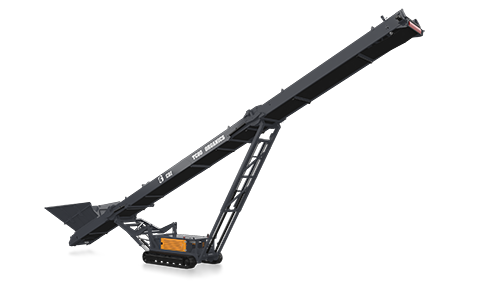

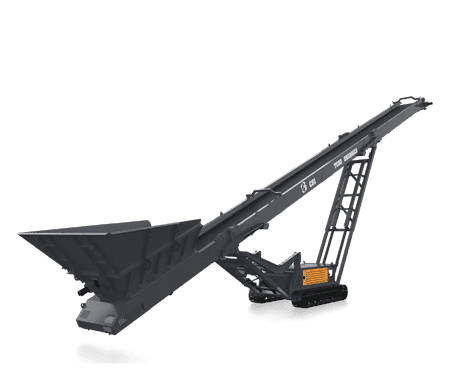

TC80

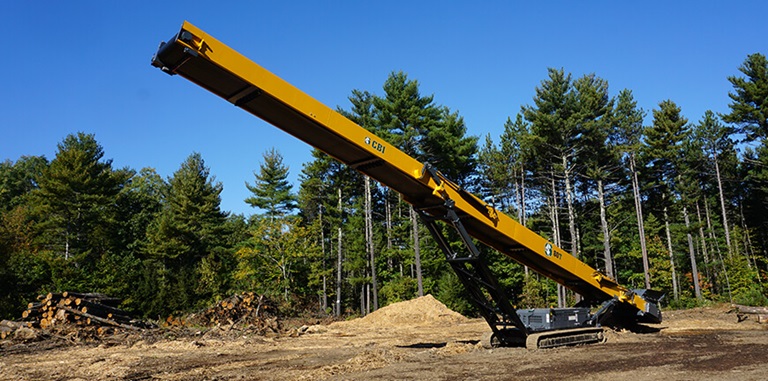

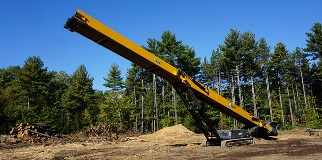

Working with CBI’s range of grinding and chipping equipment, the TC80 Tracked Stacker Conveyor optimizes stockpile production and reduces double handling of material. Designed to save on shipping costs, the TC80 fits in a 40ft container. Tracks allow for easy maneuvering to ensure the most efficient loading position.

Technical Documentation

Working Dimensions

Working Width 83 ft 80 in 25 m 50 cm
Working Height 38 ft 11 in 9 m 5 cm

Measurements

Max Discharge Height 34’ 6” @ 28° 10.5m @ 28°
Conveyor Length 77 ft 23 m 50 cm
Belt Width 42 Inches 1050 mm

Transport Dimensions

Transport Width 38 ft 11 in 11 m 88 cm
Transport Height 8 ft 40 in 2 m 54 cm
