960 4 Bin

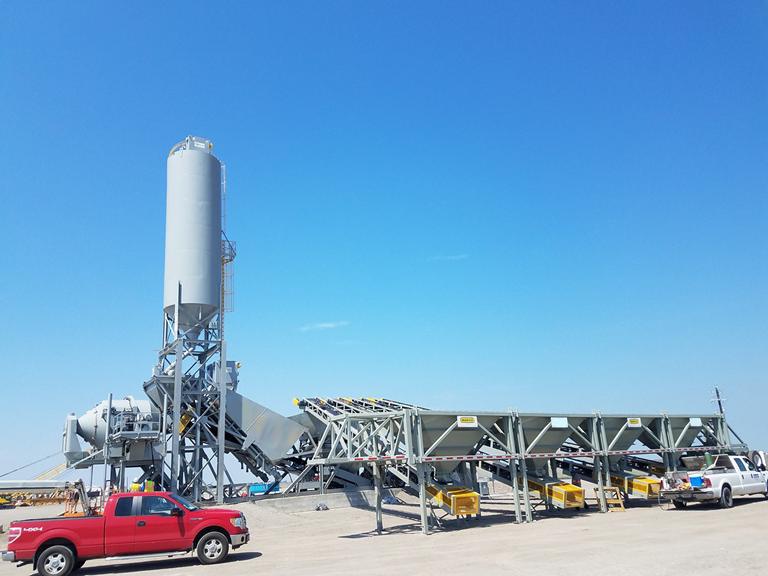

The Marco 960 4 Bin is designed to work seamlessly with our 520 conveyors. When combined the 960 Portable Bins and 520 Conveyors are often used as concrete plant feeders.



A max capacity of 75.6 yrds and a bin height of 12' 10" provides a heavy duty option for operators.



The 960 4 Bin is available with clamshell or slide gates at 9" x 14".

Technical Documentation

Measurements

Max. Bin Capacity 56.70 yrds 84.30 tons
AR Plate 400 or 500 400 or 500
Discharge Height 4 ft 11 in 1 m 25 cm
Bin Height 12 ft 10 in 3 m 90 cm
Clamshell Slide Gate 9" x 14" 22 x 35cm

Downloads

Brochures
