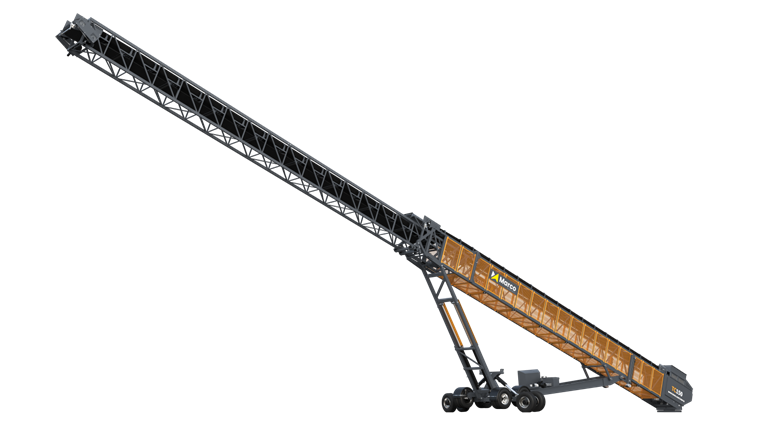

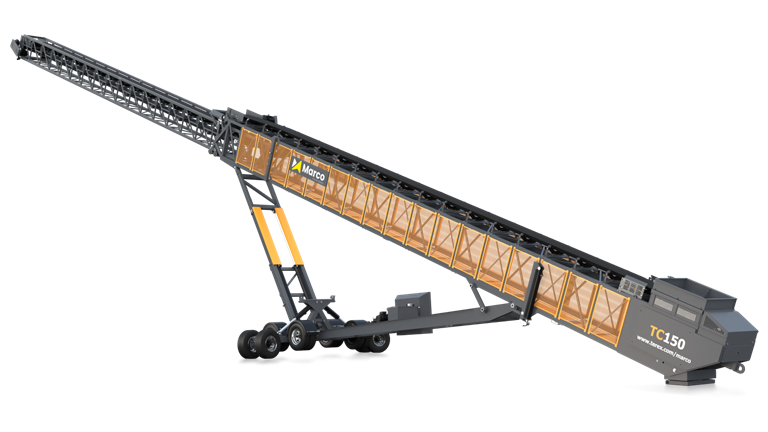

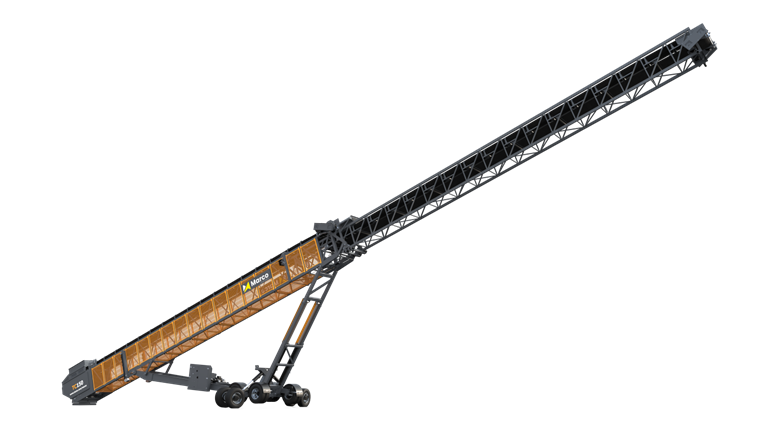

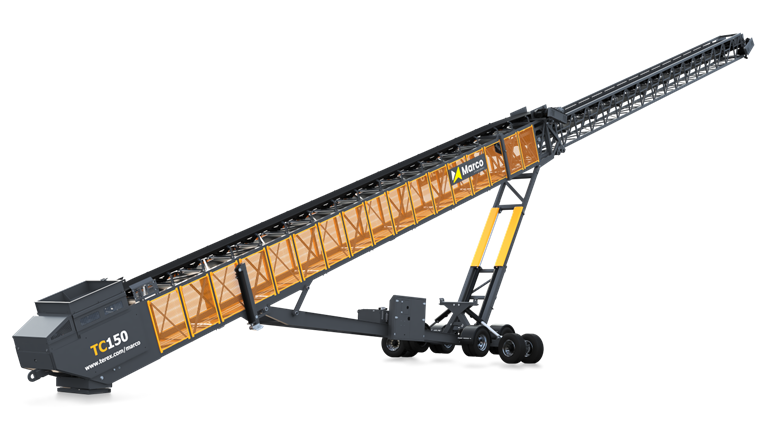

TC150

Marco's TC150 Radial Telescopic Conveyor features a working length of 150’ and is capable of 270° of radial movement with 800tph as standard. Through close collaboration between the customer and ProStack’s engineering team, the TC150 can be tailored to meet the specifications of multiple applications and has been specifically designed for the North American market. The TC150 has a transport length of 89’ 5”, is road towable and can be deployed without the use of tools. The TC150 Radial Telescopic Conveyor is road towable in North America and can be set up without the need for tools.



The TC150 is made in America, for America.



A stockpile height of over 48’ 10” allows for a maximum stockpile capacity of approximately 102,696 yd3.

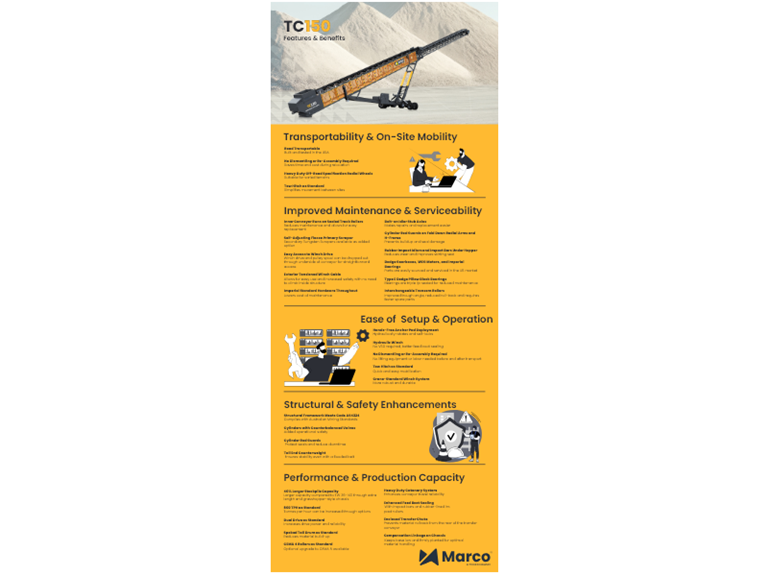

Features

  • No dismantaling or re-assemlby required
  • Easy access, crane-standard, winch drive
  • Dual drive as standard
  • Hands free anchor pad deployment
  • Heavy duty catenary system

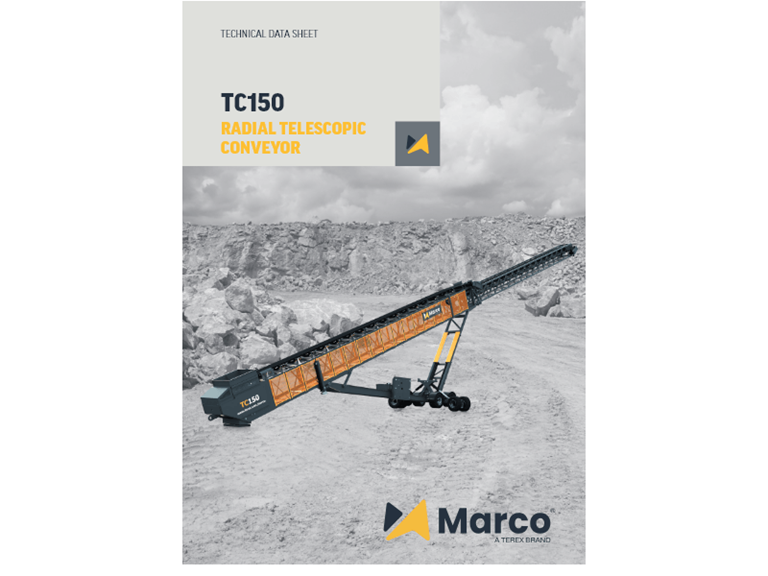

Technical Documentation

Measurements

Transport Height 13 ft 80 in 41 m 50 cm
Transport Weight 64310lbs 29500kgs
Conveyor Fully Extended 149 ft 80 in 45 m 60 cm
Max. Stockpile Height at 18° 48 ft 10 in 14 m 90 cm
Transport Width 12 ft 30 in 3 m 72 cm
Belt Width 36" 900mm
Transport Type Road Towable Road Towable
Transport Length 90 ft 60 in 27 m 60 cm

Productivity

Rated Tonnage 1000 tph 1000 tph
Feedboot Capacity 1 Cu 40 Yd 1.10 Metre Cubed
Stockpile Capacity 102696 yd3 78517 m3

Power

Power Fully Electric Fully Electric
