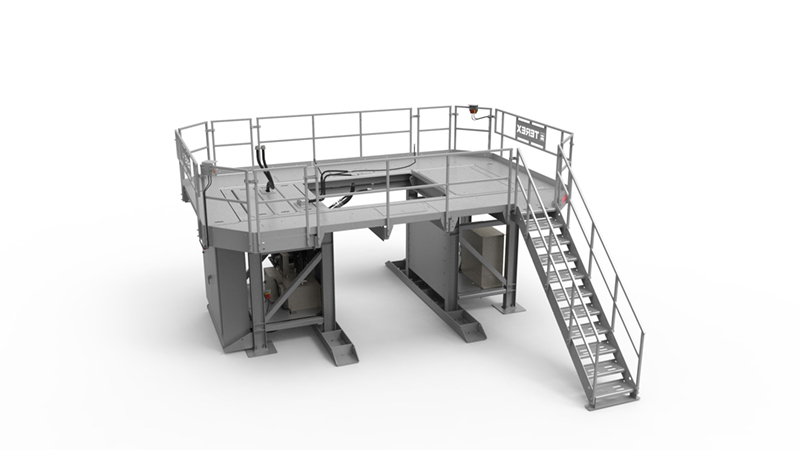

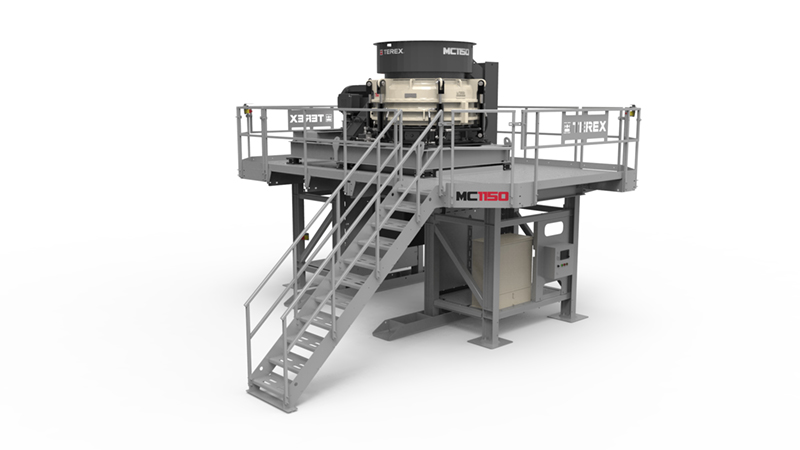

MC1150
Cone Crusher Module

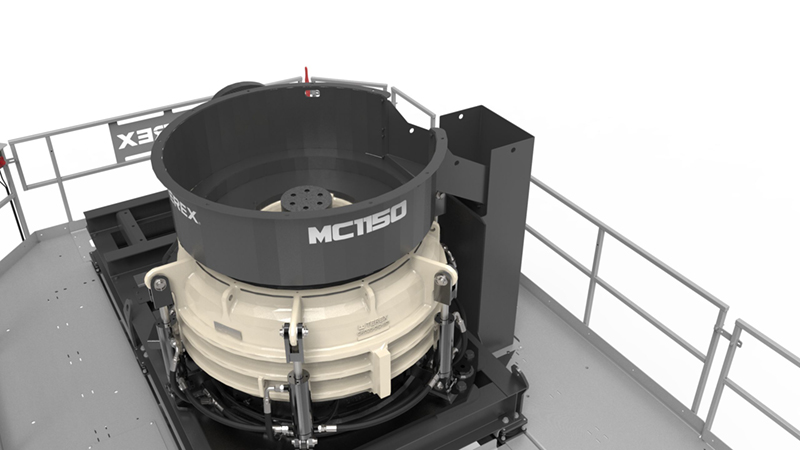

The MC1150 offers a nominal cone head diameter of 45”(1150mm).It features a one-piece upper frame for all liner configurations, a no-hit concave and new mantle liner retention systems. Other enhancements include greater tramp clearance and increased clamp hold down pressure.
| Specification | Value |
|---|---|
| Weight | 52,150 lbs / 23,654 kg |
| Working Dimensions | 21'11"x23'1"x14'10" (LxWxH) / 6688x7044x4527 mm (LxWxH) |
| Motor Size | 300 hp / 225 kW |
| Capacity | 280-327 tph / 308-360 mtph |
