TC1300
MC1300
Cone Crusher Module

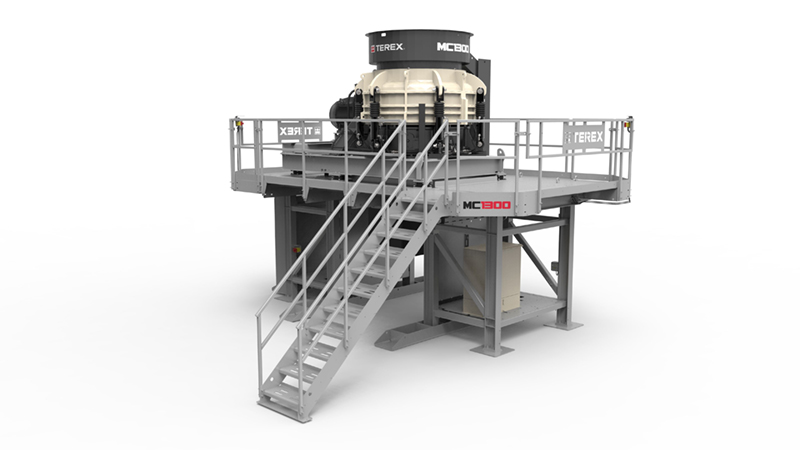

Our MC1300 Cone Module has a 51” (1300mm) cone with full short and long throw configurations, and all-roller bearing design. Set-up time and ease of operation is aided by the simplicity of the modular product range. All modules bolt together on site and require minimal on-site wiring. Designed with logistics in mind, the MC1300 Cone Module, including all its components, can be easily transported in shipping containers.
| Specification | Value |
|---|---|
| Weight | 66,140 lbs / 30,000 kg |
| Working Dimensions | 21'11"x23'1"x16'1" (LxWxH) / 6688x7044x4904 mm (LxWxH) |
| Motor Size | 300 hp / 225 kW |
| Capacity | 388-457 tph / 352-415 mtph |
