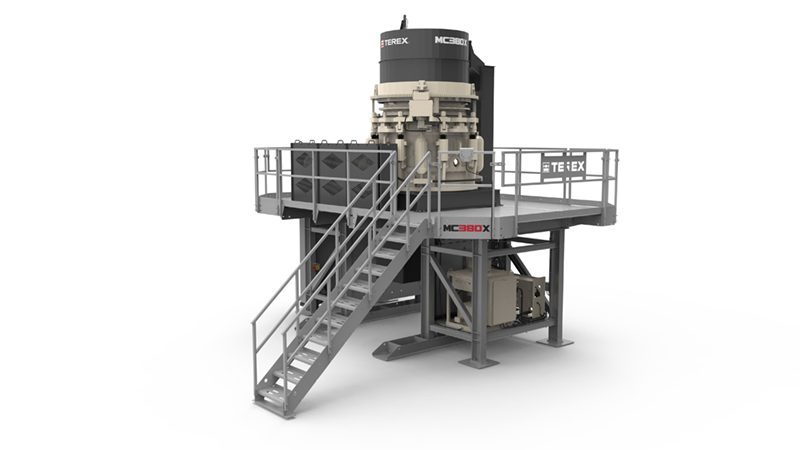

MC380X
Cone Crusher Module

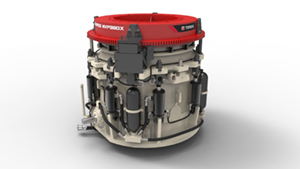

The MC380X cone module further extends the capabilities of the range. With the new Terex®Cedarapids MVP380X cone crusher, the MC380X boasts numerous features that increase productivity and ease of use. Major new enhancements include high-speed clearing of jammed material; quick crusher separation capability for faster manganese changes; and user-friendly computer controls enclosed in a weather-protected control panel.
Specification | Value |
---|---|
Weight | 69,900 lbs / 31,706 kg |
Working Dimensions | 21'11"x23'1"x19'9" (LxWxH) / 6688x7044x6031 mm (LxWxH) |
Motor Size | 300 hp / 225 kW |
Capacity | 295-380 tph / 268-345 mtph |
