CRC1350
Cone Plant

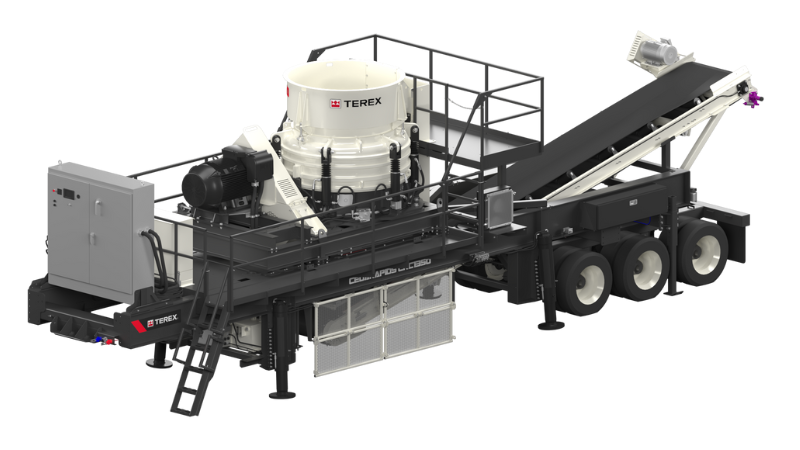

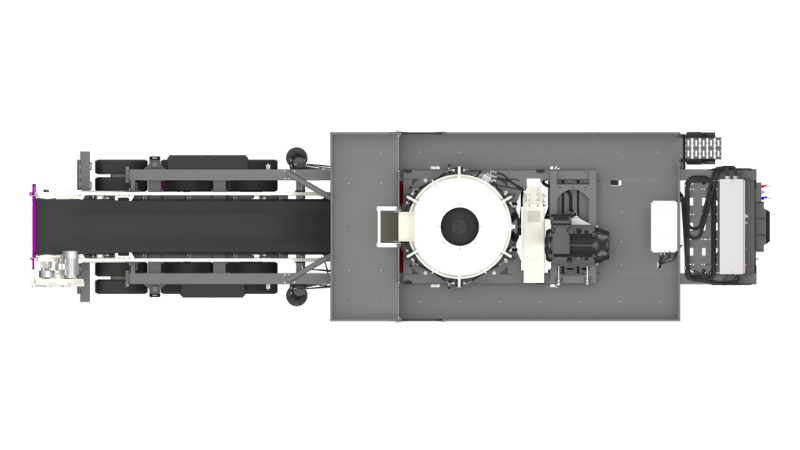

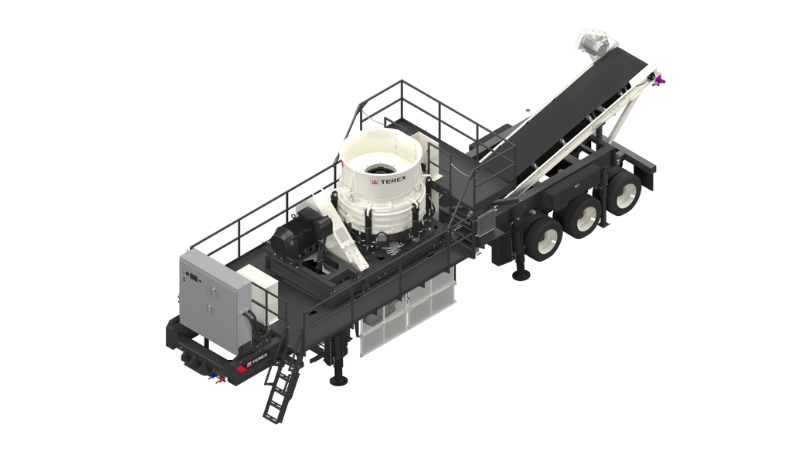

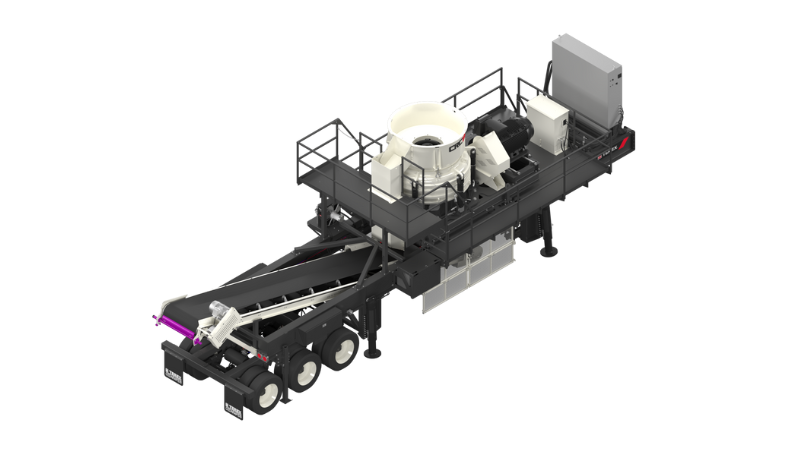

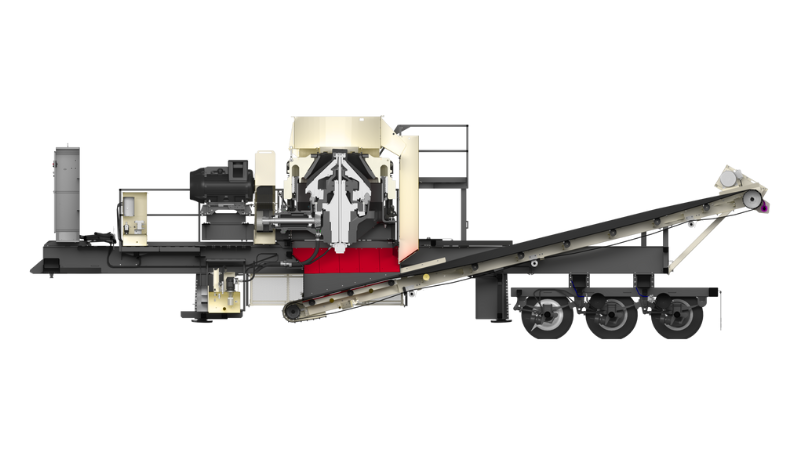

The Cedarapids® CRC1350 cone plant delivers big production at an affordable price. The highly mobile plant features the TC1300X cone crusher that utilizes high efficiency roller bearings and boasts several notable advancements that enhance performance and functionality. Key features include automated cone controls and larger closed side settings. The crusher is powered by a 400 hp (300 kW) motor and drive, all mounted on a rubber isolated frame. The plant includes an oversize cone feed hopper extension with overflow chute, “straight-line” undercrusher conveyor, metal detector, and service platforms. Easy maintenance features include conveniently located grease banks and a ground access cone lubrication module.
| Specification | Value |
|---|---|
| Weight | 82,944 Ibs / 37,623 kg |
| Transport Dimensions | 46'10"x11'11"x13'11" (LxWxH) / 14274x2896x4242 mm (LxWxH) |
| Working Dimensions | 46'10"x11'11"x15'3" (LxWxH) / 14274x2896x4648 mm (LxWxH) |
| Axles | 3 axles / 3 axles |
| Capacity | 325-375 STPH / 295-340 MTPH; Capacity @ 1" setting |
Image and Video Gallery
Related Products
-
![CRC1150S_1_thumbnail]()
-
![WC1150S cone / screen plant]()

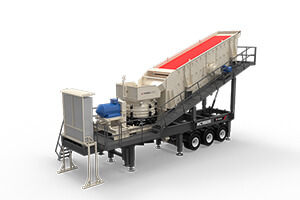

WC1150S
The Terex® MPS WC1150S Cone-Screen plant is a high performance, medium sized wheeled crushing-screening system that can be transported in containers.
-
![CRC1150_thumbnail]()

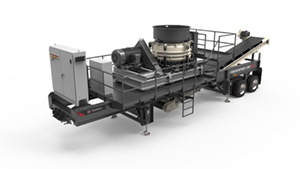

CRC1150
The Cedarapids® CRC1150 cone plant delivers big production at an affordable price. The highly mobile plant features the TC1150 cone crusher.
-
![CRC450X_thumbnail]()

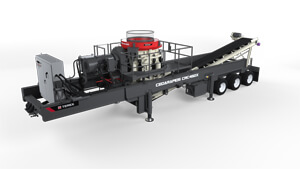

CRC450X
The Cedarapids® CRC450X cone plant is built for portability, especially for applications involving hard abrasive materials
-
![CRC380XHLS_thumbnail]()
CRC380XHLS
The Cedarapids CRC380XHLS features the MVP380X combined with an LJ-TSV6203 High Lift Screen
-
![CRC380X_thumbnail]()

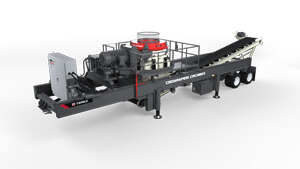

CRC380X
