TG320

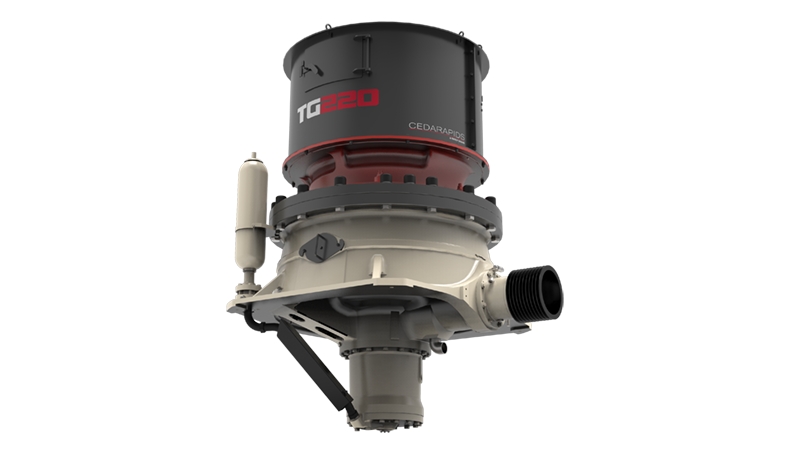

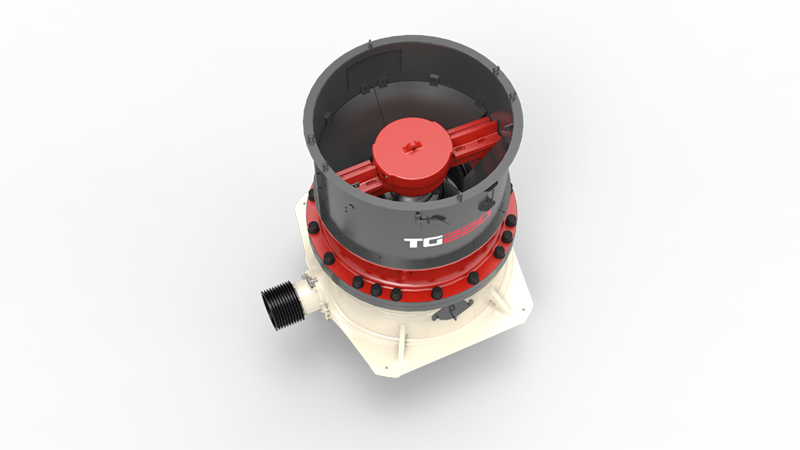

TG220
Cone Crusher
The new bronze bushing TG Series cone crushers are a valuable addition to the world leading Cedarapids Cone Crusher Range.
These impressive new cone crushers can be easily & efficiently set up to perform and deliver the best cost per ton cubicle product by selecting the optimum crushing cavity and eccentric throw to suit the application requirements. From a course secondary right through to fine quaternary, the TG series cone crushers will consistently exceed all performance expectations.
| Specification | Value |
|---|---|
| Motor Size | 215 hp / 160 kW |
| Max Feed Size | 6 1/2" / 165mm |
| Weight | 20,944 lbs / 9,500 kg |
| CSS Range | 1/4"-1 1/4" / 6-32 mm |
| Max Capacity | 215-237 tph / 195-215 mtph |
