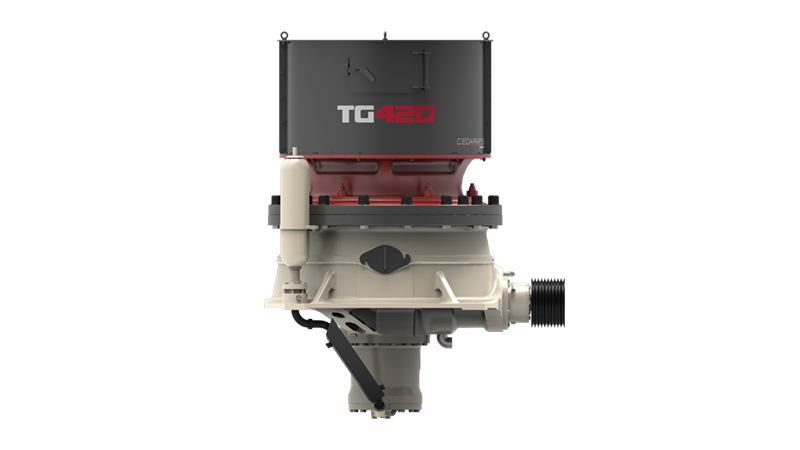

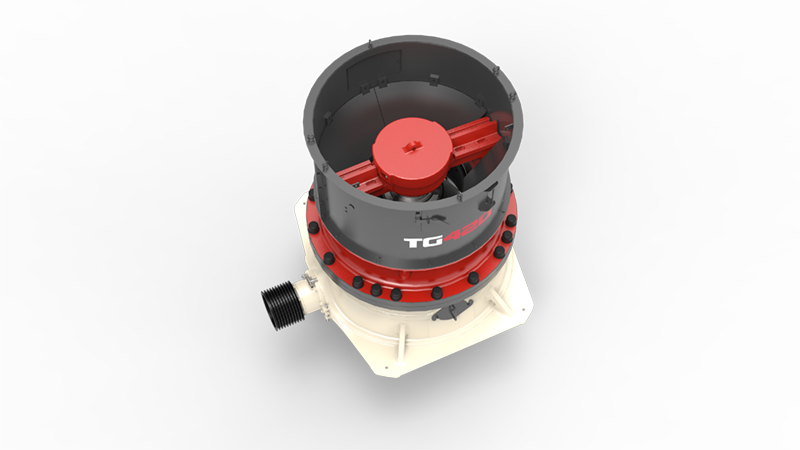

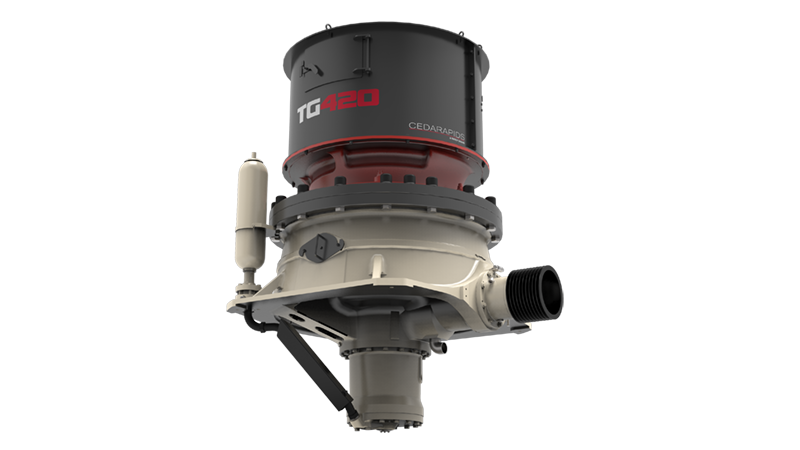

TG420
Cone Crusher
The new bronze bushing TG Series cone crushers are a valuable addition to the world leading Cedarapids Cone Crusher Range.
These impressive new cone crushers can be easily & efficiently set up to perform and deliver the best cost per ton cubicle product by selecting the optimum crushing cavity and eccentric throw to suit the application requirements. From a course secondary right through to fine quaternary, the TG series cone crushers will consistently exceed all performance expectations.
Specification | Value |
---|---|
Motor Size | 400 hp / 315 kW |
Max Feed Size | 9 7/16" / 240 mm |
Weight | 55,556 lbs / 25,200 kg |
CSS Range | 1/2"-1 3/4" / 13-44 mm |
Max Capacity | 705-750 tph / 640-680 mtph |
