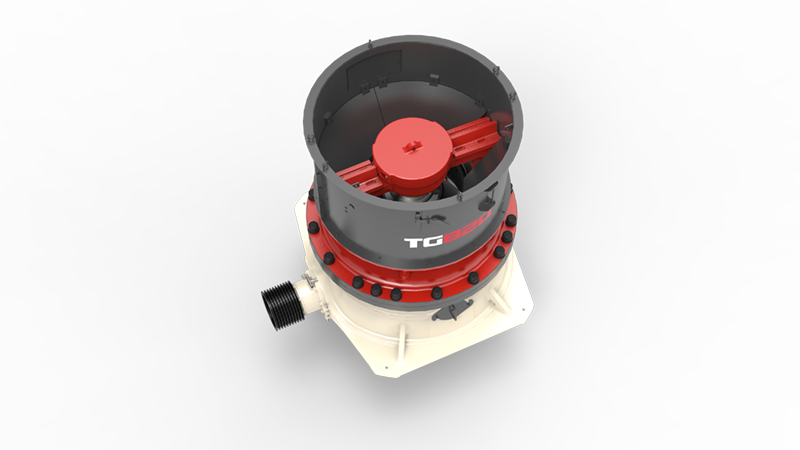

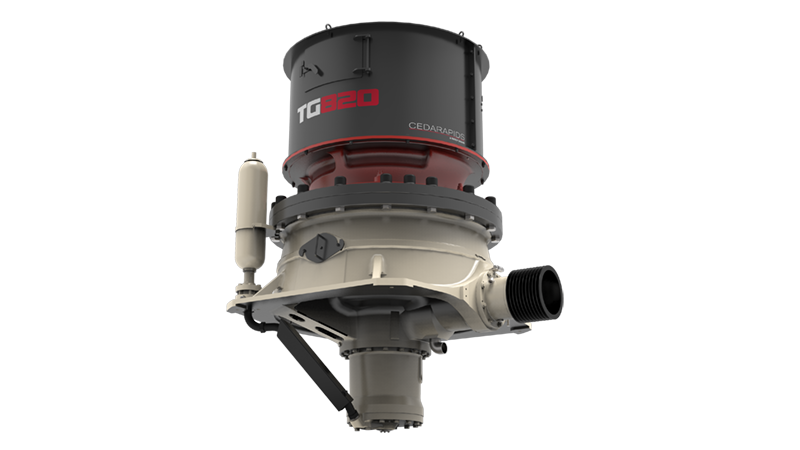

TG820
Cone Crusher
The new bronze bushing TG Series cone crushers are a valuable addition to the world leading Cedarapids Cone
Crusher Range.
These impressive new cone crushers can be easily & efficiently set up to perform and deliver the best cost per ton cubicle product by selecting the optimum crushing cavity and eccentric throw to suit the application requirements. From a course secondary right through to fine quaternary, the TG series cone crushers will consistently exceed all performance expectations.
The ACE7 cone automation control system, fitted standard on all the TG Series Cones, is the new evolution in cone management. With its user friendly interface and advanced technology the ACE7 system will continuously monitor the cone’s operational parameters and make the necessary adjustments to ensure consistent peak performance.
- Hydraulically controlling the cone’s CSS, even under load, and compensating for liner wear.
- Maintaining the cone’s optimum power requirement.
- Logging of key operational parameters & performance indicators.
- Advanced diagnostics
| Specification | Value |
|---|---|
| Motor Size | 805 hp / 600 kW |
| Max Feed Size | 1' 5/8" / 320 mm |
| Weight | 110,231 lbs / 50,000 kg |
| CSS Range | 1/2"-2 1/2" / 13-64 mm |
| Max Capacity | 1543-1709 tph / 1400-1550 mtph |
