AF 14

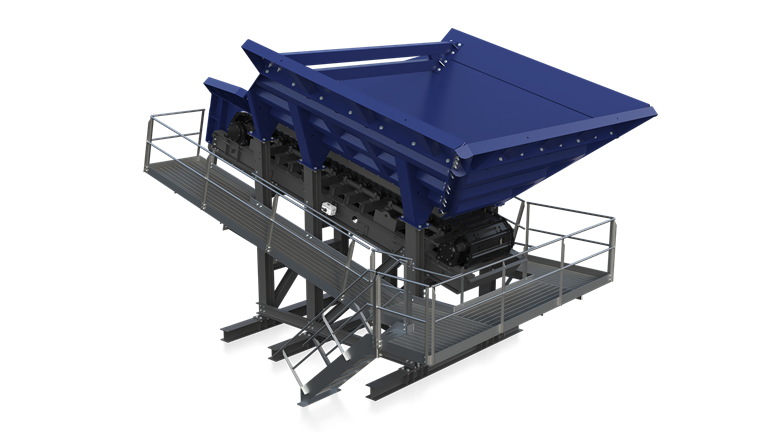

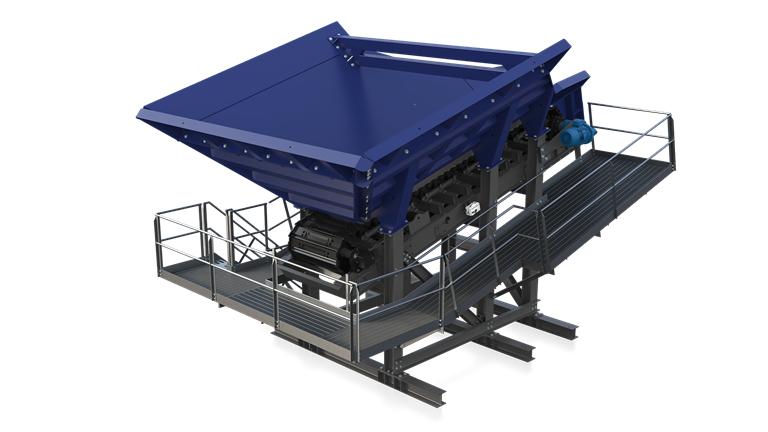

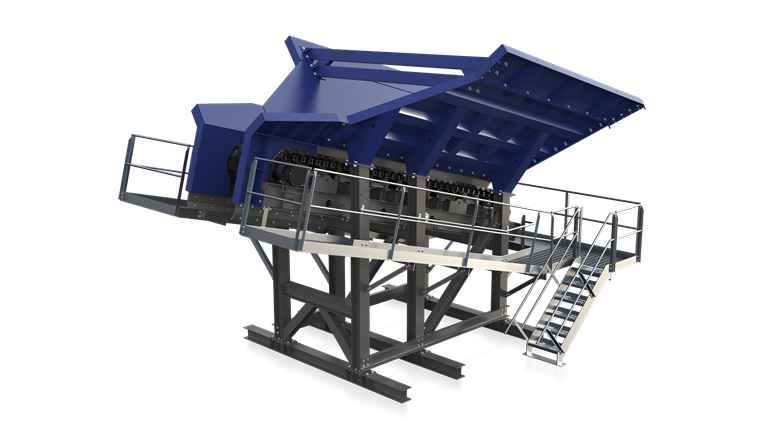

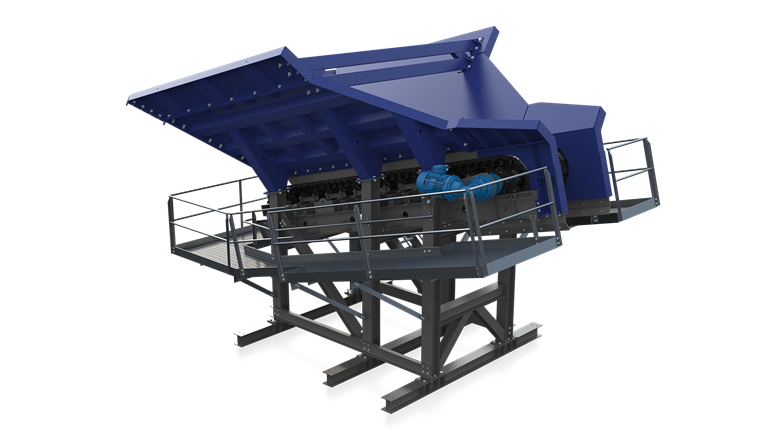

The ProStack AF 14 Apron Feeder is designed to maximise material handling efficiency by delivering a consistent and controlled feed of material from a wheel loader to downstream crushing and screening equipment. Built for demanding applications, the AF 14 integrates seamlessly into Terex material processing systems, helping operators improve productivity and maintain optimal plant performance.


Engineered for durability, the AF 14 features a robust three piece hopper constructed from 15mm (5/8") wear resistant steel plate, reinforced with heavy duty mild steel ribs for long service life in harsh operating environments. Optional features include an electrical power panel for feeder and discharge conveyor control, along with a variable speed drive for precise material flow adjustment to suit a wide range of applications.

Technical Documentation

Measurements

Machine Width 17 ft 6 in 5,340 m
Machine Height 15 ft 10 in 4,830 m
Machine Length 24 ft 3 in 7,390 m

Productivity

Motor Size 20 hp 15 kW
Capacity 19.17 yd3 14.66 m3
