Telescopic Conveyors
ProStack's Telescopic Conveyor range features five specifications that are capable of 270° of radial movement and up to 22° working angle.
ProStack’s ability to tailor our Telescopic Conveyors to suit any job is what sets us apart. Mobility, Conveyor Belt, Radio Remote Control and many other options including Roller and Pulley Lagging and Dust Containment systems are all available. With a multitude of tried and tested options available you can be sure your demands will be met.
Filters
Conveyor Fully Extended
Reset
Stockpile Height
Reset
min
max
Belt Width
Reset

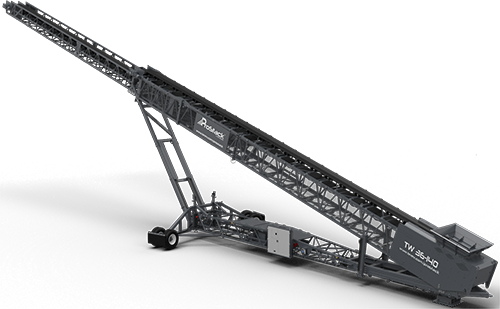

TW 36-140
Conveyor Fully Extended
139 ft 3 in
42 m 45 cm
Belt Width
36 Inches
90 mm
Stockpile Capacity
55,750m³ (72,920 Yd³) @ 18° @ 270°
Stockpile Height
14 ft 4 in
47 m 20 cm
Transport Type
Container (x3) / Road Towable

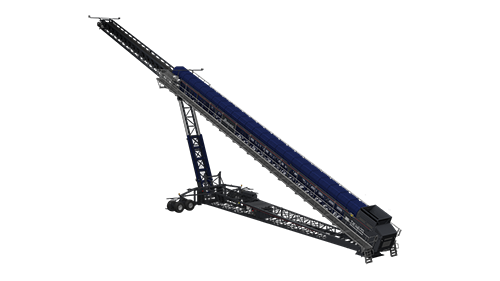

TW 42-170
Conveyor Fully Extended
168 ft 1 in
51 m 40 cm
Belt Width
42 Inches
1000 mm
Stockpile Capacity
113,730m³ (148,750 Yd³) at 18° and 270° Radial
Stockpile Height
59 ft
18 m
Transport Type
Container (x5)

TW 42-190
Conveyor Fully Extended
190 ft 1 in
57 m 90 cm
Belt Width
42 Inches
1200 mm
Stockpile Capacity
148,543m3 (194,287 Cu.Yd.) at 18° and 270° Radial
Stockpile Height
74 ft 9 in
22 m 50 cm
Transport Type
Container (x5)
