FM60C | Sand Recovery Unit

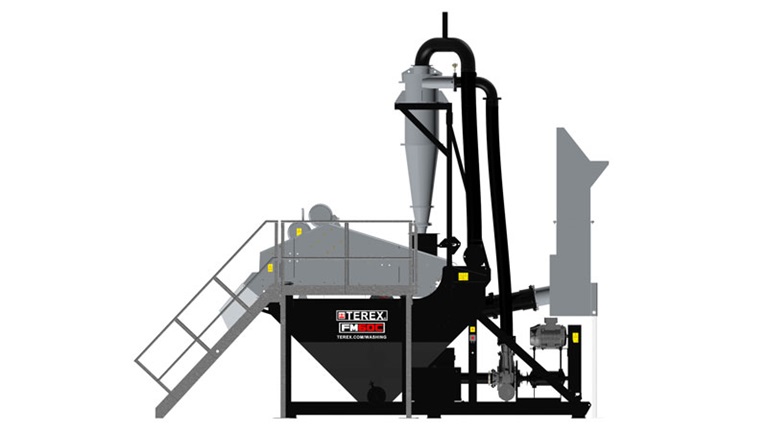

FM 60C Side View
The Terex® FM Compact range are Sand Recovery Units designed to be both cost and energy efficient. The range uses centrifugal force within the cyclone(s) to remove clay, silt and slime from sand to bring it into specification. The range combines a collection tank, centrifugal slurry pump(s), hydrocyclone(s) and a dewatering screen on a single chassis.

FEATURES & BENEFITS
• Can recover 1 or 2 grades of sand from wet feed or bolt-on boiler box option for direct dry feed
• Maximum recovery of saleable material through the removal of silt, slimes and clays below 75μm (200 mesh)
• Robust easy to assemble steel construction complete with galvanized walkway & handrails provide easy access
• Low maintenance & simple operation with self regulating cyclone tank
• Pumps & cyclones have replaceable rubber liners for extended wear life
• High frequency dewatering screen reduces residual water content in your final product to 10–15%
• All electric plant pre-wired to control panel or isolators to integrate with other equipment
Specification Value
Motor Size 25hp / 18.5kw
