Grizzly Mill


Known as the heavyweight champion of the wood waste industry, the CBI Grizzly Mill is the backbone of our biomass recovery systems. It is recognized worldwide as the toughest and most productive wood hog ever built. With multiple rotor types and sizes available, it can be configured specifically as a primary, secondary or tertiary grinder for waste wood (stumps, logs, demolition debris, MSW, telephone poles and railroad ties, stringy bark, yard waste, etc.) for end-product sizes ranging from 15mm–500mm.

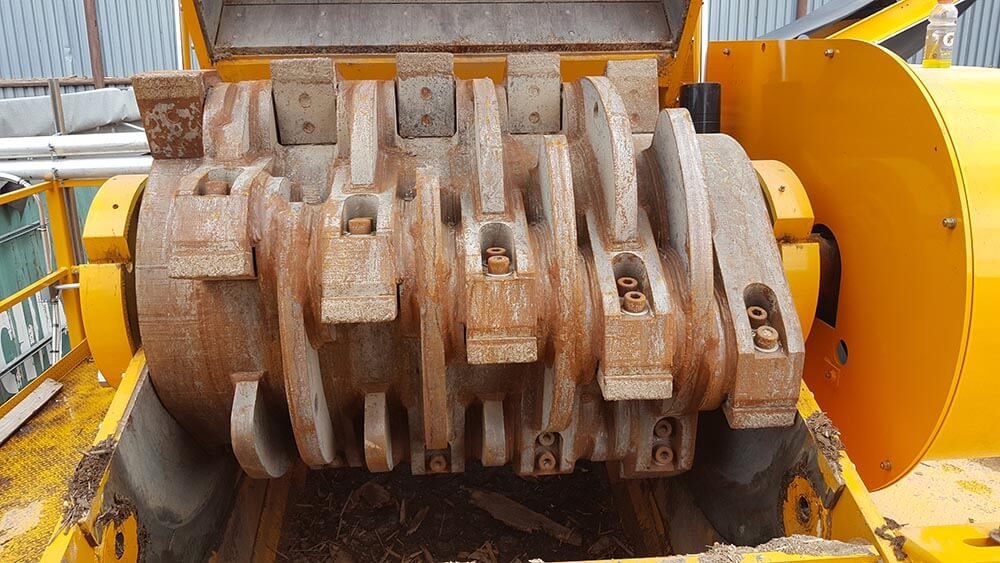

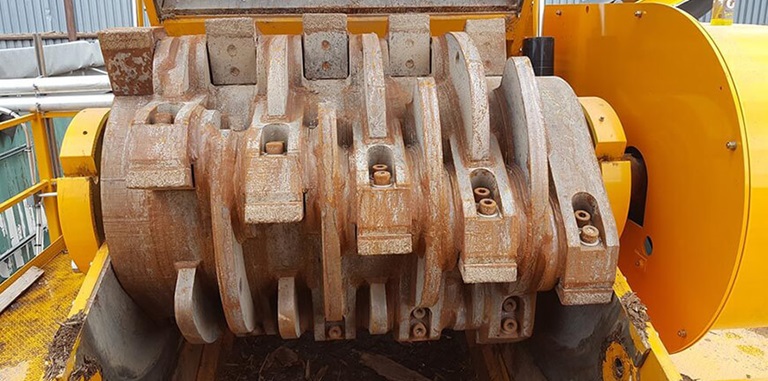

The Grizzly Mill comes with one of three optional extra heavy-duty, solid steel offset helix rotors with bolt-on strikers that shear material from two different directions against an anvil and grate completely eliminating uneven wear and side-loads on the rotor.

Technical Documentation

Measurements

Shaft 6" and 7" 152mm x 178mm
Rotor Diameter 36" and 48" 91cm and 121cm
Drum Length 36" - 72" 91 cm - 182 cm

Power

Engine 150hp - 1200hp 37kW - 894kW

Productivity

Motor 150hp - 1000hp 150hp - 1000hp

Product Details

Weight 15,000lbs - 46,000lbs 6,803kg - 20,865kg
