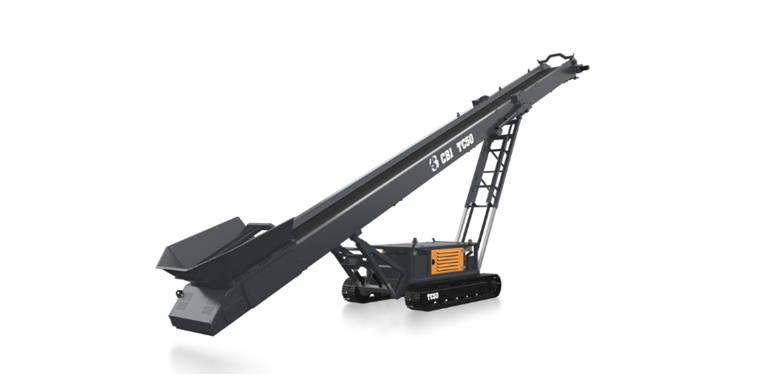

TC50

This 50' (15m) tracked conveyor delivers exceptional mobility and performance across demanding applications like wood waste, mulch, and biomass handling.Equipped with a robust 36" (900mm) wide belt, the TC50 moves material fast- uqp to 400-500 TPH depending on density. With a maximum discharge height of 22' 9" (6.93m), this conveyor can build stockpiles up to 802.8 yd³ (613.8 m³), keeping your grinder or chipper running longer and more efficiently.

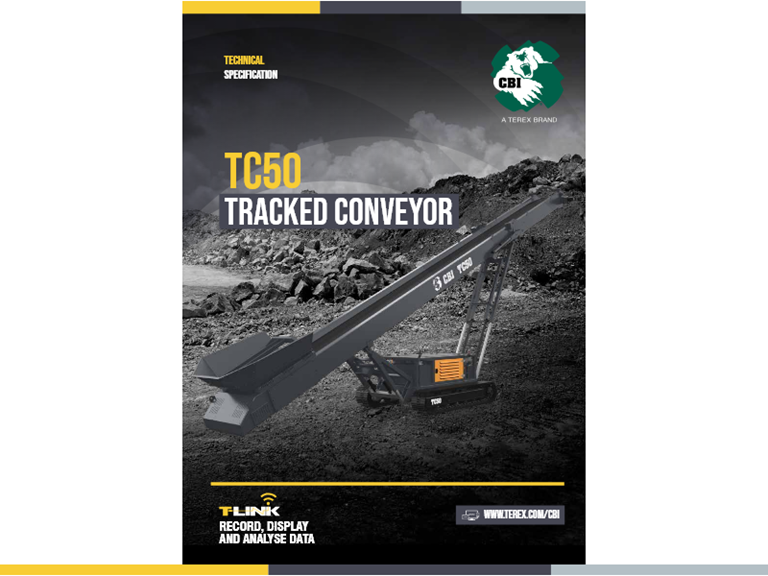

Technical Documentation

Measurements

Conveyor Length 50 ft 15 m 25 cm
Max Discharge Height 22' 9” @ 24° 6.93m @ 24°
Belt Width 36 Inches 914 mm

Transport Dimensions

Transport Height 8 ft 10 in 2 m 69 cm
Transport Width 7 ft 40 in 2 m 24 cm

Working Dimensions

Working Height 22'9" @ 24° 6.93m @ 24°
Working Width 7 ft 40 in 2 m 24 cm

Downloads
