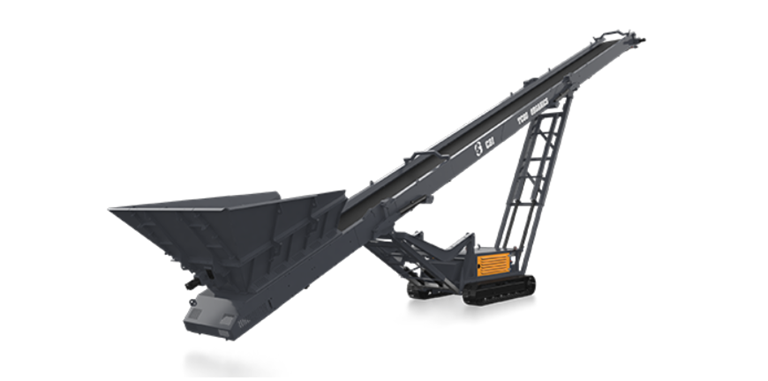

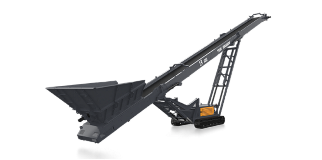

TC80 Organics

The TC80 Organics is a heavy-duty, 74' tracked conveyor engineered for high-volume stockpiling in organic waste, mulch, and biomass applications. With a 48" chevron belt, twin OMV 400cc motors, and variable speed control, it handles up to 600 TPH depending on material and density.



Its 11.31 yd³ (8.65 m³) feedboot with a wide 12' 2" (3.7 m) feed-in allows smooth loading, while flow-controlled augers enhance material regulation. Operating at angles up to 24°, the TC80 achieves a discharge height of 32' 10" (10 m) and can build stockpiles up to 2,412 yd³ (1,844 m³).



Built for performance and reliability, the TC80 Organics is the ultimate stacking solution for large-scale, mobile composting and biomass operations.



Technical Documentation

Transport Dimensions

Transport Width 8 ft 50 in 2 m 50 cm
Transport Height 13 ft 3 m 96 cm

Working Dimensions

Working Height 12'0'' @ 24° 13'0'' @ 24°
Working Width 12 ft 70 in 8 m 83 cm

Measurements

Conveyor Length 74 ft 20 in 22 m 60 cm
Max Discharge Height 32'10'' @ 24° 10m @ 24°
Belt Width 48 Inches 1200 mm
