WRC80

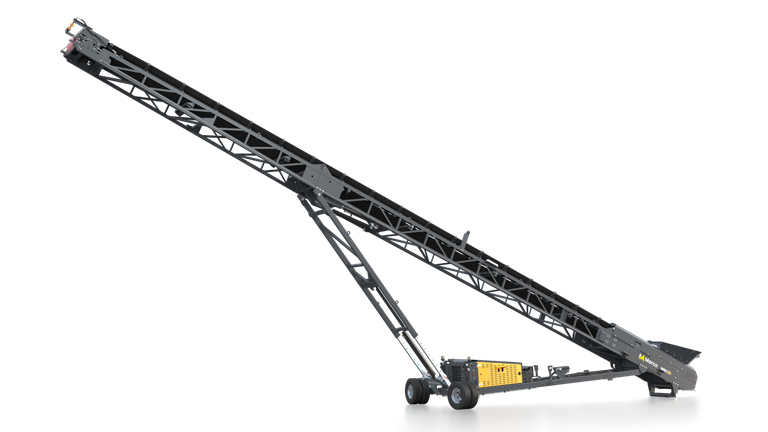

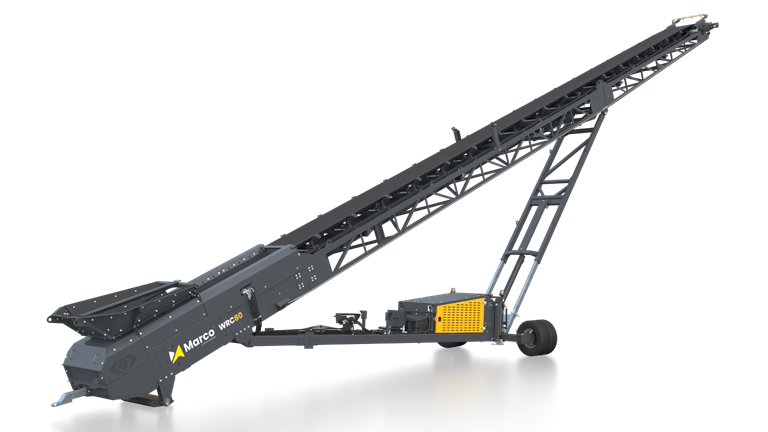

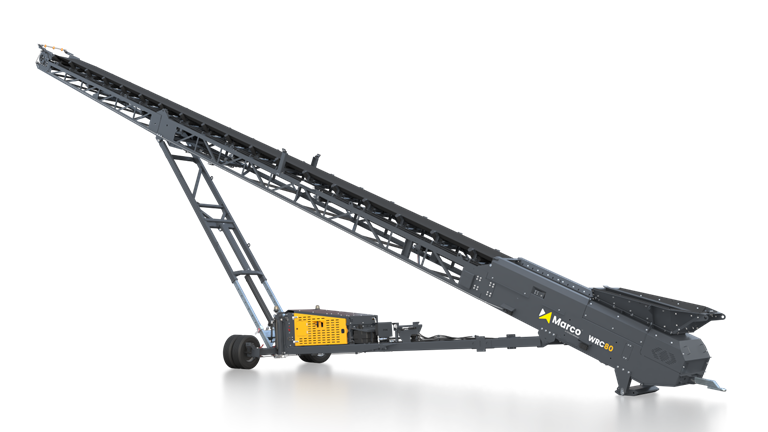

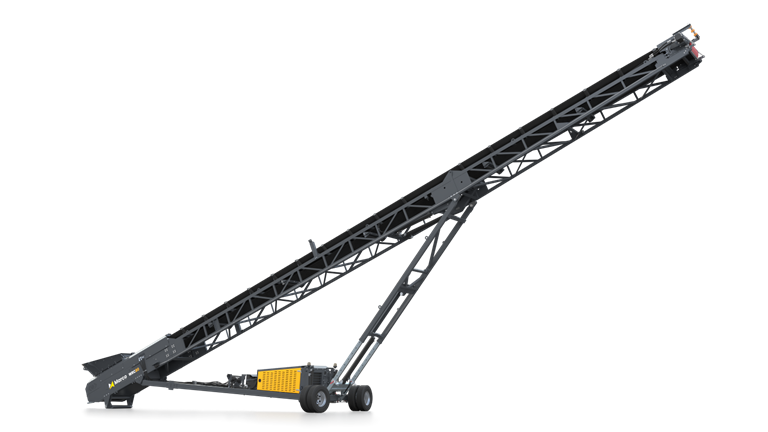

The Marco WRC80 Wheeled Radial Stockpiling Conveyor is the ideal solution for stockpiling material after mobile crushing and screening plants to build a stockpile and ensure a consistent quality product. It can also be integrated seamlessly into stationary plants.



Available in either Pit or Road towable variants, the WRC80 is a simple but efficient radial conveyor. The machine is powered via hydraulic drive plug-in as standard enabling it to be powered by secondary equipment on site. The machine can also be configured with either electric or diesel hydraulic drive systems.



The WRC80 features an optional radial hydraulic function, lattice design for increased strength and reduced weight. With a maximum discharge height of 32’ 7” (9.95m) when operated in conical mode the machine will stockpile 2544 tons (2313 Metric tons) of material. When configured to operate at 270° Kidney Bean mode the machine will stockpile tonne 22158 tons (20144 Metric tons) of material.

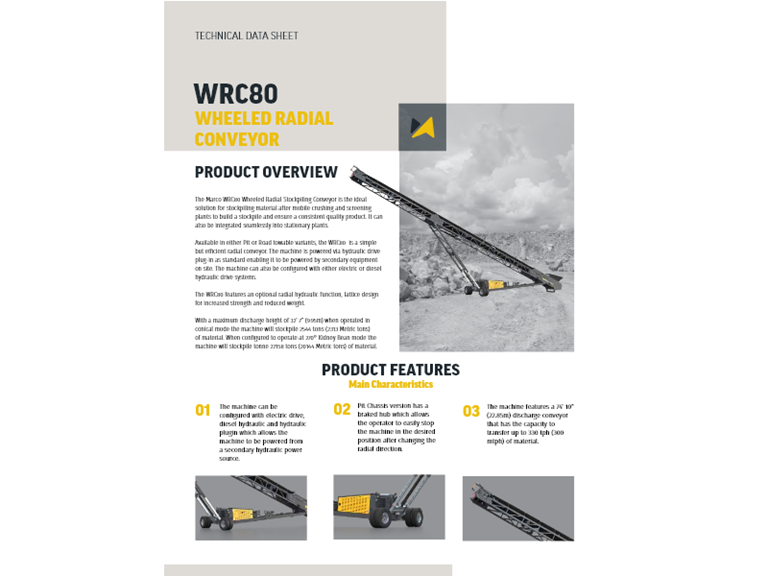

Technical Documentation

Measurements

Belt Width 36 " 900 mm
Conveyor Length 74 ft 10 in 22 m 85 cm
Max Capacity 330 US tph 300 tph
Maximum Discharge Height 30 ft 10 in 9 m 20 cm

Downloads

Specifications
