Products

Telescopic Conveyors

ProStack's Telescopic Conveyor range features five specifications that are capable of 270° of radial movement and up to 22° working angle.

ProStack’s ability to tailor our Telescopic Conveyors to suit any job is what sets us apart. Mobility, Conveyor Belt, Radio Remote Control and many other options including Roller and Pulley Lagging and Dust Containment systems are all available. With a multitude of tried and tested options available you can be sure your demands will be met.

TW 36-140

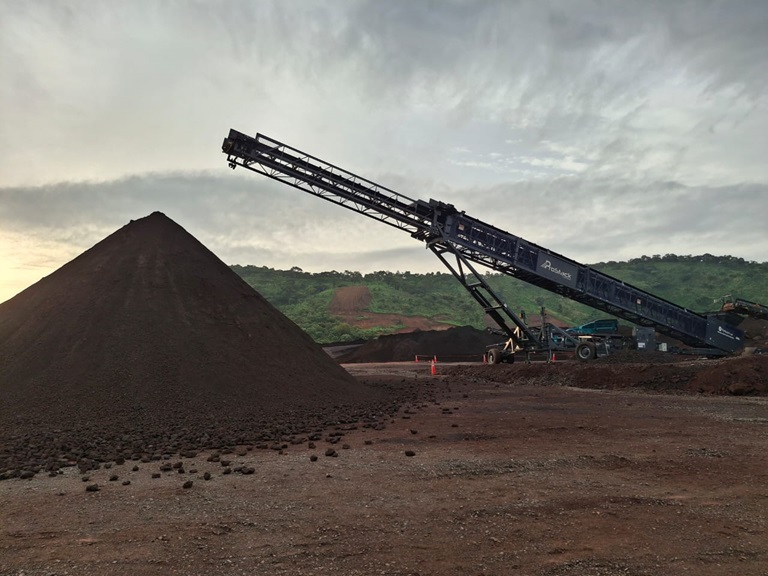

The Prostack TW 36-140 Rotating Telescopic Conveyor has a working length of 42 metres (140ft), 270° of radial movement and is available in multiple tonnage options - 400tph, 600tph and 800tph. A transport length of 27.4 metres (89ft) makes this a highly portable conveyor.

With a stockpile height of 14 metres (45ft) and maximum stockpile capacity of 100,000 tonnes the TW 36-140 provides a heavy duty solution to bulk material handling.

Features
  • Stinger Drive
  • Swing Axle Undercarriage
  • Folding Axle
  • Hydraulic Wheel Drives
  • Deployment Engine
  • On Board Hydraulic Powerpack
  • PLC Controller




Get a Quote

Technical Documentation

Productivity

Stockpile Capacity 72,920 yd³ @ 18° @ 270° 55,750 m³ @ 18° @ 270°
Rated Tonnage 400TPH (STD) 600TPH 800TPH (OPT)
Feedboot Capacity 1.4 CU YD 1.10 Metre cubed

Measurements

Transport Type Container (x3) / Road Towable Container (x3) / Road Towable
Transport Weight 27000 lbs 59525 kgs
Belt Width 36 Inches 900 mm
Conveyor Fully Extended 139 ft 3 in 42 m 45 cm
Transport Height 14 ft 2 in 4 m 33 cm
Inner Conveyor 2 x 7.5kw Bevel Helical Gearbox Drives 2 x 7.5kw Bevel Helical Gearbox Drives
Maximum Stockpile Height at 18° 14 ft 4 in 47 m 20 cm
Transport Length 89 ft 5 in 27 m 26 cm
Outer Conveyor 2 x 9.2kw Bevel Helical Gearbox Drives 2 x 9.2kw Bevel Helical Gearbox Drives
Transport Width 11 ft 4 in 3 m 46 cm

Power

Power Fully Electric Fully Electric
Download Specifications

Downloads

Brochures

.pdf ProStack Product Overview Brochure_c4897962-9609-4f27-8739-a6a4599abe9d
ProStack Product Overview Brochure
.pdf TW-36-140-Features-And-Benefits_a1225386-1625-4af2-b318-0a84c90d51fa

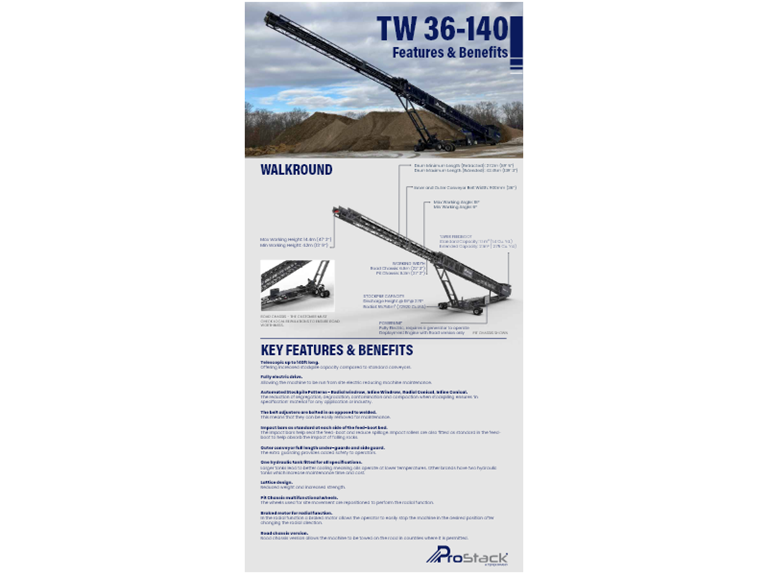

TW 36-140 Features & Benefits

Specifications

.pdf Prostack_Technical_Specification_TW 36-140_bbcbabfe-ae2b-40c3-8a9d-54d4e74e44dd
TW 36-140 Technical Specification
