Telescopic Conveyors

ProStack's Telescopic Conveyor range features four specifications that are capable of 270° of radial movement and up to 22° working angle.

ProStack’s ability to tailor our Telescopic Conveyors to suit any job is what sets us apart. Mobility, Conveyor Belt, Radio Remote Control and many other options including Roller and Pulley Lagging and Dust Containment systems are all available. With a multitude of tried and tested options available you can be sure your demands will be met.

TW 42-170

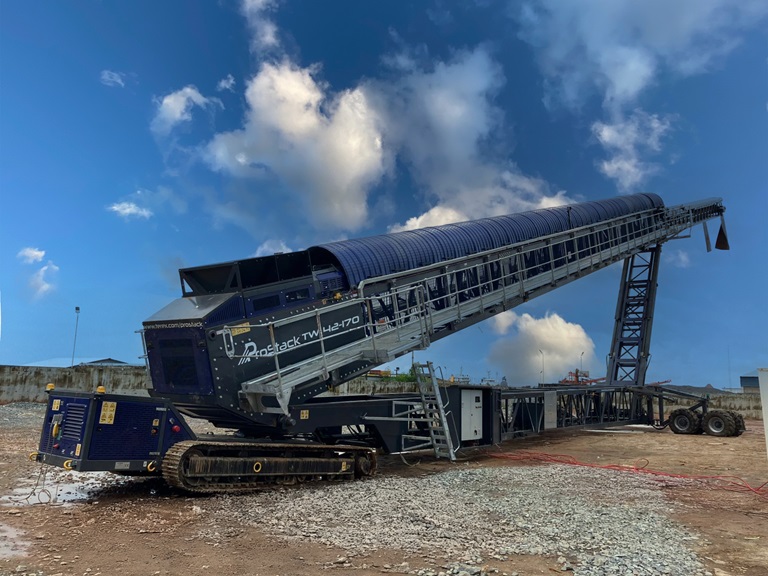

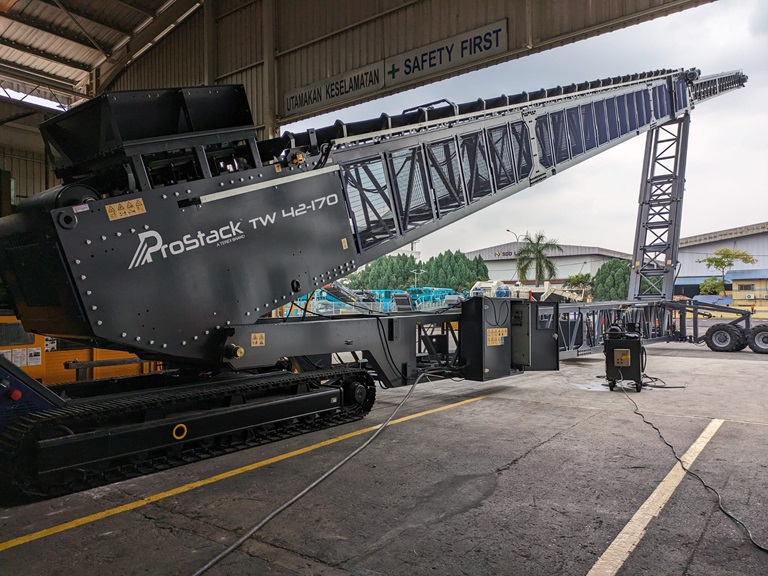

ProStacks TW 42-170 Telescopic Stockpiling Conveyor has a working length of 52 metres (170ft) and can be tailored to meet our customer's needs.


Capable of 270° of radial movement and a max working angle of 18° to allow for maximum stockpile capacity.


With a stockpile height of 17 metres (58ft) and maximum stockpile capacity of 92397m3 (120851 Cu.Yd.) the TW 42-170 provides a heavy-duty solution to bulk material handling.


The TW 42-170 stockpiling telescopic conveyor is suited to a wide variety of applications including mining, quarrying, ship loading and heap leaching.



Features

  • Stinger Drive
  • Swing Axle Undercarriage
  • Folding Axle
  • Hydraulic Wheel Drives
  • Deployment Engine
  • On Board Hydraulic Powerpack
  • PLC Controller

Download the Product Brochure below.

Get a Quote

Technical Documentation

Measurements

Stockpile Capacity 148,750 yd³ at 18° and 270° Radial 113,730 m³ at 18° and 270° Radial
Weight 99208 lbs 45000 kgs
Outer Conveyor 2 x 37kw Bevel Helical Gearbox Drives 2 x 37kw Bevel Helical Gearbox Drives
Transportation Type Container (x5) Container (x5)
Rated Tonnage 1000TPH (STD) 1500TPH (OPT)
Conveyor Fully Extended 168 ft 10 in 51 m 40 cm
Maximum Stockpile Height at 18° 59 ft 18 m
Inner Conveyor 2 x 30kw Bevel Helical Gearbox Drives 2 x 30kw Bevel Helical Gearbox Drives
Belt Width 42 Inches 1,200 mm
Feedboot Capacity 2.03 yd3 1.55 m3
Download Specifications

Downloads

Brochures

.pdf ProStack Product Overview Brochure_c4897962-9609-4f27-8739-a6a4599abe9d
ProStack Product Overview Brochure

Specifications

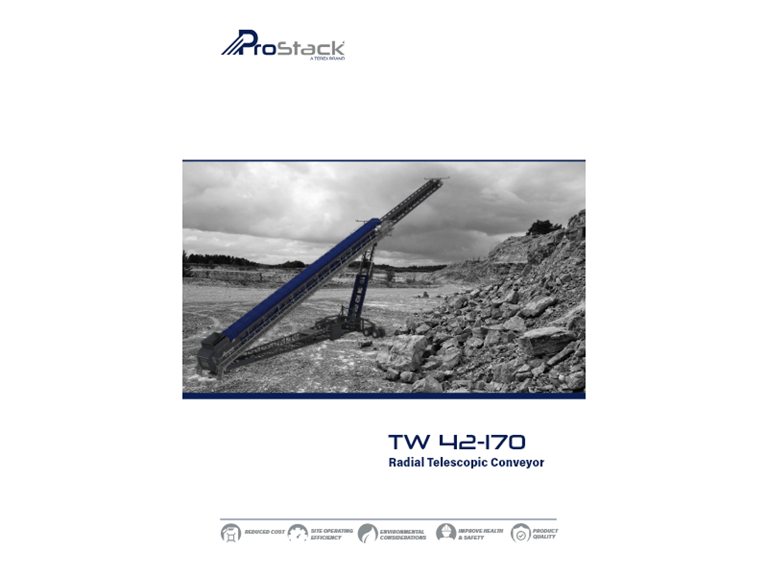

.pdf Prostack_Technical_Specification_TW 42-170_a5686cc3-b1ec-47cd-84a2-b12af797af21
TW 42-170 - Technical Specification
