Digger Derricks

Terex digger derricks have been the workhorse of the utility industry for more than 80 years. Terex digger derricks have two hydraulic lift cylinders to deliver superior stability and leading lifting capacity.

Digger Derricks
C4000 Series
C5000 Series
C6000 Series
General Series
Terex General 95 Digger Derrick Track Unit
Terex General 65 Digger Derrick
Terex General Series Digger Derrick
Terex General 65 Digger Derrick on road
Terex General Series Digger Derrick General 80
Terex General 80
Terex General 80 Digger Derrick
Terex General 80 Digger Derrick
Terex General 80 Digger Derrick mounted on track unit
Terex General 95 Digger Derrick Track Unit
Terex General 65 Digger Derrick
Terex General Series Digger Derrick
Terex General 65 Digger Derrick on road
Terex General Series Digger Derrick General 80
Terex General 80
Terex General 80 Digger Derrick
Terex General 80 Digger Derrick
Terex General 80 Digger Derrick mounted on track unit
  • Commander General

General 95

Terex General 95 Digger Derrick Track Unit
Terex General 65 Digger Derrick
Terex General Series Digger Derrick
Terex General 65 Digger Derrick on road
Terex General Series Digger Derrick General 80
Terex General 80
Terex General 80 Digger Derrick
Terex General 80 Digger Derrick
Terex General 80 Digger Derrick mounted on track unit
Images
Terex General 95 Digger Derrick Track Unit
Terex General 65 Digger Derrick
Terex General Series Digger Derrick
Terex General 65 Digger Derrick on road
Terex General Series Digger Derrick General 80
Terex General 80
Terex General 80 Digger Derrick
Terex General 80 Digger Derrick
Terex General 80 Digger Derrick mounted on track unit
Videos

Available models:

  • Commander General

General 95

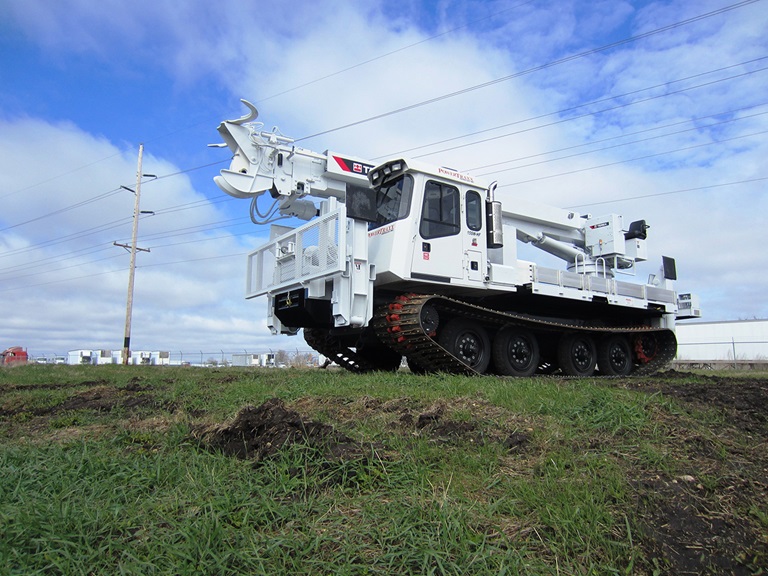

The Terex General 95 is known as the original digger truck to get the work done under the toughest working conditions. Both truck and track-mounted General Series digger derricks are core products for building and supporting the transmission grid. The General 95 leverages many Terex pioneered digger derrick design features such as trapezoidal dual hydraulic lift cylinders which work to stabilize the boom during digging and rotating; a retractable rectangular boom; and filament wound fiberglass third boom section.
  • Commander General

General 65 Max

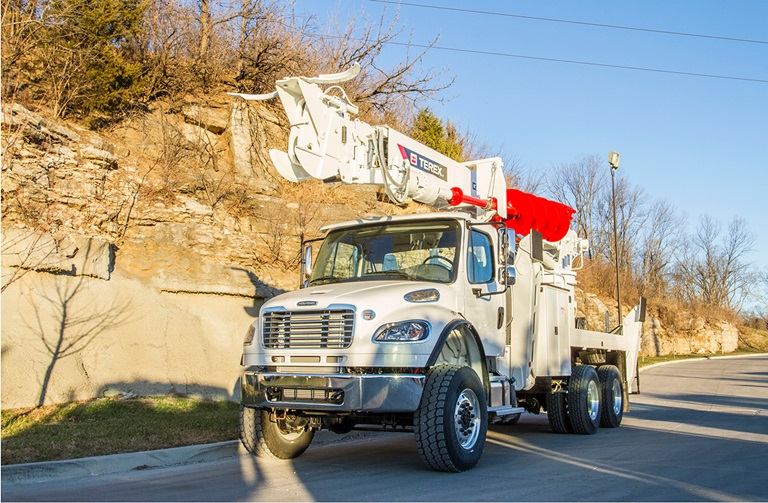

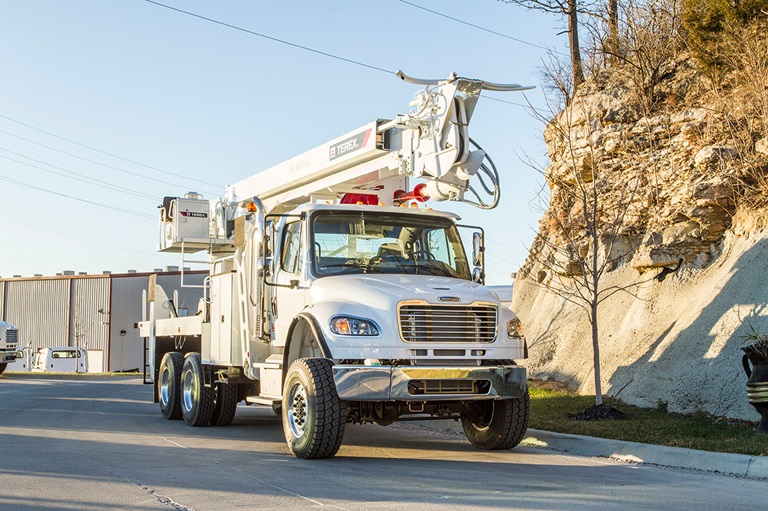

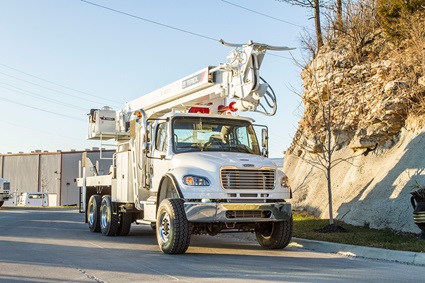

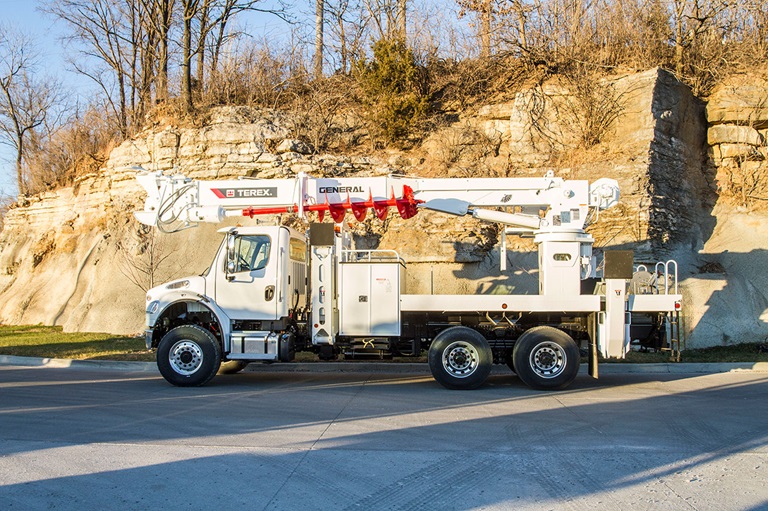

The strongest digger derrick in the transmission market - the Terex General 65 Max boasts greater capacities through all boom angles, but especially in the work zone. Whether the transmission crew needs low boom angles for digging holes and pulling a full auger flight of dirt, or unloading padmount transformers at high boom angles; the General 65 Max has superior lifting capacity in all positions. At zero degrees with the boom fully extended—which is the most challenging position to work from—the Terex General 65 Max digger derrick can lift nearly 2,000 pounds. It is important that a digger derrick can dig a hole, lift a full flight of dirt on the auger, and set the pole from one truck setup to keep crews productive. The General 65 Max leverages many Terex pioneered digger derrick design features such as trapezoidal dual hydraulic lift cylinders, which work to stabilize the boom during digging and rotating; a retractable rectangular boom; and filament wound fiberglass third boom section.



  • Commander General

General 80

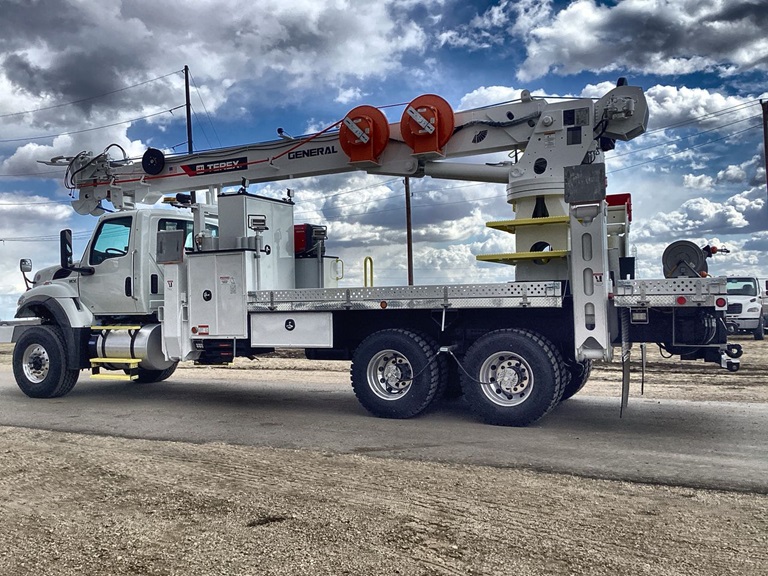

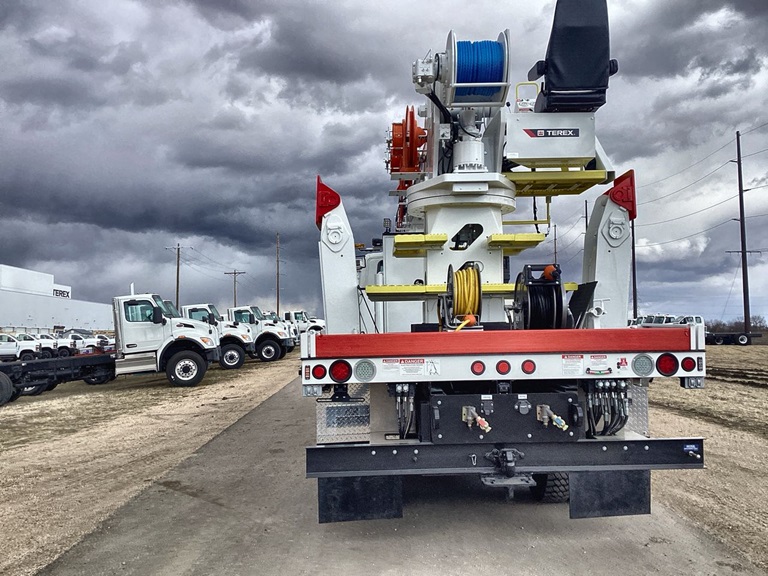

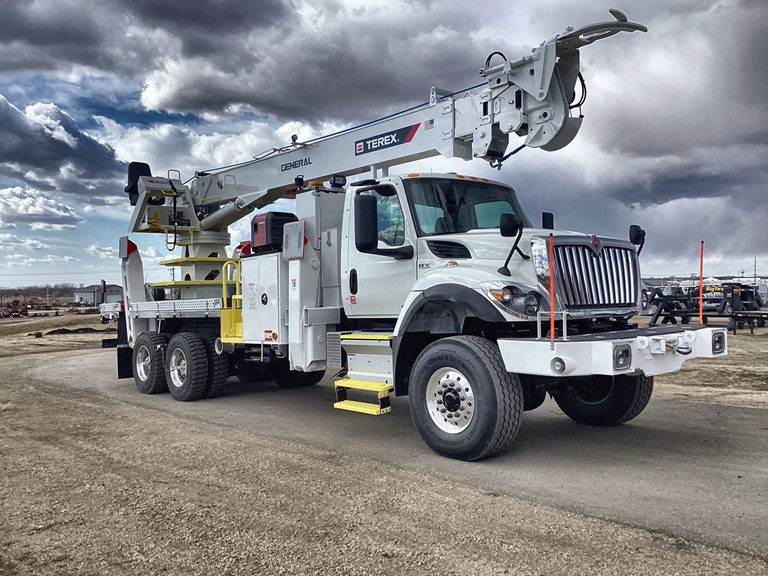

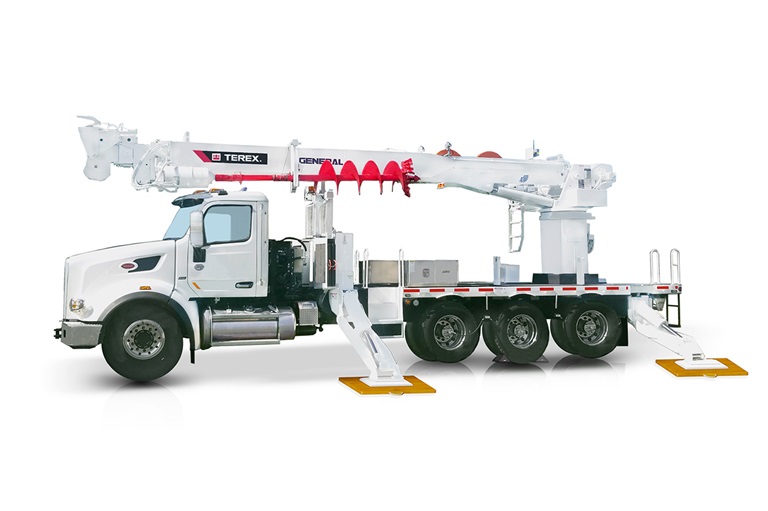

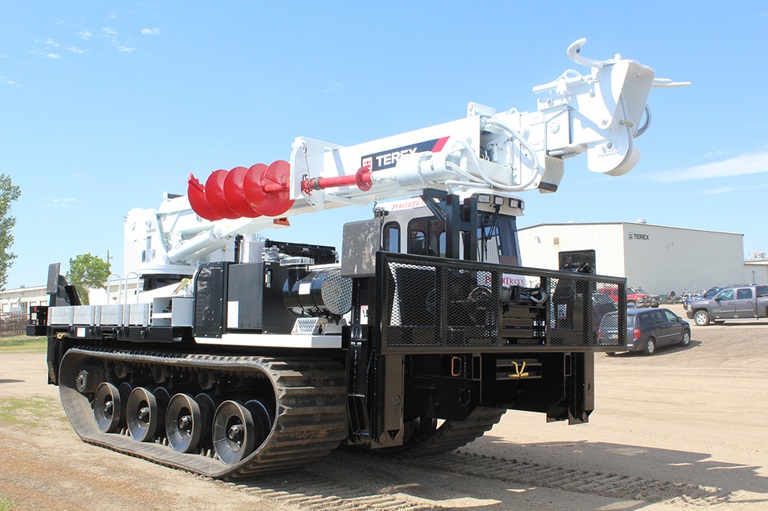

The Terex General 80 is known as the original digger truck to get the work done under the toughest working conditions. Both truck and track-mounted General Series digger derricks are core products for building and supporting the transmission grid. The General 80 leverages many Terex pioneered digger derrick design features such as trapezoidal dual hydraulic lift cylinders which work to stabilize the boom during digging and rotating; a retractable rectangular boom; and filament wound fiberglass third boom section.



Request A Quote
Send A Message
Terex Service

Technical Documentation

Measurements

Sheave Height 95 ft 29 m
Capacity at 10 ft. Radius 19830 lbs 8995 kg
Max Digging Radius 39 ft 4 in 13 m 50 cm
Max Capacity 35650 lbs 16171 kg

Downloads

Others

  • General Series Specification Sheet

Technical Documentation

Measurements

Max Capacity 46590 lbs 21133 kg
Sheave Height 65 ft 1 in 19 m 80 cm
Capacity at 10 ft. Radius 22620 lbs 10260 kg
Max Digging Radius 36 ft 4 in 11 m

Downloads

Others

  • General Series Specification Sheet

Technical Documentation

Measurements

Max Digging Radius 36 ft 9 in 11 m 20 cm
Sheave Height 80 ft 3 in 24 m 50 cm
Max Capacity 48790 lbs 22131 kg
Capacity at 10 ft. Radius 24320 lbs 11031 kg

Downloads

Others

  • General Series Specification Sheet

Related products

Terex General Series Digger Derrick General 80

General 80

Sheave Height 80 ft 3 in
Max Capacity 48790 lbs
Capacity at 10 ft Radius 24320 lbs
Max Digging Radius 36 ft 9 in
Terex General 65 Digger Derrick

General 65 Max

Sheave Height 65 ft 1 in
Max Capacity 46590 lbs
Capacity at 10 ft Radius 22620 lbs
Max Digging Radius 36 ft 4 in

Related products

Terex General Series Digger Derrick General 80

General 80

Sheave Height 80 ft 3 in
Max Capacity 48790 lbs
Capacity at 10 ft Radius 24320 lbs
Max Digging Radius 36 ft 9 in
Terex General 95 Digger Derrick Track Unit

General 95

Sheave Height 95 ft
Max Capacity 35650 lbs
Capacity at 10 ft Radius 19830 lbs
Max Digging Radius 39 ft 4 in

Related products

Terex General 65 Digger Derrick

General 65 Max

Sheave Height 65 ft 1 in
Max Capacity 46590 lbs
Capacity at 10 ft Radius 22620 lbs
Max Digging Radius 36 ft 4 in
Terex General 95 Digger Derrick Track Unit

General 95

Sheave Height 95 ft
Max Capacity 35650 lbs
Capacity at 10 ft Radius 19830 lbs
Max Digging Radius 39 ft 4 in
