FM 200 C-2G
Sand Processing Machine

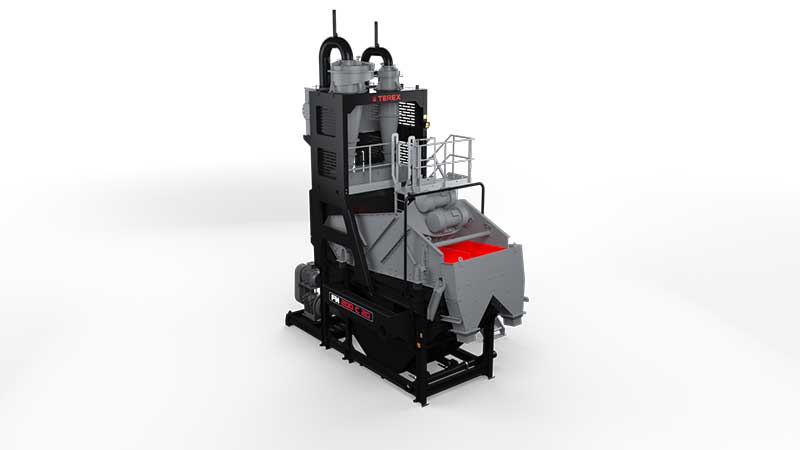

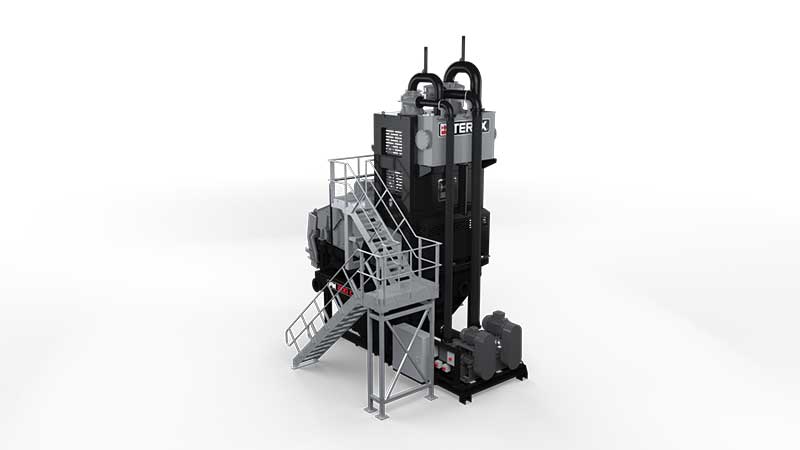

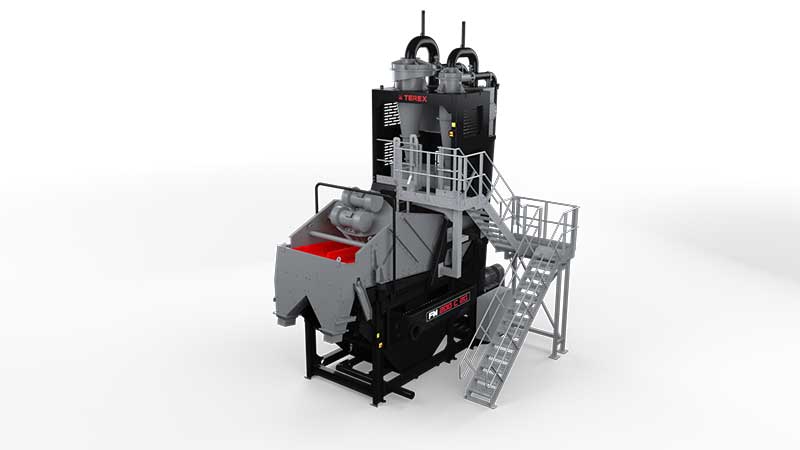

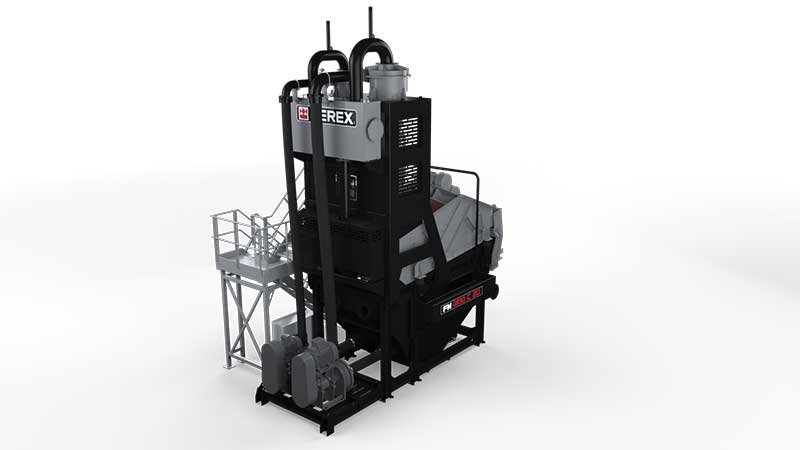

The FM 200 C-2G sand processing machine brings sand into specification through the use of centrifugal force within the cyclones to remove clay, silt and slime. This product combines a collection tank, centrifugal slurry pumps, hydrocyclones and a dewatering screen in one compact unit.
Producing two grades of sand with a throughput of approximately 100 to 200 tonnes per hour the FM 200 C-2G sand processing machine is an expertly engineered piece of equipment. As with the entire FM range the FM 200 C-2G can be fully integrated with all of the Terex Washing Systems product range.
FEATURES & BENEFITS
- Can recover 1 or 2 grades of sand from wet feed or bolt-on boiler box option for direct dry feed
- Maximum recovery of saleable material through the removal of silt, slimes and clays below 75μm (200 mesh)
- Robust and easy to assemble steel structure with galvanized walkways and handrails that provide easy access
- Reliable and requires minimal maintenance
- Self regulating cyclone tank makes day to day operation simple
- Compact design that makes for easy transportation
- Pumps & cyclones have replaceable rubber liners for extended wear life
- Residual water content is reduced to 10-15% with high frequency dewatering screen
- Fully electric system that is pre-wired to control panel or isolators if integrating with other machinery
| Specification | Value |
|---|---|
| Machine Height | 26'10" / 8200 |
| Machine Length | 22'7" / 6900 |
| Machine Width | 15'9" / 4800 |
