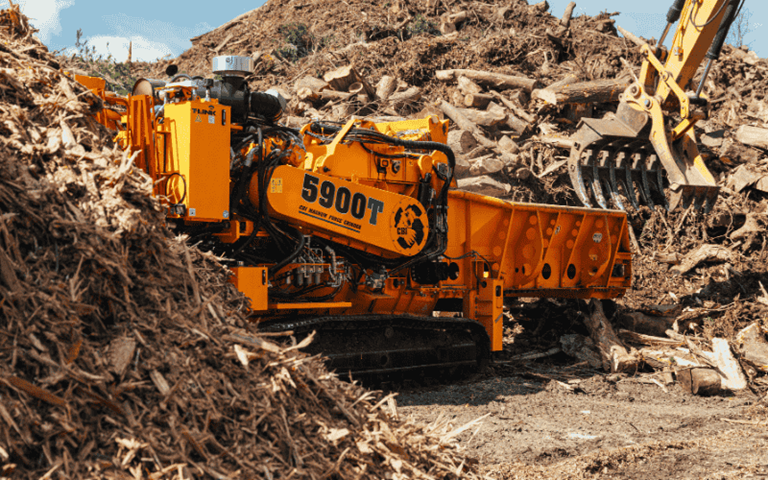

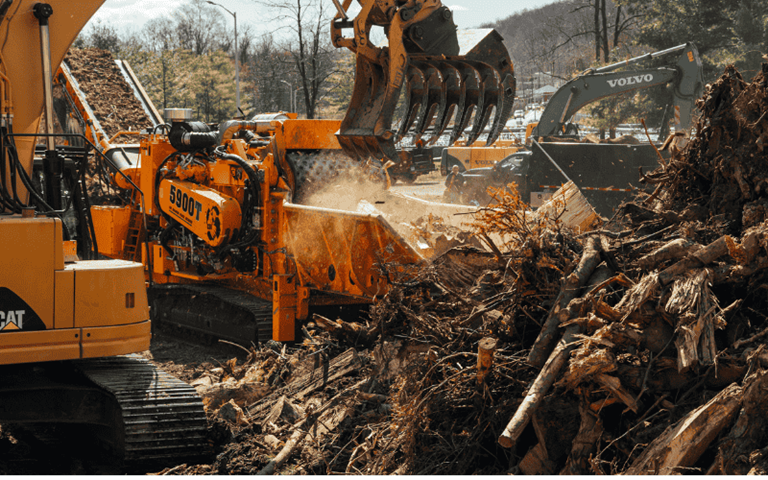

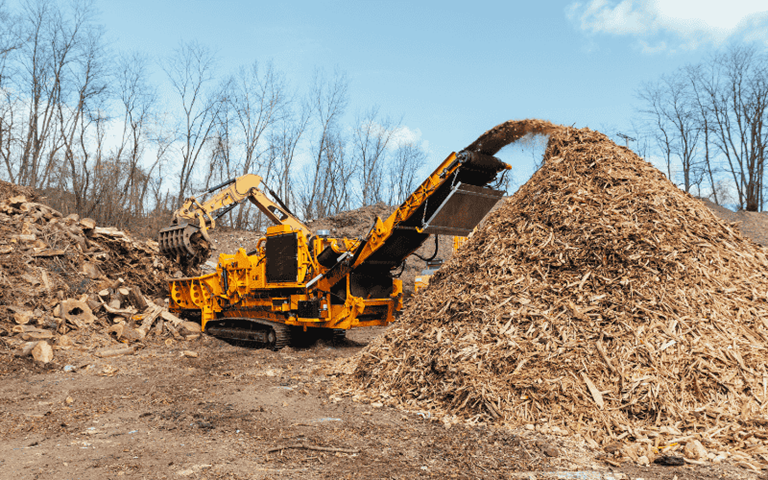

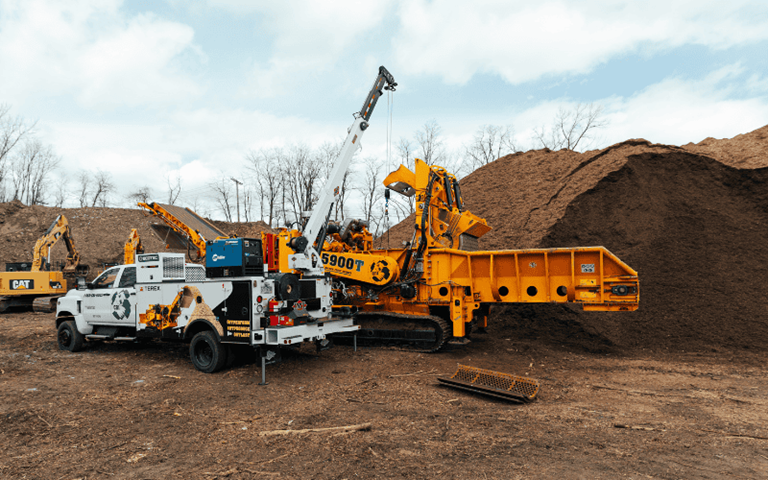

5900T



Designed as the first generation of the 5900T, this machine combines the best of both worlds, blending features from the traditional 6800 and the 5800. With its 60'' wide infeed rotor, the 5900T significantly enhances material flow, effortlessly handling wider material and reducing the need for pre-processing. Its 8’6” legal transport width and redesigned dolly system enhance mobility and transport efficiency, while the 755hp engine with hydraulic clutch delivers powerful, smooth performance and precise control. Built for easy maintenance, the 5900T features quick air filter removal and convenient engine access. The updated discharge system, equipped with multiple wear plates and a material-ejecting pulley, boosts durability and performance, making it a machine built for the toughest challenges.

Technical Documentation

Working Dimensions

Working Height 15 ft 60 in 4 m 72 cm
Working Width 8 ft 60 in 2 m 59 cm
Working Length 49 ft 40 in 15 m 30 cm

Product Details

Engine CAT, Diesel C18 755-HP (570kW), Tier 4 Final Option: SCANIA DC16 770HP T4F CAT, Diesel C18 755-HP (570kW), Tier 4 Final Option: SCANIA DC16 770HP T4F
Rotor Size Width: 40" Diameter: 60" Shaft: 6'' Hammers: 24 Width: 106cm Diameter: 153.4cm Shaft: 15.2cm Hammers: 24
Weight 80,000lbs - 86,000lbs (depending on options) 36,287kg - 39,009kg (depending on options)

Transport Dimensions

Transport Height 11 ft 3 m 30 cm
Transport Length 40 ft 10 in 12 m
Transport Width 8 ft 60 in 2 m 50 cm

Measurements

Discharge Width 4 ft 1 m 22 cm
Infeed Width 5 ft 1 m 52 cm

Productivity

Hydraulic Tank Capacity 50 Gallons 183 L

Power

Clutch HPTO15 HPTO15
