Products

Tracked Feeder Conveyors

The ProStack Tracked Feeder range is made up of tracked feeders in both high level and low level specifications. Heavy duty tracks as standard make these conveyors highly portable and versatile enough for many different applications. Each machine is easily transported while select models feature rotating undercarriages.

A wide variety of options are available so that each track mounted conveyor can be tailored to individual customers needs.

HF 50

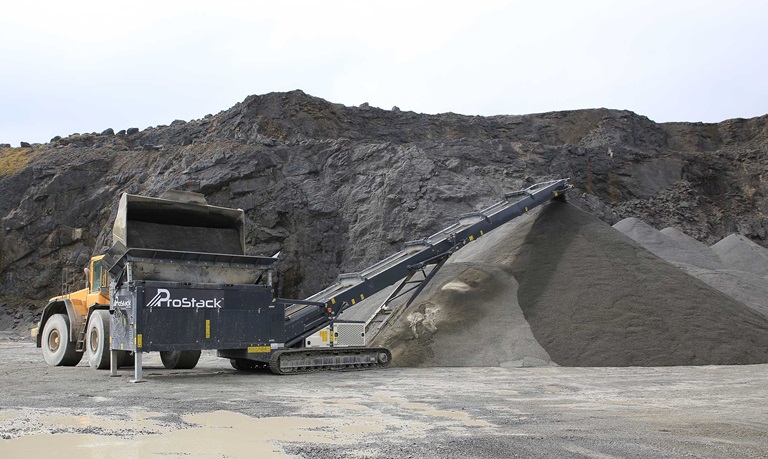

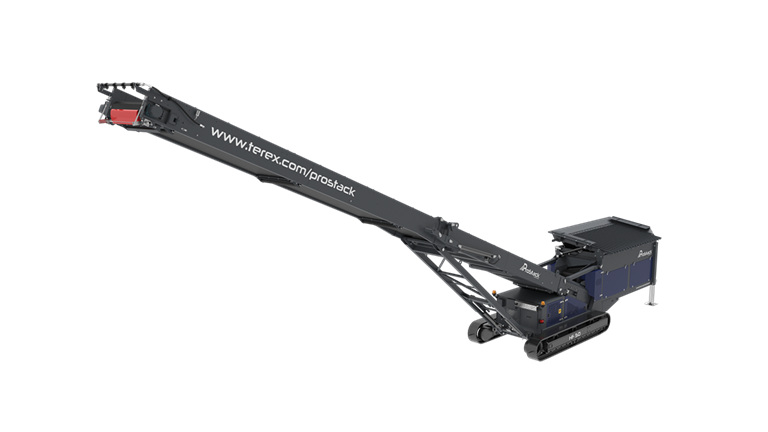

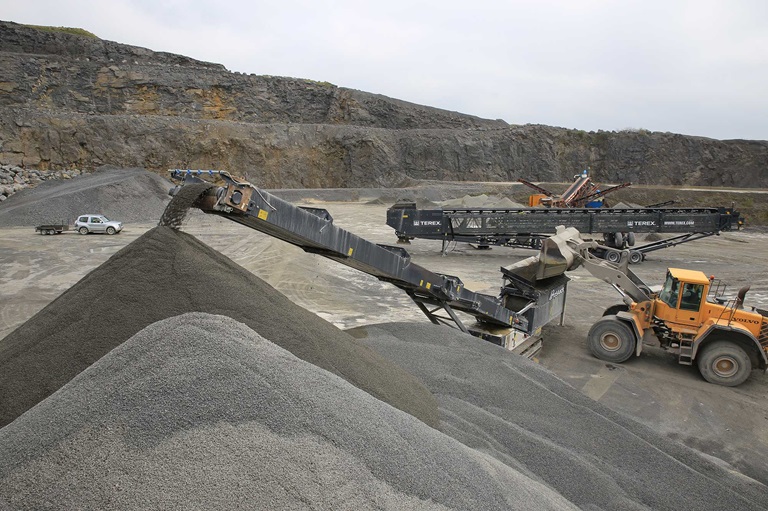

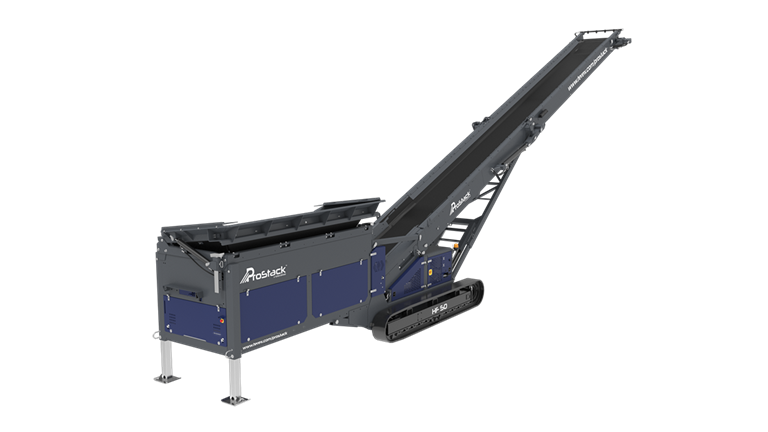

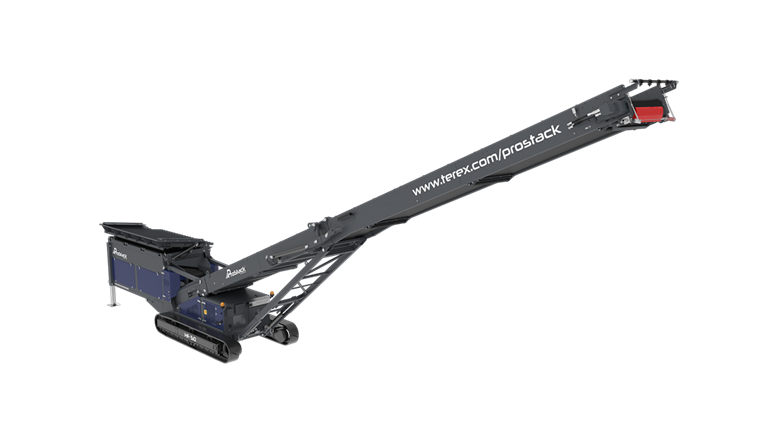

ProStack's HF 50 High Level Tracked Feeder Conveyor has a high level of portability and is suited to almost any working environment. Stockpile directly from crushers, screeners or other material sources, remove the need for double handling of material and greatly reduce site traffic.

The HF 50 is a robust machine offering superior strength and can easily achieve an output of 450tph. Options include a choice of a 4-, 5- or 6-inch tipping grid, allowing for the removal of oversize materials and resulting in a better-quality product. There is also an option of a single deck vibrating grid and the machine can produce two separate products to fully meet customer needs. There is a regulated flow of material from the feeder at discharge point, which is ideal for operations where surging is a problem.

Key applications include quarrying, aggregates, mining and ports.



Technical Documentation

Measurements

Maximum Discharge Height 23 ft 8 in 7 m 20 cm
Belt Width 42 Inches 1050 mm
Transport Weight 27557 lbs 15500 kgs
Rated Tonnage 496 US tph 450 tph
Conveyor Length 51 ft 2 in 15 m 60 cm

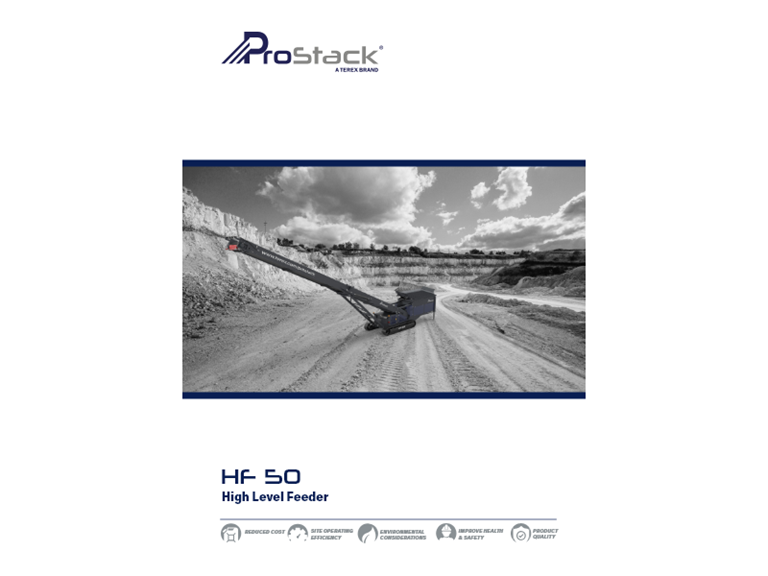

Downloads

Specifications
