Tracked Feeder Conveyors

The ProStack Tracked Feeder range is made up of tracked feeders in both high level and low level specifications. Heavy duty tracks as standard make these conveyors highly portable and versatile enough for many different applications. Each machine is easily transported while select models feature rotating undercarriages.

A wide variety of options are available so that each track mounted conveyor can be tailored to individual customers needs.

HF 75

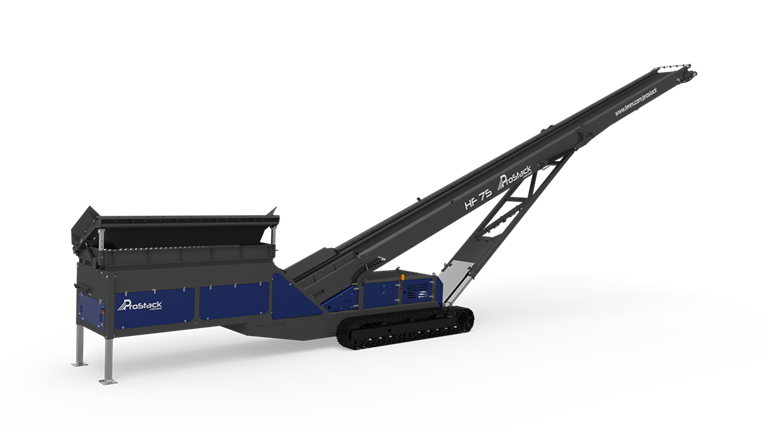

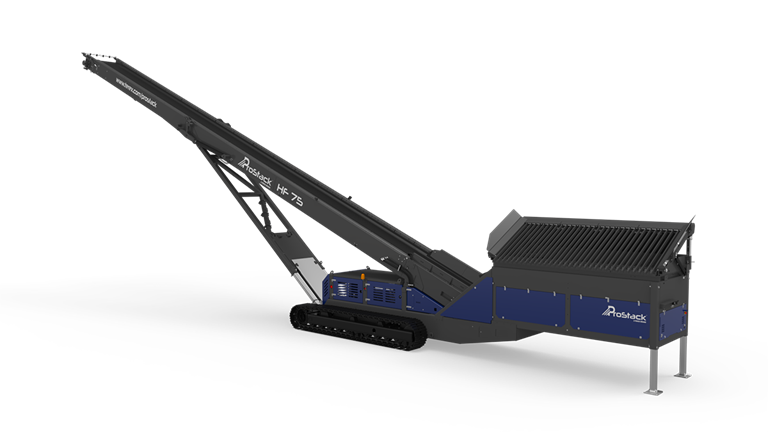

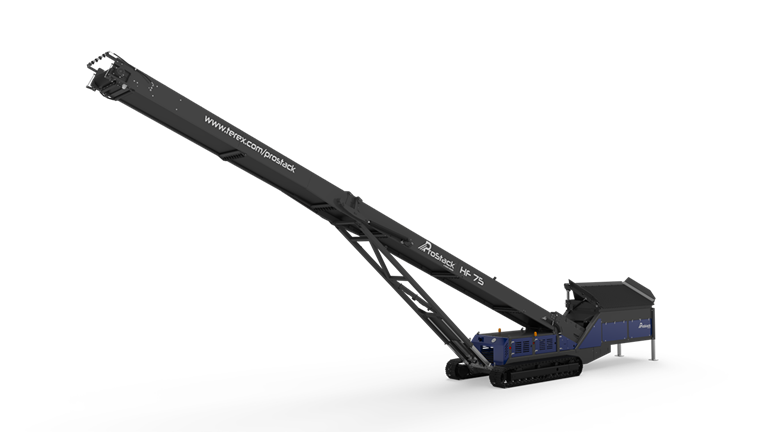

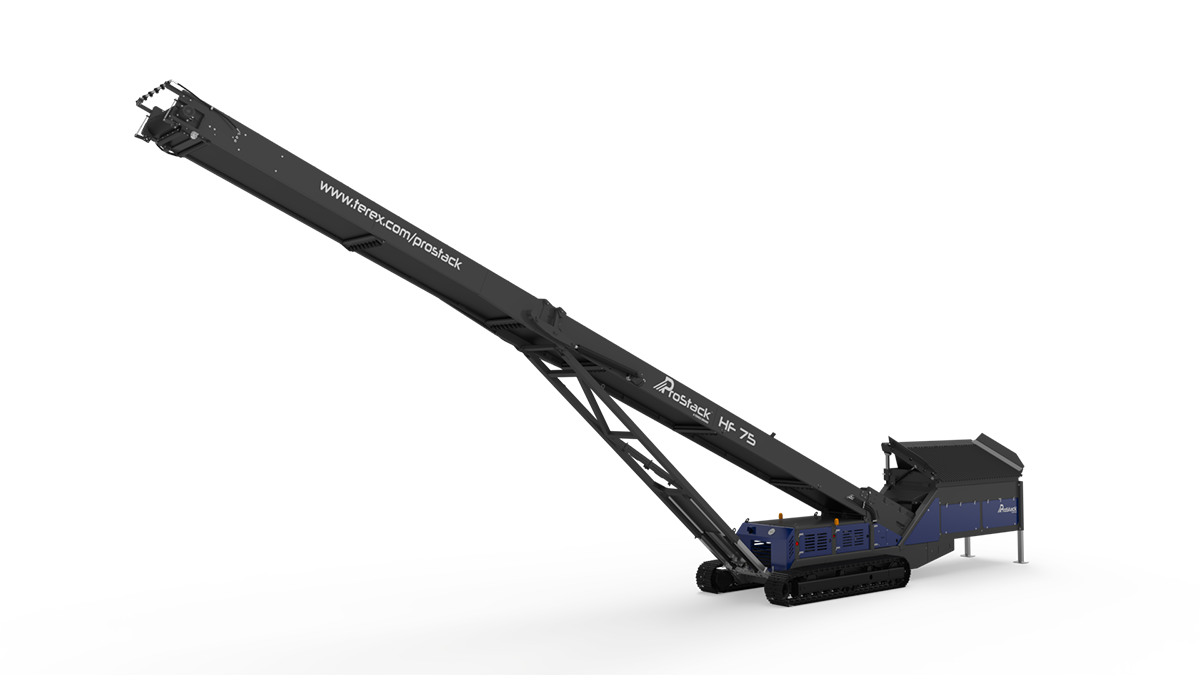

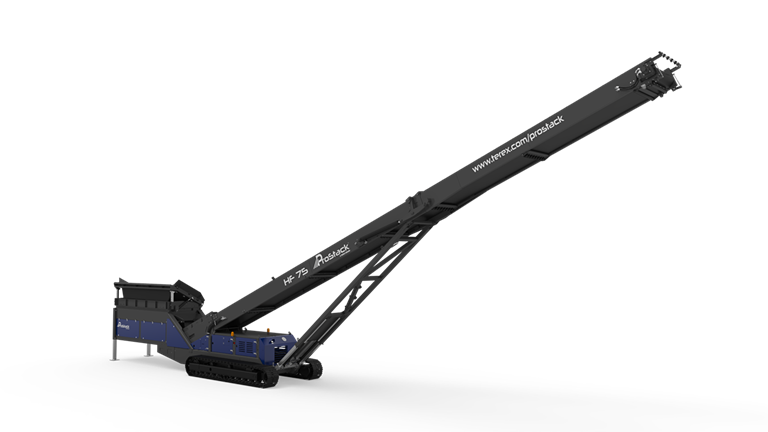

The ProStack HF 75 is a High Level Tracked Feeder Conveyor with a belt length of 22.5 metres and a belt width of 1.2 metres.

This conveyor has a high level of portability and is suited to almost any working environment. Stockpile directly from crushers, screeners or other material sources, remove the need for double handling of material and greatly reduce site traffic with the ProStack HF 75 track mounted conveyor.

Features
  • Highly portable
  • Easily transported
  • Can be tailored to suit customers needs
  • Undercarriage with heavy duty tracks
  • Max stockpile capacity of 1735m³
  • Feed Conveyor capacity of 8m³
The ProStack HF 75 has been specifically designed to work alongside other Terex machines.

Download the Product Brochure below.

Get a Quote

Technical Documentation

Measurements

Maximum Discharge Height 34 ft 4 in 10 m 50 cm
Conveyor Length 73 ft 10 in 22 m 50 cm
Belth Width 48 Inches 1200 mm

Productivity

Max Capacity 661 US tph 600 tph
Download Specifications

Downloads

Brochures

.pdf ProStack Product Overview Brochure_c4897962-9609-4f27-8739-a6a4599abe9d
ProStack Product Overview Brochure

Specifications

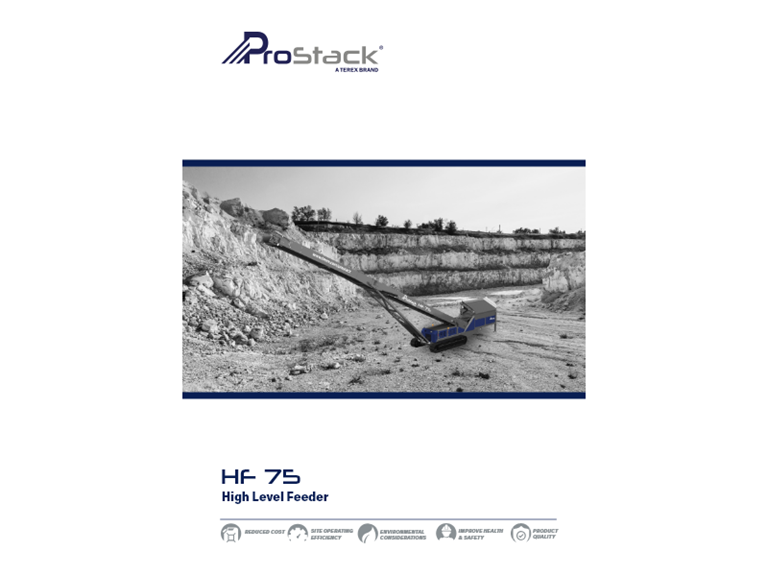

.pdf Prostack_TS_HF 75_dc8f227b-eda0-4f74-857f-e3276765c22d
HF 75 - Technical Specification
