HLF75 Orbital

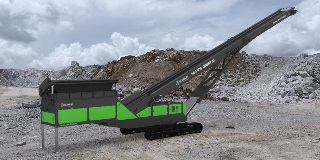

The EvoQuip HLF75 Orbital high level feeder permits operators to directly discharge to the hopper/feeder from excavators or wheel loaders eliminating double handling of material on site. The rotating undercarriage allows the conveyor to rotate a full 360° which provides increased versatility on site. It can be used for a ‘metered or controlled’ feed of material when working as part of a crushing and screening train or in standalone applications.
Get a Quote
Sign Up
Order Parts

Technical Documentation

Measurements

Belt Width 0 ft 48 in 1 m 20 cm
Max Discharge Height 32’ 2’’@ 24⁰ 9.8 m @ 24⁰
Conveyor Length 73 ft 10 in 22 m 50 cm
