Conveyors

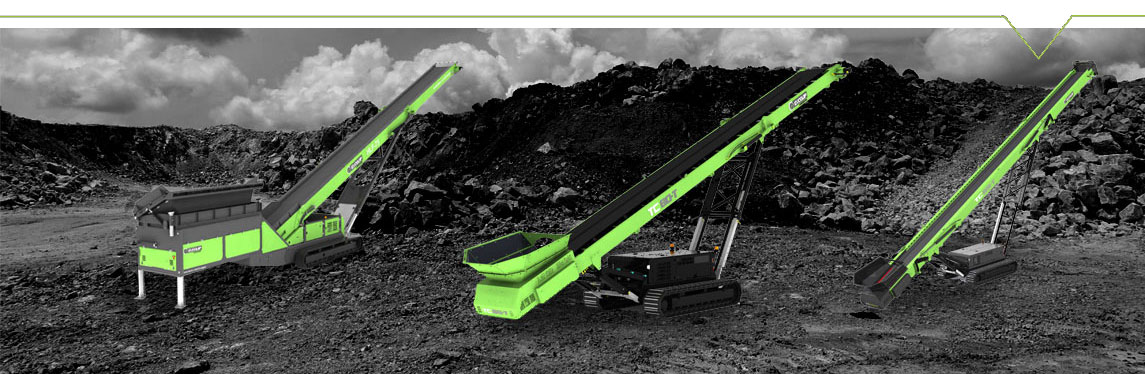

Conveyor Product Range Header

EvoQuip's range of Tracked Mobile Conveyors, high and low level feeders and radial stockpilers are designed to work with our range of Crushing and Screening Machines. Each of our conveyors provide rapid set up times, ease of transport and high performance in every application make our conveyor range suitable for a number of industries.

  • EvoQuip TC65

    TC65 | Tracked Conveyor

    The EvoQuip range of mobile conveyors are designed to work in conjunction with the entire range of EvoQuip crushing and screening equipment. Using conveyors means increased stockpile capacity and reduces on-site material handling. For convenience and to keep shipping costs low, EvoQuip conveyors can be transported in a 40ft container. The range includes 65ft and 80ft track mobile conveyors: TC65 and TC80.

    Specification Value
    Conveyor Length 64’ 11” 19.79m
    Belt Width 42” 1050mm
    Max Discharge Height 31' @ 28° 9.45m @ 28°
    Learn more
  • Right hand side view of the TC80

    TC80 | Tracked Conveyor

    The EvoQuip range of mobile conveyors are designed to work in conjunction with the entire range of EvoQuip crushing and screening equipment. Using conveyors means increased stockpile capacity and reduces on-site material handling. For convenience and to keep shipping costs low, EvoQuip conveyors can be transported in a 40ft container. The range includes 65ft and 80ft track mobile conveyors: TC65 and TC80.

    Specification Value
    Conveyor Length 74’ 10" 22.8m
    Belt Width 42” 1050mm
    Max Discharge Height 34’ 11” @ 25° 10.41m @ 25°
    Learn more
  • Evoquip TC100 render

    TC100 | Tracked Conveyor

    The EvoQuip TC100 stockpiler, builds on the hugely successful EvoQuip TC65 & TC80 conveyors. The extra length of conveyor, and increased power, allows for maximum mobility and flexibility, reducing or eliminating the use of wheeled loaders on site. The conveyor can cope with all applications, from light duty screened material, through to jaw applications. The Conveyor is 100ft long and still retains the ability to be transported worldwide in a 40ft container.

    Specification Value
    Conveyor Length 98' 9" 30.1m
    Belt Width 42” 1050mm
    Max Discharge Height 43' 11" @ 26° 13.38m @ 26°
    Learn more
  • Right hand side view of the TC 75R

    TC 75R | Tracked Radial Conveyor

    The EvoQuip TC75R tracked radial stockpiling conveyor is the ideal solution for stockpiling after mobile crushing and screening plants. The mobility and flexibility of the radial stockpiling conveyors reduces the use of a wheel loader on site. The conveyors ensure all applications are catered for from the easiest, right through to the hardest.

    Specification Value
    Conveyor Length 75' 1" 22.9m
    Belt Width 42” 1050mm
    Max Discharge Height 34' 9" @ 23° 10.9m @ 23°
    Learn more
  • Right hand side view of the WC80

    WC80 | Radial Conveyor

    The WC80 radial conveyor is designed to be one of the most cost efficient and effective ways of stockpiling material on the market. Available in either Pit or Road towable variants, the WC80 offers a variety of different options which means it can meet the requirements of almost all applications. This simple but efficient radial conveyor is available in both electric and hydraulic drive systems and can be tailored to meet operator needs. Key applications include quarrying, aggregates and mining.

    Specification Value
    Conveyor Length 54'3" 16.55m
    Belt Width 36" 0.91m
    Max Discharge Height 32'7" 9.95m @ 23°
    Learn more
  • EvoQuip HLF75 High Level Feeder

    HLF 75 | High Level Feeder

    The EvoQuip HLF75 high level feeder, combines the highly versatile feeder system and stockpiling conveyor, allowing the operator to directly discharge from wheel loaders to reduce the amount of material handling on site. The fully mobile units can be used for a ‘metered or controlled’ feed of material into any EvoQuip products or other machines.

    Specification Value
    Conveyor Length 73' 10" 22.5m
    Belt Width 48" 1200mm
    Max Discharge Height 32" @ 24° 9.8m @ 24°
    Learn more
  • Seventy Five Foot Low Level Feeder Conveyor

    LLF 75 | Low Level Feeder

    The EvoQuip LLF75 low level feeder allows the operator to directly discharge from wheel loaders and excavators at a significantly lower feed in height compared to standard hopper feeders. The unique design of the hopper allows for rear feeding which can be an advantage when operating in restricted areas.

    Specification Value
    Conveyor Length 73'10" 22.5m
    Belt Width 51" 1300mm
    Max Discharge Height 32’ 2” 9.8m
    Learn more
  • HLF75 High Level Feeder Orbital Conveyor

    HLF75 Orbital | High Level Feeder

    The EvoQuip HLF75 Orbital high level feeder permits operators to directly discharge to the hopper/feeder from excavators or wheel loaders eliminating double handling of material on site. The rotating undercarriage allows the conveyor to rotate a full 360° which provides increased versatility on site. It can be used for a ‘metered or controlled’ feed of material when working as part of a crushing and screening train or in standalone applications.

    Specification Value
    Conveyor Length 73’ 10” 22.5m
    Belt Width 48’' 1200mm
    Max Discharge Height 32’ 2’’@ 24⁰ 9.8m
    Learn more
  • LLF75 Orbital Conveyor

    LLF75 Orbital | Low Level Feeder

    The EvoQuip LLF75 Orbital low level feeder features a rotating undercarriage which allows the conveyor to rotate a full 360° to provide increased versatility on site. With unrivalled portability and durability, the LLF75 Orbital can operate in a wide variety of working environments. This conveyor can be integrated with crushers and screeners to stockpile material directly from the source. Site traffic will also be reduced, and it will remove the need for double handling of material. The machine can also be used as a mobile link conveyor.

    Specification Value
    Conveyor Length 73’ 10” 22.5m
    Belt Width 51” 1300mm
    Max Discharge Height 35’ 10.7m
    Learn more
  • EvoQuip LLF50 Conveyor

    LLF 50 | Low Level Conveyor

    The EvoQuip LLF 50 can be fed from three sides, allowing the operator to have greater versatility when loading the hopper. Hopper extensions can be deployed via hydraulics with support arms fitted. This removes the need for manual bolting of the hopper, which enables a faster set up time. Operators will have an unregulated flow of material from the feeder, resulting in improved handling of difficult material and elimination of feeder blockages. An optional feed hopper outlet door is fully adjustable, allowing the operator to control the amount of material passing from the feed conveyor to the discharge conveyor.

    Specification Value
    Conveyor Length 51' 2" 15.6m
    Belt Width 42" 1050mm
    Max Discharge Height 24'2" 7.37m
    Transport Weight 29,189lbs 13,240kgs
    Learn more
  • Evoquip HLF50 Conveyor

    HLF 50 | High Level Conveyor

    The EvoQuip HLF 50 is a robust machine offering superior strength and can easily achieve an output of 450tph. Options include a choice of a 4-, 5- or 6-inch tipping grid, allowing for the removal of oversize materials and resulting in a better-quality product. There is also an option of a single deck vibrating grid and the machine can produce two separate products to fully meet customer needs. There is a regulated flow of material from the feeder at discharge point, which is ideal for operations where surging is a problem.

    Specification Value
    Conveyor Length 51' 2" 15.6m
    Belt Width 42" 1050mm
    Max Discharge Height 23'8" 7.2m
    Transport Weight 27,557lbs 15,500kgs
    Learn more
  • EvoQuip High Level Feeder 75 Organics

    HLF75 Organic | High Level Feeder

    The EvoQuip HLF75 Organic feeder has been engineered specifically for the stockpiling and aerating of lower density, bulky materials such as soils, mulch, biomass and compost. Specifically designed organics hopper improves material flow eliminating bridging and ensures efficient movement of materials whilst the auger at the hopper outlet provides aeration and untangling solution therefore minimizing fluctuations in bulk density of organic materials.

    Specification Value
    Conveyor Length 74’ 2” 22.6m
    Belt Width 48’' 1200mm
    Max Discharge Height 32’ 2’’ @ 24⁰ 9.8m @ 24°
    Learn more
  • Evoquip HLF75 Organics Orbital High Level Feeder

    HLF75 Organic Orbital | High Level Feeder

    The EvoQuip HLF75 Organic Orbital feeder features a rotating undercarriage providing increased versatility and is ideal for stockpiling and aerating of lower density, bulky materials such as soil, mulch, biomass and compost. Located at the hopper outlet, the auger provides aeration and an untangling solution for organic materials. The auger flips, rotates and regulates the flow of material minimising fluctuations in the bulk density of organic materials and is equipped with replaceable hardened paddle wear plates.

    Specification Value
    Conveyor Length 73’ 10” 22.5m
    Belt Width 48’' 1200mm
    Max Discharge Height 32’ 2’’ @ 24⁰ 9.8m
    Learn more
