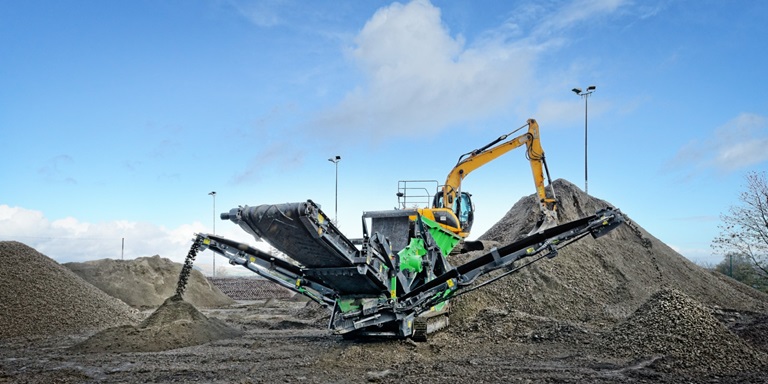

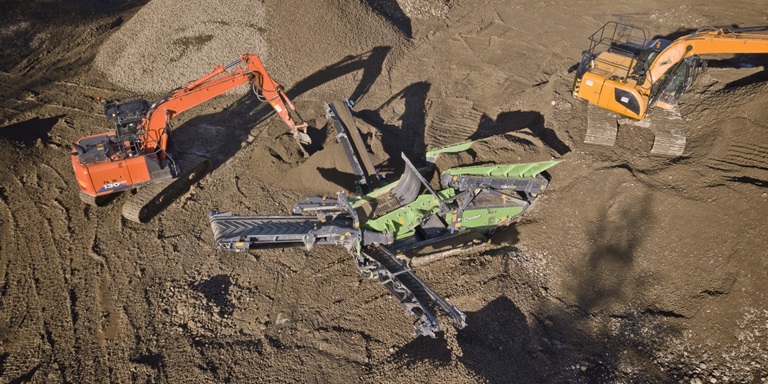

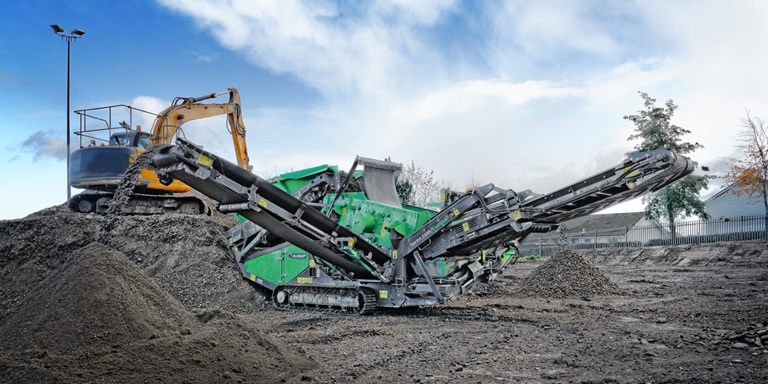

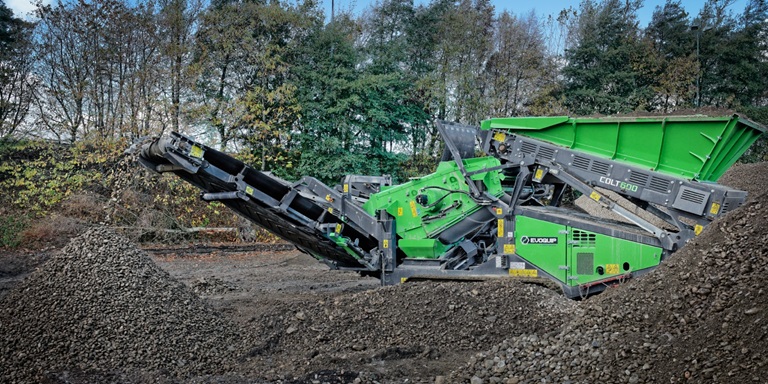

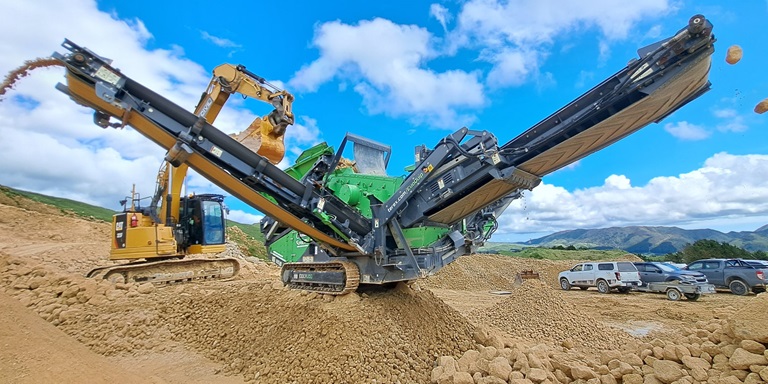

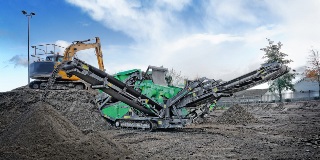

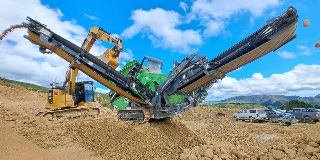

Colt 600
The Colt 600 Compact Scalping Screen has been specifically designed for operators for whom versatility, maneuverability and transportability are of key importance. It is small enough to fit inside a container for transport but strong enough to withstand the toughest of applications. The Colt 600 is a compact and aggressive forward facing screen that can work in aggregates, sand and gravel, top soil, construction demolition and recycling applications where site space is at a premium. With the large range of screen media available including bofor bars, finger screens, woven mesh and punch plates it provides the user with a level of versatility that is second to none.
Dual Power Option
The Colt 600 Dual Power maintains the machine's compact footprint and exceptional screening capabilities while providing the option of significantly reducing emissions and operational noise. Powering the Colt 600 Dual Power electrically can also lower fuel costs and maintenance demands. By embracing electric power, the Colt 600 Dual Power demonstrates our commitment to innovation and environmental responsibility.

FEEDER
- 3m3 (3.9yd3) Hopper capacity
- 1m (40”) Wide
- Variable speed
- Maximum feed size: 300mm (12”)
COMPACT SCALPING SCREEN
- 2.34m x 1.17m (8’ x 4’) Double deck screen
- Wide range of screen media
- Top Deck - Bofor Deck, Fingers, Punch Plate & Mesh
- Bottom Deck – Mesh & Fingers
POWERUNIT
- Tier 3: CAT C2.2 43kW mechanical engine
- Tier 4F/Stage V: CAT C2.2 55kW
- Diesel tank capacity 145ltr (38 US Gal)
- Hydraulic tank capacity 250ltr (66 US Gal)
CONVEYORS
- 650mm (26”) Wide fines conveyor with 2.9m (9’6”) discharge
- 650mm (26”) Wide midgrade conveyor with 2.8m (9’2”) discharge
- 1000mm (40”) Wide oversize conveyor with 2.7m (8’10”) discharge
- Variable speed on midgrade and oversize as standard
- Ability to convert to 2 way split
