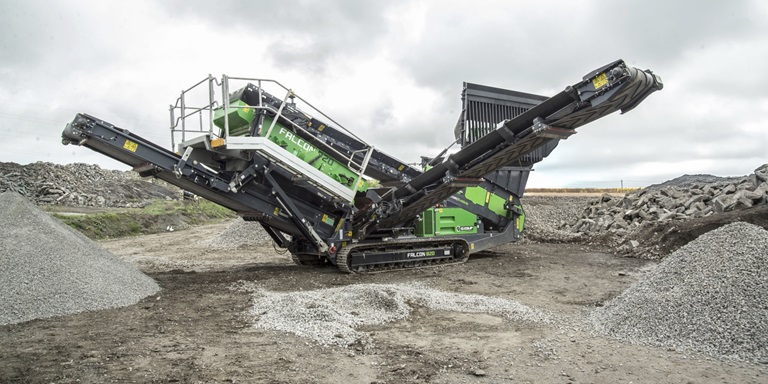

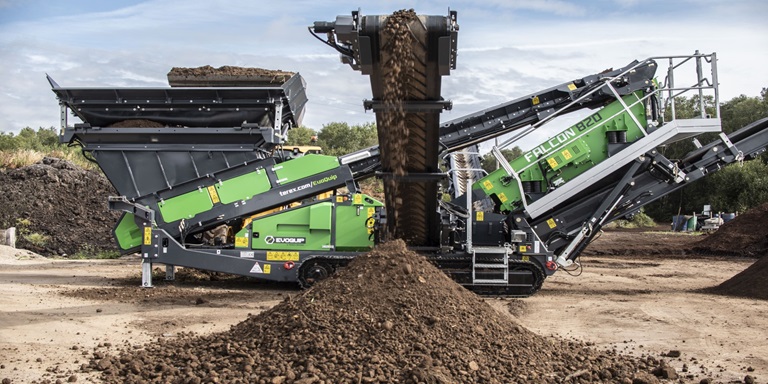

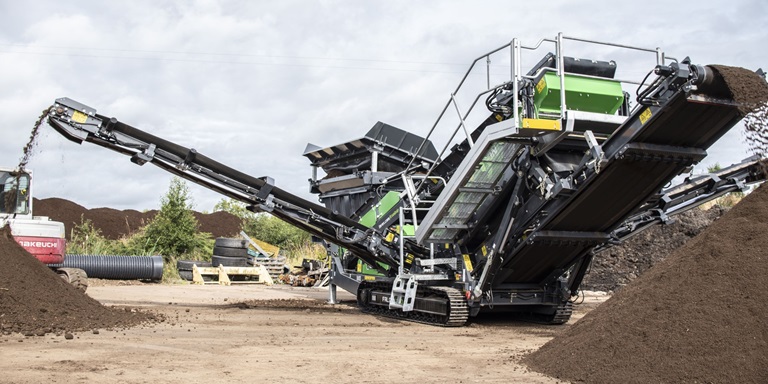

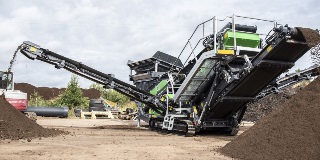

Falcon 820
The Falcon 820 is a compact finishing screen and is the latest addition to the EvoQuip range of screens. Its rugged design enables it to handle materials such as sand and gravel, crushed stone, coal, topsoil and demolition waste. The Falcon 820 compact finishing screen boasts a double deck, 2 bearing 8’x4’ screenbox. Its versatile and robust design makes it ideal for multiple screening applications. In addition the Falcon 820's compact transport envelope also allows it to be transported easily between sites.
HOPPER/FEEDER
-2.9m3 (3.8yd3) Hopper Capacity
-1.1m x 2.6m (3’7” x 8’6”) Hopper opening
-Removable hopper bin
TIPPING GRID
-5.18m3 (17’) Hopper & grid capacity
-Feed in height 3m (9’ 10”)
-Variable working angle
SCREEN
-2.34m x 1.17m (8’ x 4’) double deck two bearing screen
-Adjustable screen angle 25-35°
CONVEYORS
-800mm (32”) wide main conveyor
-1m (40”) wide fines conveyor with standard discharge height of 2.93m (9’ 6”)
-650mm (26”) wide Mid-grade conveyor with max 3.4m (11’ 2”) discharge height
-650mm (26”) wide Over-size conveyor with max 3.4m (11’ 2”) discharge height
ENGINE OPTIONS
-Tier 3 Cat C2.2 62kW LRC
-Tier 4 Final/Stage V Cat C2.2 55kW
CONTROL SYSTEM
Simple intuitive operation
Technical Documentation
Measurements
Transport Length
39 ft 50 in
Transport Width
7 ft 90 in
Transport Height
9 ft 70 in
