IC-110RS

Compact Impact Crusher

IC100RS

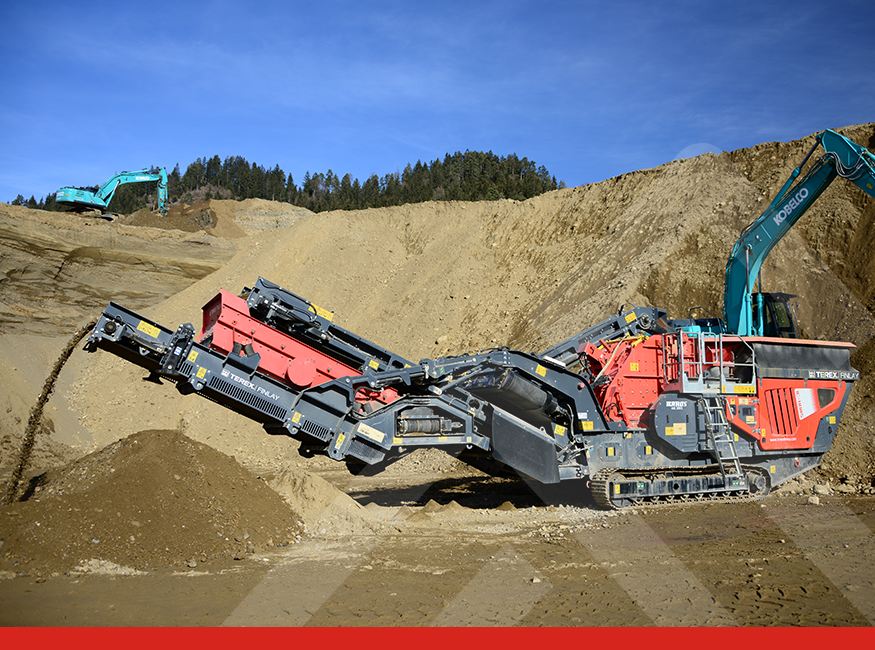

The Terex® Finlay IC-110RS Tracked Compact Crusher provides the versatility of a compact crushing and screening plant on one mobile platform for quarrying, construction and demolition debris, reinforced concrete and asphalt recycling applications. The machine features a direct drive Ø1034 x 1000mm (Ø41.5” x 40”)  horizontal impact crusher with variable speed control to give operators unprecedented levels of fuel efficiency and productivity. A key feature of this Tracked Compact Crusher is the onboard 2.74m x 1.5m (9’ x 5’) single deck screen. For applications not requiring recirculation of oversize material back to the crushing chamber or stockpiling an oversize product the complete screening and recirculating system can be quickly detached from the machine.

The compact size, ease of transport, quick set up times and intuitive operation make this machine ideal for contract crushers, independent rental houses and small scale operators.

Features:

  • Direct drive Ø1034mm x 1000mm (Ø41.5" x 40") crusher chamber with independent belt tensioner allowing for rapid adjustment..
  • Hydraulic apron setting assist provides convenient and efficient adjustment of the aprons and hydraulic overload protection in event that an un-crushable object enters chamber.
  • For operators in recycling and demolition applications underpan feeder and autoadjust on the chamber secondary apron are also available as options
  • Recirculating conveyor can be rotated from closed loop configuration and utilized for stockpiling making an additional oversized product.
  • Quick and easy detachable 2.74m x 1.5m (9’ x 5’) single deck afterscreen, fines and transfer conveyor for open circuit crushing.

Specification Value
Net Engine Power: Tier 3 / Stage IIIA Volvo 315hp / Volvo 235kW
Net Engine Power: Tier 4F / Stage IV Volvo 315hp / Volvo 235kW
Net Engine Power: Stage V Volvo 315hp / Volvo 235kW
Rotor Size Ø41.5” x 40” / Ø1034mm x 1000mm
Operating Weight 78,485lbs / 35,600kg

REMOTE PLANT MAXIMISATION.

That's what Terex Finlays’ T-Link telematics system is all about.

T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.

At any given time you can see the exact location and status of your crushers and screeners.

But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.

Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.


T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and  screeners* from 1st January 2017 (*machines fitted with electronic engine).
