Conveyors

Terex Finlay Conveyor Banner

Terex® Finlay Conveyors have been developed as a comprehensive range of robust, reliable and efficient bulk material handling and stockpiling solutions. The range is comprised of Tracked Mobile Conveyors, High and Low Level Feeders, Radial and Telescopic Stockpilers.

Each of our Conveyors provides mobility and flexibility in a wide range of free flowing bulk material applications including aggregates, ores, coal, wood chips, pellets, fertilizers, grains and truck loading. Each model has been designed for moving or stockpiling material efficiently and productively whilst minimizing operator and other associated on-site costs.

  • RT-140

    The Terex® Finlay RT-140 telescopic conveyor is essential for producers who want to produce a consistent quality product and reduce segregation, degradation, compaction and contamination of material in the stockpile. The machine features a 42.45m (139’ 3”) discharge conveyor that has the capacity to transfer up to 600tph of material.

    Specification Value
    Conveyor Length 137' 9" 42m
    Belt Width 36" 900mm
    Max Discharge Height 48' 14.6m
    Transport Dimensions Width: 11"4" Length: 89' 11" Height: 13' 6" Width: 3.45m Length: 27.4m Height: 4.1m
    Output Potential 661tph 600tph
  • TR-75

    The Terex® Finlay TR-75 Radial Stockpiling Conveyor is the ideal solution for stockpiling material after mobile crushing and screening plants to build a desegregated stockpile and ensure a consistent quality product. The machine features a 22.9m (75’ 2”) discharge conveyor that has the capacity to transfer up to 600tph (661 US tph) of material.

    Specification Value
    Conveyor Length 75' 2" 22.9m
    Belt Width 42" 1050mm
    Max Discharge Height 35' 9" @ 23° 10.9m @ 23°
    Transport Dimensions Width: 7'5" Length: 51'3" Height: 9'9" Width: 2.25m Length: 15.6m Height: 3m
    Output Potential 661tph 600tph
  • WR-80

    The Terex® Finlay WR-80 wheeled radial conveyor is essential for producers who want to produce a consistent quality product and reduce segregation, degradation, compaction and contamination of material in the stockpile. The machine features a 22.85m (74’ 10”) discharge conveyor that has the capacity to transfer up to 300tph (330 US Tph) of material.

    Specification Value
    Conveyor Length 74' 10" 22.85m
    Belt Width 36" 900mm
    Max Discharge Height 30' 1" 9.2m
    Working Dimensions Width: 14"8" Length: 74' 10" Height: 32' 7" Width: 4.48m Length: 22.85m Height: 9.95m
    Output Potential 330 300
  • TC-100

    The Terex® Finlay TC-100 stockpiling conveyor has been engineered to work in a range of applications, from screening light and fines materials to primary crushing applications. The machine features a 30m (98’ 9”) product conveyor that can produce a maximum conical stockpile capacity based on 37° angle of repose: 6632 tonnes (7310 US ton).

    Specification Value
    Conveyor Length (98’ 9”) 30m
    Belt Width 42" 1050mm
    Max Discharge Height 42’ 11” @ 25° 13.1m @ 25°
    Transport Dimensions Width: 9'4" Length: 63' 11" Height: 9' 9" Width: 2.84m Length: 19.5m Height: 3m
    Output Potential 661tph 600tph
  • TC-80

    The Terex® Finlay TC-80 mobile stockpiler is a highly portable and flexible machine that can be integrated seamlessly into stationary and mobile crushing and screening plants. The machine features a 22.8m (74’ 10”) discharge conveyor that can produce a maximum conical stockpile capacity based on 37° angle of repose: 3228 tonnes (3668 US ton).

    Specification Value
    Conveyor Length (74’ 10’’) 22.8m
    Belt Width 42” 1050mm
    Max Discharge Height 34’ 1” @ 25° 10.41m @ 25°
    Transport Dimensions Width: 7'5" Length: 38'11" Height: 8'4" Width: 2.26m Length: 11.88m Height: 2.54m
    Output Potential 551tph 500tph
  • TC-65

    The Terex® Finlay TC-65 tracked stacker is a highly portable and flexible machine that can be integrated seamlessly into stationary and mobile crushing and screening plants. The machine features a 19.79m (64’ 11”) product conveyor that can produce a maximum conical stockpile capacity based on 37° angle of repose: 2500 tonnes (2755 US ton).

    Specification Value
    Conveyor Length 64’ 11” 19.79m
    Belt Width 42” 1050mm
    Max Discharge Height 31' @ 28° 9.45m @ 28°
    Transport Dimensions Width: 7'5" Length: 37' Height: 8'4" Width: 2.26m Length: 11.33m Height: 2.53m
    Output Potential 551tph 500tph
  • TF-75H

    The Terex® Finlay TF-75H high level feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on-site operational costs in a wide range of applications and feed material types. The machine features a 22.5m (73’ 10”) product conveyor to give a maximum stockpile capacity based on 37° angle of repose: 2776 tonnes (3060 US ton).

    Specification Value
    Conveyor Length 75' 22.6m
    Belt Width 48" 1.2m
    Max Discharge Height 32' 2" @ 24° 9.8m @ 24°
    Transport Dimensions Width: 9' Length: 63' 11" Height: 10' 2" Width: 2.75m Length: 19.5m Height: 3.12m
    Output Potential 661 tph 600 tph
  • TF-75H Organics

    The Terex® Finlay TF-75H Organics High Level Feeder has been engineered specifically for the stockpiling and aerating of lower density, bulky materials such as soils, mulch, biomass, green waste and compost. The hopper feeder has steep side walls and features adjustable feed belt speed to ensure a controlled and efficient flow of material transfer to the transfer conveyor.

    Specification Value
    Conveyor Length 74’ 2” 22.6m
    Belt Width 48” 1.2m
    Max Discharge Height 26’ 3’’ @ 18° 8m @ 18°
    Transport Dimensions Width: 9' Length: 63'8" Height: 10'1" Width: 2.75m Length: 19.4m Height: 3.07m
    Output Potential 661tph 600tph
  • TF-50H

    The Terex® Finlay TF-50H high level feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on site operational costs in a wide range of applications and feed material types.

    Specification Value
    Belt Width 42” 1.05m
    Max Discharge Height 23’ 8’’ 7.2m
    Transport Dimensions Width: 7’ 6” Length: 39’ 11” Height: 8’ 4”’ Width: 2.29m Length: 12.16m Height: 2.55m
    Output Potential 495tph 450tph
  • TF-75L

    The Terex® Finlay TF-75L low level feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on-site operational costs in a wide range of applications and feed material types. The machine features a 22.5m (73’ 10”) product conveyor to give a maximum stockpile capacity based on 37° angle of repose: 2776 tonnes (3060 US ton).

    Specification Value
    Conveyor Length 75' 22.6m
    Belt Width 48" 1.2m
    Max Discharge Height 32’ 2” @ 24° 9.8m @ 24°
    Transport Dimensions Width: 9' Length: 64' 9" Height: 11' Width: 2.75m Length: 19.74m Height: 3.35m
    Output Potential 661 tph 600 tph

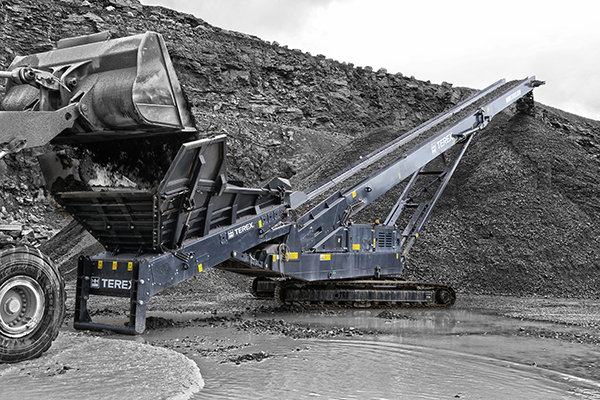

  • TF-75L Orbital

    The Terex® Finlay TF-75L low level feeder features a 7m3 (9.2yds3) hopper with a feed in height of 1900mm (6’ 3”) and width of 3500mm (11’ 5”) to enable low level feeding directly from excavators, grab cranes, and wheel loaders compared to standard high level feeders. The machine features a 22.5m (73’ 10”) product conveyor to give a maximum stockpile capacity based on 37° angle of repose: 2776 tonnes (3060 US ton)

    Specification Value
    Conveyor Length 73' 10" 22.5m
    Belt Width 48" 1.2m
    Max Discharge Height 34' 6" 10.7m
    Transport Dimensions Width: 10'6" Length: 63' Height: 11'11" Width: 3.2m Length: 19.5m Height: 3.63m
    Output Potential 661tph 600tph
  • TF-50L

    The Terex® Finlay TF-50L low level feeder has been designed to maximize productivity and improve efficiency by reducing double handling and on-site operational costs in a wide range of applications and feed material types. The machine features a 15.6m (51’ 2”) discharge conveyor to give a maximum stockpile capacity based on 37° angle of repose: 932 tonnes (1027 US tonnes).

    Specification Value
    Conveyor Length 51’ 2” 15.6m
    Belt Width 42” 1.05m
    Max Discharge Height 23’ 8’’ @ 24° 7.2m
    Transport Dimensions Width: 9’ 1” Length: 40’ 08” Height: (8’ 4”) Width: 2.77m Length: 12.2m Height: 2.55m
    Output Potential 450tph 450tph
