Hybrid Technology

Terex Finlay C 1540dp dual power

Terex Finlay offer a comprehensive line up of hybrid crushers and screeners that can be  electrically driven allowing the operator to power their machines using mains electricity supply where available. For versatility and flexibility the machines can also be powered by on-board diesel engine or gen-set for sites that do not have available direct mains power source infrastructure.

When working in a crushing and screening train the hybrid screeners can be connected to upstream or downstream hybrid crushers that generate sufficient electricity to power the screeners providing significant cost savings.

  • LJ-130 Hybrid

    The Terex® Finlay LJ-130 hybrid mobile jaw crusher is the largest mobile jaw crusher in our range and has been developed for large-scale quarry and mining operations.The plant’s electrically driven power systems provide significant cost advantages and environmental efficiencies. The machine features a robust Terex 1300 x 1000mm (51” x 39”) single toggle jaw crusher.

    Specification Value
    Net Engine Power Tier 3 - CAT 540hp | Tier 4 Final / Stage V - Scania 550hp Tier 3 - CAT 403kW | Tier 4 Final / Stage V - Scania 410kW
    Inlet Opening 51” x 39” 1300 x 1000mm
    Operating Weight 271,169lbs 123,000kg
    Transport Dimensions Height 13’ 11” | Width 11’ 9” | Length 55’ 8” Height 4.25m | Width 3.4m | Length 17m
    Working Dimensions Height 6.4m | Width 7.3m | Length 71’ 6” Height 21’ 3” | Width 24’ 1” | Length 71’ 6”
  • J-1280 Hybrid

    The hybrid Terex® Finlay J-1280 mobile jaw crusher offers operators the flexibility to power the plant either by an onboard genset powerpack configuration or connected to an external power source. Both power options provide operators with significant power, servicing and maintenance cost savings in direct comparison to a diesel/hydraulic powered plant. The machine is fitted with a high powered alternator that generates sufficient energy that can be used to power downstream screening plants or stockpile conveyors further improving overall fuel consumption and efficiencies of production trains. The machine features a robust Terex 1200mm x 820mm (47” x 32”) electrically driven single toggle jaw crusher.

    Specification Value
    Net Engine Power: Tier 2 / Stage II Equivalent Scania DC13 (450hp) Scania DC13 (331kW)
    Net Engine Power: Tier 4 Final Scania DC13 (450hp) Scania DC13 (331kW)
    Net Engine Power: Stage V Scania DC13 (450hp) Scania DC13 (331kW)
    Inlet Opening (47”) x (32”) 1200mm x 820mm
    Transport Weight 165,480lbs * est 75,060kg * est
  • J-1175 Hybrid

    The Hybrid Terex® Finlay J-1175 mobile jaw crusher offers operators the flexibility to power the plant either by mains electric connection or the onboard genset powerpack configuration. Either power option presents operators with significant power, servicing and maintenance cost savings in direct comparison to a diesel/hydraulic powered plant. The machine is fitted with a high powered alternator that generates sufficient energy that can be used to power downstream screening plants or stockpile conveyors further improving overall fuel consumption and efficiencies of production trains. The machine features a robust Terex 1070mm X 760mm (42” x 30”) electrically driven single toggle jaw crusher.

    Specification Value
    Net Engine Power: Tier 2 / Stage II Equivalent Scania DC09 350hp Scania DC09 257kW
    Net Engine Power: Stage IIIA Constant Speed Scania DC09 365hp Scania DC09 273kW
    Net Engine Power: Tier 4F / Stage IV Scania DC09 350hp Scania DC09 257kW
    Inlet Opening 42" x 30" 1070 x 762 mm
    Transport Weight 119,711lbs 54,300kg

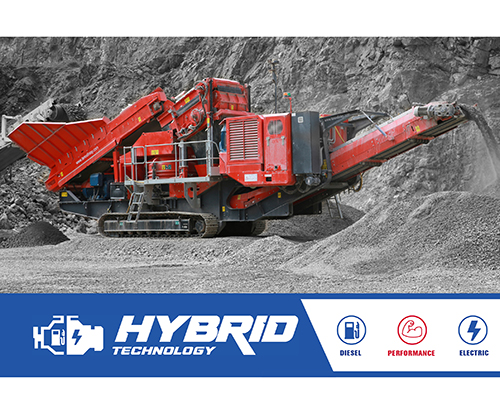

  • C-1540 Hybrid

    The Terex® Finlay C-1540P hybrid cone crusher offers operators the flexibility to power the plant either by mains electric connection or the onboard genset powerpack configuration. Either power option presents operators with significant power, servicing and maintenance cost savings. This energy efficient and productive machine incorporates the proven Terex® 1000 cone crusher with direct electric drive, automatic tramp relief and hydraulic closed side setting (CSS) adjustment. The machine incorporates the Terex® 1000 cone crusher with 1000mm (40”) head diameter.

    Specification Value
    Net Engine Power: Tier 2 / Stage II Equivalent Scania DC09 350hp Scania DC09 257kW
    Net Engine Power: Stage IIIA Constant Speed Scania DC09 365hp Scania DC09 273kW
    Net Engine Power: Tier 4F / Stage IV Scania DC09 350hp Scania DC09 257kW
    Inlet Opening 40" 1000mm
    Transport Weight 99,914lbs 45,320kg

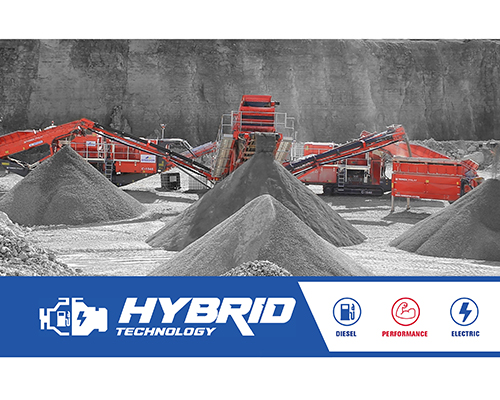

  • 696 3-Deck Hybrid

    The Terex® Finlay Hybrid 696 3-Deck inclined screen offers operators the flexibility to power the plant either by an electrical connection or diesel/hydraulic configuration. The new high energy screenbox is the largest in the Finlay triple deck range and features three full size 6.1m x 1.7m (20’ x 5’ 7”) decks to give a total screening area of 31.1m² (335ft²).

    Specification Value
    Net Engine Power: Tier 3 / Stage IIIA Caterpillar C4.4 (121hp) Caterpillar C4.4 (90kW)
    Net Engine Power: Stage IIIA Constant Speed Caterpillar C4.4 (131hp) Caterpillar C4.4 (98.1kW)
    Net Engine Power: Tier 4F / Stage IV Caterpillar C4.4 (125hp) Caterpillar C4.4 (93kW)
    Net Engine Power: Stage V Caterpillar C4.4 (131hp) Caterpillar C4.4 (98kW)
    Transport Weight 88,300lbs 40,050kg

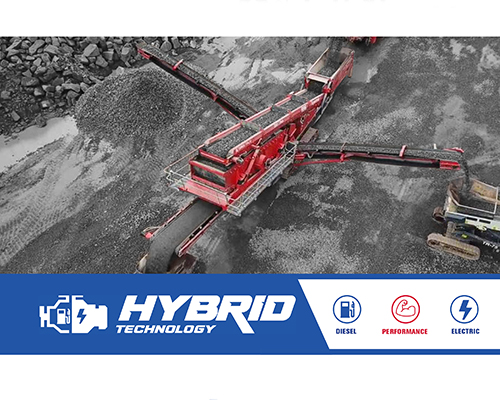

  • 696 2-Deck Hybrid

    The Terex® Finlay Hybrid 696 2-Deck inclined screen offers operators the flexibility to power the plant either by an electrical connection or diesel/hydraulic configuration. The new high energy screenbox features two full size 6.1m x 1.7m (20’ x 5’ 7”) decks to give a total screening area of 20.74m² (223ft²).

    Specification Value
    Net Engine Power: Tier 3 / Stage IIIA Caterpillar C4.4 (121hp) Caterpillar C4.4 (90kW)
    Net Engine Power: Stage IIIA Constant Speed Caterpillar C4.4 (131hp) Caterpillar C4.4 (98.1kW)
    Net Engine Power: Tier 4F / Stage IV Caterpillar C4.4 (125hp) Caterpillar C4.4 (93kW)
    Net Engine Power: Stage V Caterpillar C4.4 (131hp) Caterpillar C4.4 (98kW)
    Weight 74,550lbs 33,800kg

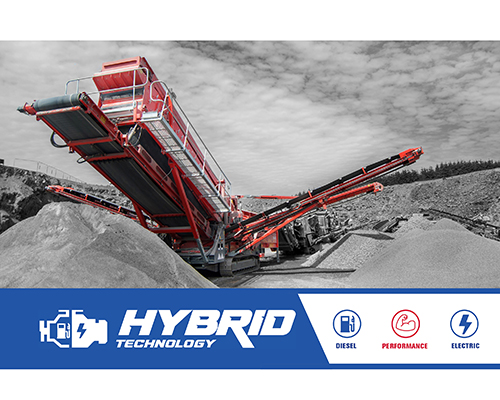

  • 694+ Hybrid

    The Terex® Finlay 694+ hybrid inclined screen offers operators the flexibility to power the plant either by an electrical connection or diesel/hydraulic configuration. The new high energy screenbox features three full size 6.1m x 1.53m (20’ x 5’) decks to give a total screening area of 28m² (301ft²).

    Specification Value
    Net Engine Power: Tier 3 / Stage IIIA Caterpillar C4.4 130hp Caterpillar C4.4 97kW
    Net Engine Power: Stage IIIA Constant Speed Caterpillar C4.4 131hp Caterpillar C4.4 98kW
    Net Engine Power: Tier 4F / Stage IV Caterpillar C4.4 131hp Caterpillar C4.4 98kW
    No. Stockpilers 4 4
    Transport Weight 88,184lbs 40,000kg

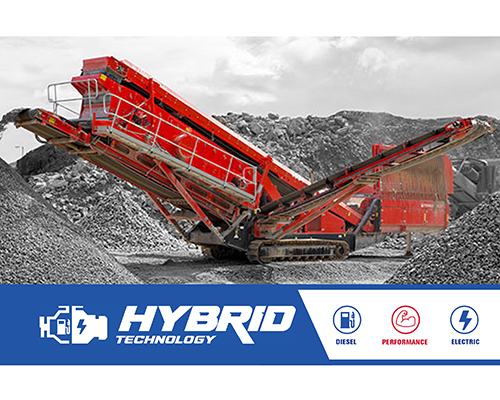

  • 693+ Hybrid

    The Terex® Finlay 693+ hybrid track mounted screener offers operators the flexibility to power the plant either by an electrical connection or diesel/hydraulic configuration. The new high energy screenbox features two full size 6.1m x 1.53m (20’ x 5’) decks to give a total screening area of 18.7m² (200ft²).

    Specification Value
    Net Engine Power: Tier 3 / Stage IIIA Caterpillar C4.4 111.3hp Caterpillar C4.4 83kW
    Net Engine Power: Stage IIIA Constant Speed Caterpillar 4.4 130hp Caterpillar 4.4 97kW
    Net Engine Power: Tier 4F / Stage IV Caterpillar C4.4 110hp Caterpillar C4.4 82kW
    No. Stockpilers 3 3
    Transport Weight 76,831lbs 34,850kg

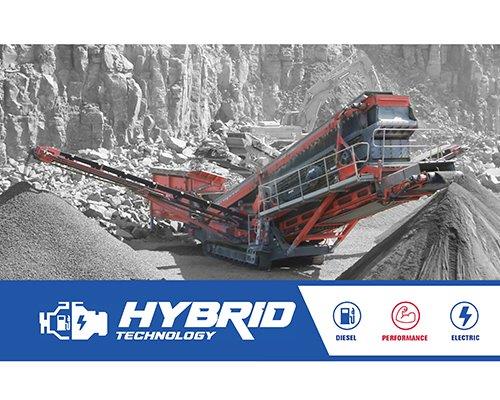

  • 693+ Spaleck Hybrid

    The Terex® Finlay 693+ hybrid Spaleck mobile screening plant offers operators the flexibility to power the plant either by an electrical connection or diesel/hydraulic configuration. At the heart of the plant is an innovative 2-deck German designed and constructed high performance aggressive screenbox with state of the art flip flow technology on both the top and bottom decks. The high energy screenbox features two full size 6.1m x 1.53m (20’ x 5’) decks to give a total screening area of 18.7m² (200ft²).

    Specification Value
    Net Engine Power: Tier 3 / Stage IIIA Caterpillar C4.4 (121hp) Caterpillar C4.4 90kW
    Net Engine Power: Stage IIIA Constant Speed Caterpillar C4.4 (131hp) Caterpillar C4.4 98.1kW
    Net Engine Power: Tier 4F / Stage IV Caterpillar C4.4 (110hp) Caterpillar C4.4 82kW
    No. Stockpilers 3 3
    Transport Weight 72,900lbs 33,050kg

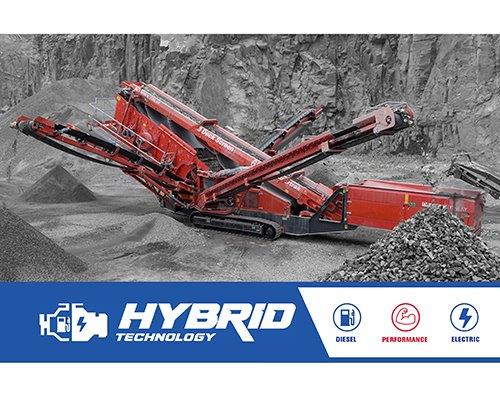

  • 684 3-Deck Hybrid

    The Terex® Finlay 684 triple deck portable screener is a compact easily transportable machine that offers operators rapid set up and tear down times and provide efficient screening and high capacity. The screenbox features two large 4.3m x 1.7m (14’ x 5’ 7") decks to give a total screening area of 21.9m² (235ft²).

    Specification Value
    Net Engine Power: Tier 3 / Stage IIIA Caterpillar C4.4 (102hp) Caterpillar C4.4 77kW
    Net Engine Power: Stage IIIA Constant Speed Caterpillar C4.4 (131hp) Caterpillar C4.4 98.1kW
    Net Engine Power: Tier 4F / Stage IV Caterpillar C4.4 (110hp) Caterpillar C4.4 82kW
    No. Stockpilers 4 4
    Transport Weight 73,800lbs 33,500kg

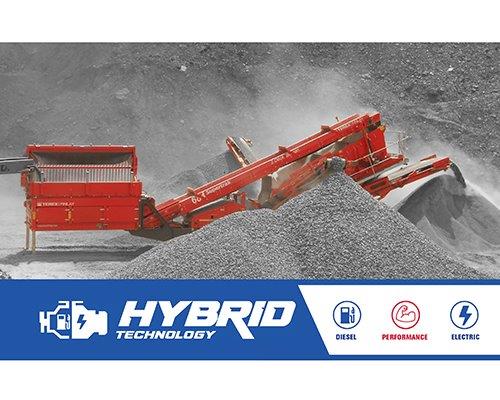

  • 684 2-Deck Hybrid

    The Terex® Finlay 684 hybrid portable rock screening plant offers operators the flexibility to power the plant either by an electrical connection or diesel/hydraulic configuration. The screenbox features two large 4.3m x 1.7m (14’ x 5’ 7") decks to give a total screening area of 14.6m² (156ft²).

    Specification Value
    Net Engine Power: Tier 3 / Stage IIIA Caterpillar C4.4 (102hp) Caterpillar C4.4 77kW
    Net Engine Power: Stage IIIA Constant Speed Caterpillar C4.4 (131hp) Caterpillar C4.4 98.1kW
    Net Engine Power: Tier 4F / Stage IV Caterpillar (110hp) Caterpillar C4.4 82kW
    No. Stockpilers 3 3
    Operating Weight 63,380lbs 28,750kg

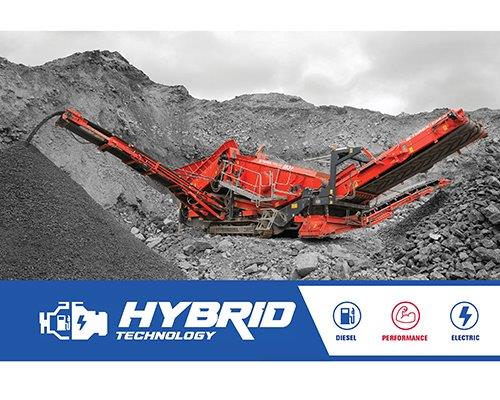

  • 883+ Hybrid

    The Terex Finlay 883+ hybrid mobile screener has been developed as a high capacity and versatile heavy duty scalper to work in primary and secondary screening applications such as quarry and mining, iron ore, construction demolition waste, sand, gravel, compost, top soil and coal. The screenbox features two “true” full size 4.8 x 1.53m (16’ x 5’) screening decks.

    Specification Value
    Net Engine Power: Tier 3 Equivalent Caterpillar C4.4 130hp Caterpillar C4.4 97kW
    Net Engine Power: Stage IIIA Constant Speed Caterpillar C4.4 131hp Caterpillar C4.4 98kW
    Net Engine Power: Tier 4F / Stage IV Caterpillar C4.4 110hp Caterpillar C4.4 82kW
    No. Stockpilers 3 3
    Weight 68,340lbs 31,000kg

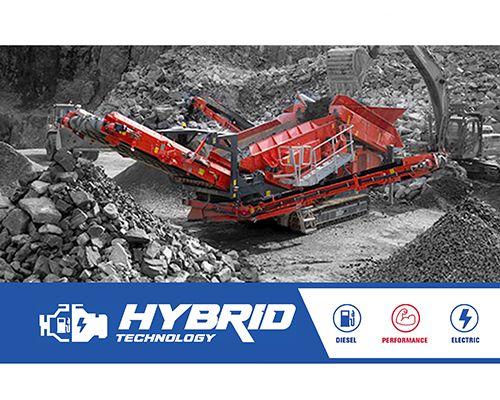

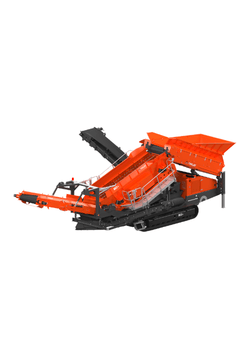

  • 883+ (Triple Shaft) Hybrid

    The Terex® Finlay hybrid 883+ triple shaft mobile scalping screener is ideal for working in dry and sticky applications including quarry, mining, sand, gravel, construction and demolition debris and recycling applications. The screenbox features two “true” full size 4.8 x 1.53m (16’ x 5’) screening decks.

    Specification Value
    Net Engine Power: Tier 3 Equivalent Caterpillar C4.4 130hp Caterpillar C4.4 97kW
    Net Engine Power: Stage IIIA Constant Speed Caterpillar C4.4 131hp Caterpillar C4.4 98kW
    Net Engine Power: Tier 4F / Stage IV Caterpillar C4.4 110hp Caterpillar C4.4 82kW
    No. Stockpilers 3 3
    Weight 68,340lbs 31,000kg

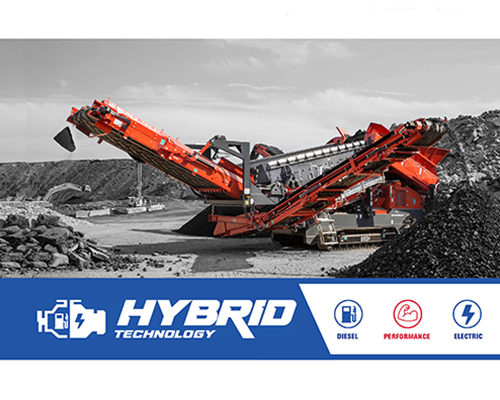

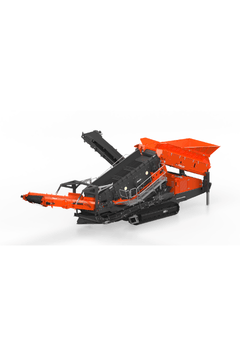

  • 883+ Spaleck Hybrid

    The Terex® Finlay 883+ hybrid Spaleck mobile scalping screen is the ultimate in mobile screening and separation technology. At the heart of the screen is the two deck German designed and constructed high performance recycling waste screen with Flip-Flow-Screen Elastica. The screenbox features two “true” full size 4.8 x 1.53m (16’ x 5’) screening decks.

    Specification Value
    Net Engine Power: Tier 3 Equivalent Caterpillar C4.4 130hp Caterpillar C4.4 97kW
    Net Engine Power: Stage IIIA Constant Speed Caterpillar C4.4 130hp Caterpillar C4.4 97kW
    Net Engine Power: Tier 4F / Stage IV Caterpillar C4.4 110hp Caterpillar C4.4 82kW
    No. Stockpilers 3 3
    Weight 67,240lbs 30,500kg

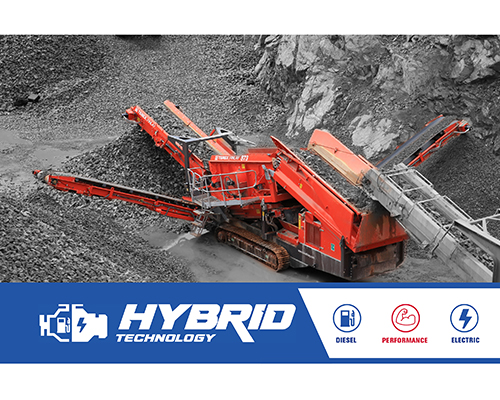

  • 873 Hybrid

    The Terex® Finlay 873 hybrid mobile screener is ideally suited to working in aggregates, sand and gravel, top soil, construction demolition and recycling applications. The screenbox features two “true” full size 3.66m x 1.53m (12’ x 5’) screening decks.

    Specification Value
    Net Engine Power: Tier 3 Equivalent Caterpillar C4.4 111.3hp Caterpillar C4.4 83kW
    Net Engine Power: Stage IIIA Constant Speed Caterpillar C4.4 131hp Caterpillar C4.4 97kW
    Net Engine Power: Tier 4F / Stage IV Caterpillar C4.4 110hp Caterpillar C4.4 82kW
    No. Stockpilers 3 3
    Weight 56,879lbs 25,800kg

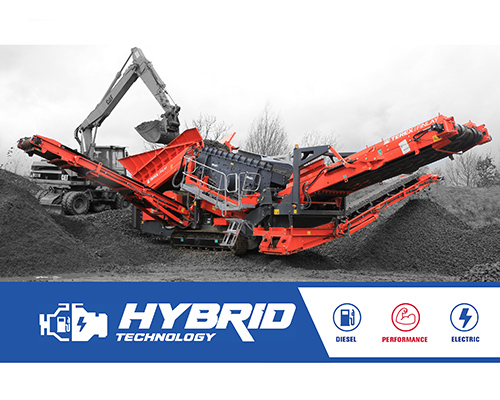

  • 873 Spaleck Hybrid HD Screener

    Specification Value
    Net Engine Power: Tier 3 Equivalent Caterpillar C4.4 111.3hp Caterpillar C4.4 83kW
    Net Engine Power: Stage IIIA Constant Speed Caterpillar C4.4 130hp Caterpillar C4.4 97kW
    Net Engine Power: Tier 4F / Stage IV Caterpillar C4.4 110hp Caterpillar C4.4 82kW
    No. Stockpilers 3 3
    Weight 56,879lbs 25,800kg
  • TC-100 Hybrid

    The Terex® Finlay TC-100 stockpiling conveyor is available with hybrid technology consisting of on-board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on-board engine. The machine features a 30m (98’ 9”) product conveyor that can produce a maximum conical stockpile capacity based on 37° angle of repose: 6632 tonnes (7310 US ton).

    Specification Value
    Conveyor Length 100' 30m
    Belt Width 42" 1050mm
    Max Discharge Height 42’ 11” @ 25° 13.1m @ 25°
    Transport Dimensions Width: 9'4" Length: 63' 11" Height: 9' 9" Width: 2.84m Length: 19.5m Height: 3m
    Output Potential Up to 661tph Up to 600tph
  • TC-80 Hybrid

    The Terex® Finlay TC-80 mobile stockpiler is available with hybrid technology consisting of on-board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on-board engine. The machine features a 22.8m (74’ 10”) discharge conveyor that can produce a maximum conical stockpile capacity based on 37° angle of repose: 3228 tonnes (3668 US tph).

    Specification Value
    Conveyor Length 77’ 23.5m
    Belt Width 42” 1050mm
    Max Discharge Height 33’ 2” @ 25° 10.1m @ 25°
    Transport Dimensions Width: 7'5" Length: 38'11" Height: 8'4" Width: 2.26m Length: 11.88m Height: 2.54m
    Output Potential 441tph 400tph
  • TC-65 Hybrid

    The Terex® Finlay TC-65 mobile stockpiler is available with hybrid technology consisting of on-board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on-board engine. The machine features a 19.79m (64’ 11”) discharge conveyor that can produce a maximum conical stockpile capacity based on 37° angle of repose: 2500 tonnes (2755 US ton).

    Specification Value
    Conveyor Length 20m 65’ 7”
    Belt Width 1050mm 42”
    Max Discharge Height 10m @ 28° 32’ 10” @ 28°
    Transport Dimensions Width: 7'5" Length: 37' Height: 8'4" Width: 2.26m Length: 11.33m Height: 2.53m
    Output Potential Up to 441tph Up to 400tph

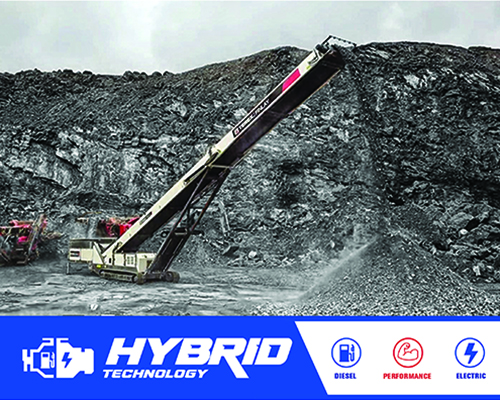

  • TF-75H Hybrid

    The Terex® Finlay TF-75H high level feeder is available with hybrid technology consisting of on-board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on-board engine. The machine features a 22.5m (73’ 10”) product conveyor to give a maximum stockpile capacity based on 37° angle of repose: 2776 tonnes (3060 US Ton)

    Specification Value
    Conveyor Length 75' 22.6m
    Belt Width 48" 1.2m
    Max Discharge Height 32' 2" @ 24° 9.8m @ 24°
    Transport Dimensions Width: 9' Length: 63' 11" Height: 10' 2" Width: 2.75m Length: 19.5m Height: 3.12m
    Output Potential 661 tph 600 tph
  • TF-75H Organics Hybrid

    The Terex® Finlay TF-75H Organics High Level Feeder has been engineered specifically for the stockpiling and aerating of lower density, bulky materials such as soils, mulch, biomass, green waste and compost. The hopper feeder has steep side walls and features adjustable feed belt speed to ensure a controlled and efficient flow of material transfer to the transfer conveyor.

    Specification Value
    Conveyor Length 74’ 2” 22.6m
    Belt Width 48” 1.2m
    Max Discharge Height 26’ 3’’ @ 18° 8m @ 18°
    Transport Dimensions Width: 9' Length: 63'8" Height: 10'1" Width: 2.75m Length: 19.4m Height: 3.07m
    Output Potential 661tph 600tph

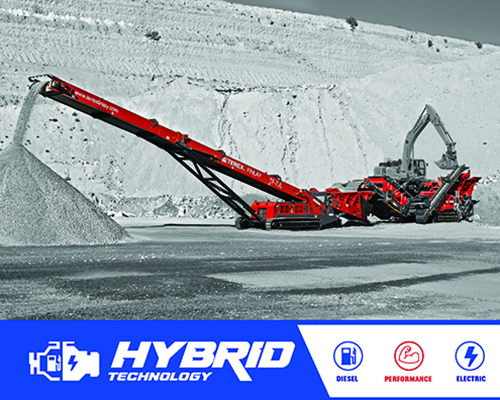

  • TF-75L Hybrid

    The Terex® Finlay TF-75L low level is available with hybrid technology consisting of on-board electrical motors permitting the flexibility to run the plant from an outside power supply or standard on-board engine. The machine features a 22.5m (73’ 10”) product conveyor to give a maximum stockpile capacity based on 37° angle of repose: 2776 tonnes (3060 US Ton).

    Specification Value
    Conveyor Length 75' 22.6m
    Belt Width 48" 1.2m
    Max Discharge Height 32’ 2” @ 24° 9.8m @ 24°
    Transport Dimensions Width: 9' Length: 64' 4" Height: 10' Width: 2.75m Length: 19.6m Height: 3m
    Output Potential Up to 500tph (551 US tph) Up to 500tph (551 US tph)
