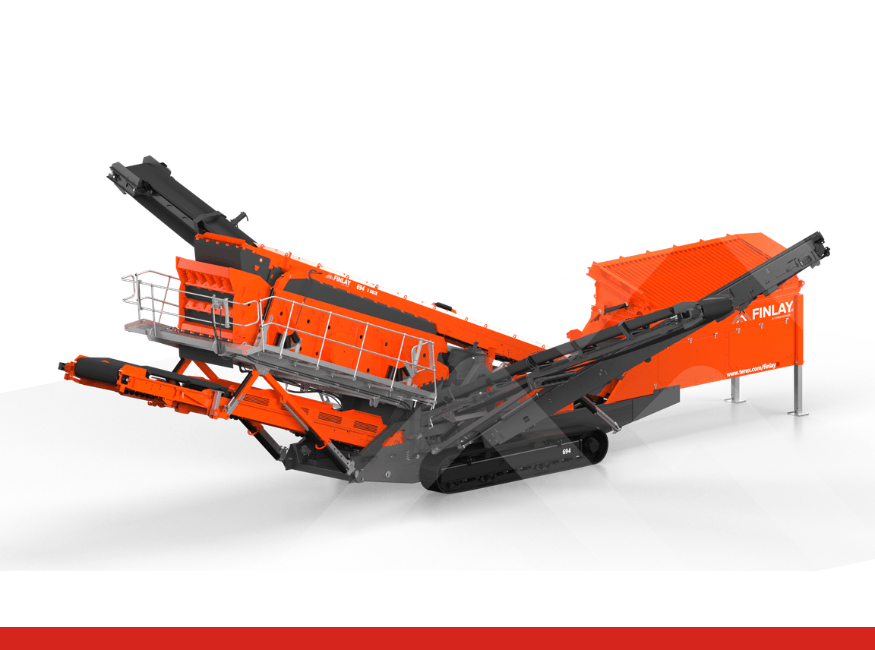

694+ Hybrid
Inclined Screener
The Finlay® 694+ hybrid inclined screen has been developed to fulfill the demands of high production producers.
The new high energy screenbox features three full size 6.1m x 1.53m (20’ x 5’) decks that can process fine, sticky and dirty material with ease in quarrying, mining, sand and gravel, coal, woodchip and topsoil applications.
The large hopper / feeder is fitted with variable speed belt feeder to ensure consistent flow of material and can be fitted with remote tipping grid or double deck vibrating grid.
The hydraulics system has been upgraded to provide the optimum balance of power and efficiency and the powerpack designed to operate at lower engine speeds to raise cost-efficiency in the long term without compromising on performance.
The machine is fitted with a hybrid powerpack that is based upon an electric/hydraulic drive system that enables operators to connect the machine to a secondary electrical supply on site to provide even greater flexibility and energy efficiency ultimately resulting in significant fuel savings.
Key Features:
- Simplified and reconfigured folding mechanism for the onboard product conveyors for ease of deployment and user-friendly operation.
- Hydraulic folding catwalks as standard for improved onsite efficiency and to enable rapid screenbox deployment.
- Maximum utilisation of three 20’ x 5’ (6.1m x 1.53m) decks provide ultra-efficient screening capacities even at small aggregate sizes.
- The fourth (oversize plus) conveyor provides variable tilt and side slew capability to accurately discharge materials for re-circulation to crushers or for stockpiling.
Screen box angle can be hydraulically adjusted to an angle between 18°and 32°.
T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.
Downloads
FINES CONVEYOR
OVERSIZE / MIDGRADE CONVEYORS
UNDERCARRIAGE
SCREENBOX
OVERSIZE PLUS CONVEYOR
HOPPER / FEEDER
MAIN CONVEYOR
T-Link Telematics
Video Gallery
Terex Finlay 694+ inclined screen (set up / tear down sequence)
Terex Finlay 694+ Inclined Screen (Intro video)
Terex Finlay 694+ and 696 3-deck inclined screeners
Terex Finlay 694+ Inclined screen working with C-1540 cone crusher (Quarry)
-cone-crusher.tmb-768v.jpg?Culture=en&sfvrsn=68c088ac_1)
Terex Finlay C-1540 cone crusher and 694+ inclined screen
Terex Finlay 694+ Inclined Screen
Terex Finlay I-120RS impact crusher, TC-100 conveyor and 694+ inclined screen
Terex Finlay 694+ Inclined screen (Quarry)
| Specification | Value |
|---|---|
| Net Engine Power: Tier 3 / Stage IIIA | Caterpillar C4.4 130hp / Caterpillar C4.4 97kW |
| Net Engine Power: Stage IIIA Constant Speed | Caterpillar C4.4 131hp / Caterpillar C4.4 98kW |
| Net Engine Power: Tier 4F / Stage IV | Caterpillar C4.4 131hp / Caterpillar C4.4 98kW |
| No. Stockpilers | 4 / 4 |
| Transport Weight | 88,184lbs / 40,000kg |
REMOTE PLANT MAXIMISATION.
That's what Terex Finlays’ T-Link telematics system is all about.
T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.
At any given time you can see the exact location and status of your crushers and screeners.
But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.
Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.
T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and screeners* from 1st January 2017 (*machines fitted with electronic engine).
Related Products
-
![C-1540E hybrid images]()
-
![J-1175 hybrid images]()
J-1175 Hybrid
The Hybrid Finlay® J-1175 mobile jaw crusher offers operators the flexibility to power the plant either by mains electric connection or the onboard genset powerpack configuration. Either power option presents o...
-
![693-mobile-two-deck-inclined-mining-screen]()

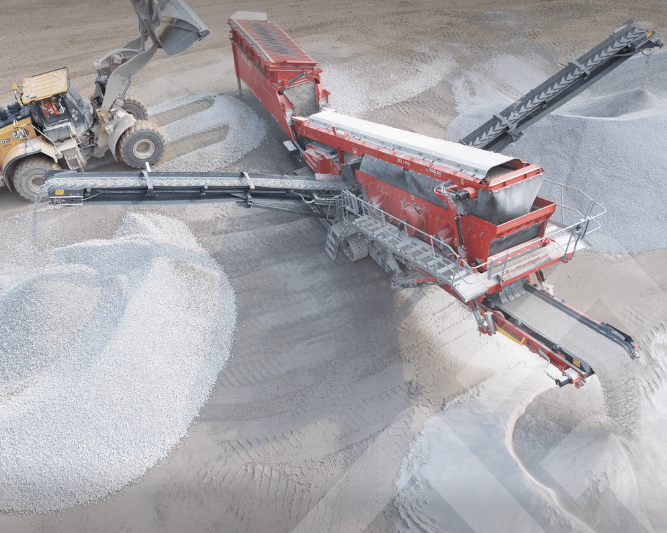

693+
The Finlay® 693+ tracked mounted screener has been developed to fulfil the demands of high production producers in quarrying, mining, sand and gravel, coal, woodchip and topsoil applications. The new high energ...
-
![693-spaleck-screener-with-flip-flow-screen]()

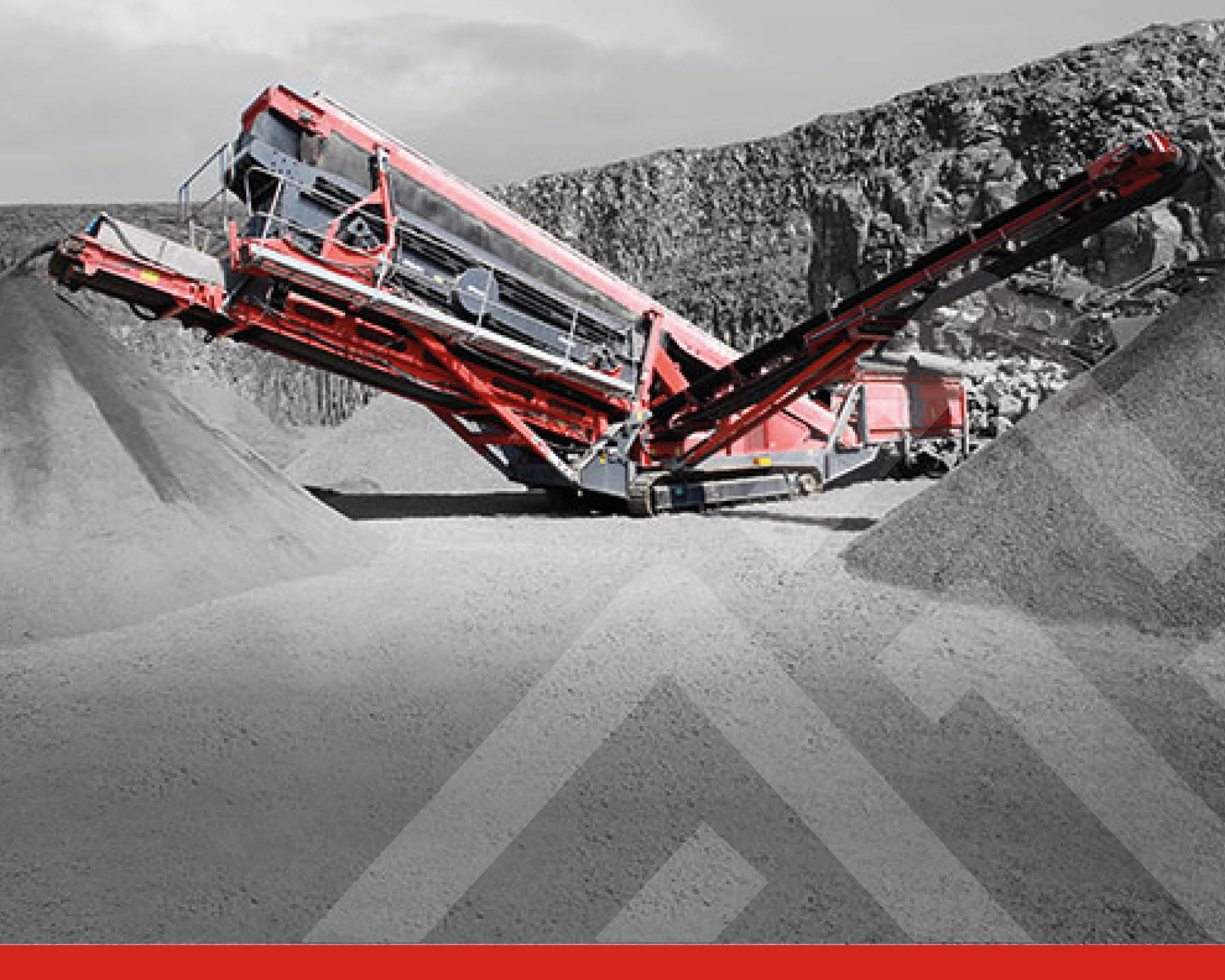

693+ Spaleck
The Finlay® 693+ Spaleck mobile screening plant is the ultimate in mobile fine screening and separation technology. At the heart of the plant is an innovative 2-deck German designed and constructed high perfor-...
-
![694-mobile-triple-deck-screener-in-quarry]()
694+ Hybrid
The Finlay® 694+ hybrid inclined screen offers operators the flexibility to power the plant either by an electrical connection or diesel/hydraulic configuration. The plant features a triple deck screen configur...
-
![694-mobile-triple-deck-screener-in-quarry]()

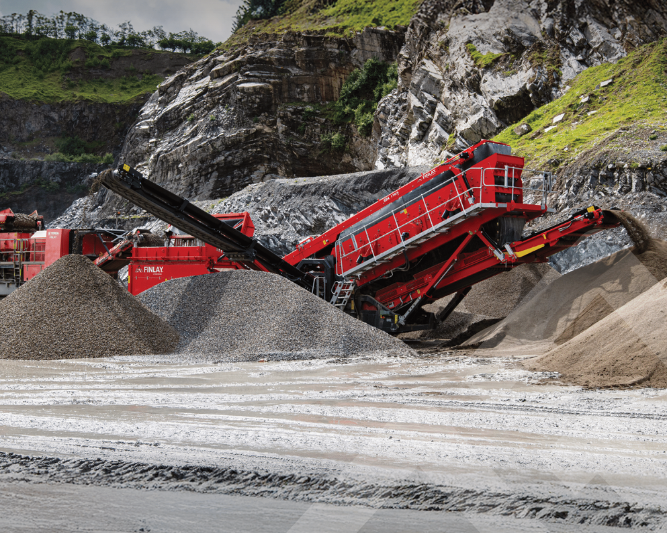

694+
The Finlay® 694+ portable triple deck screener has been developed to fulfil the demands of high production producers in quarrying, mining, sand and gravel, coal, woodchip and topsoil applications. The new high ...
-
![684-mobile-screening-plant-in-quarry]()

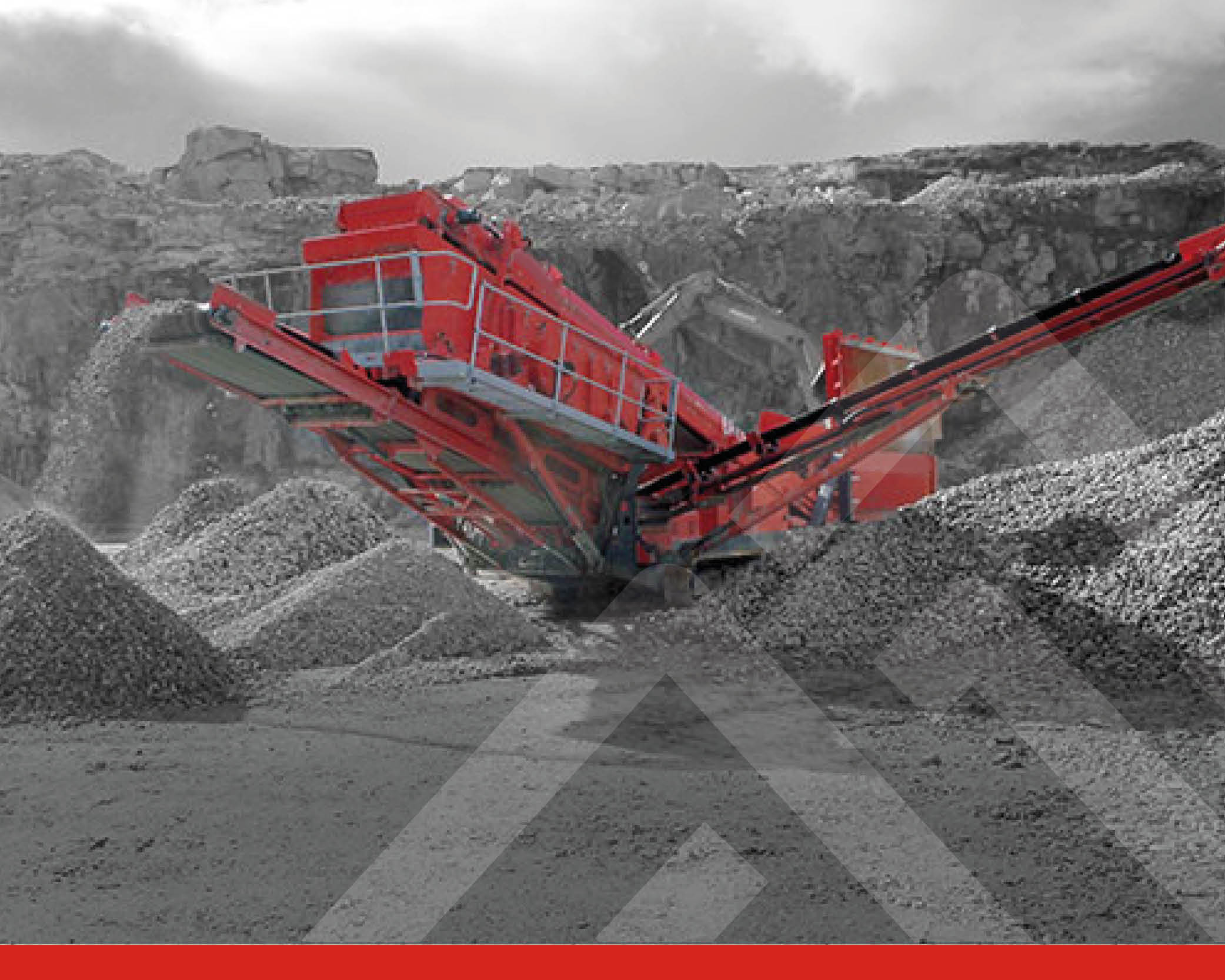

684 2-Deck
The Finlay® 684 2-Deck portable rock screening plant is a compact easily transportable machine that offers operators rapid set up and tear down times. The screenbox features two large 4.3m x 1.7m (14’ x 5’ 7") ...
-
![683-portable-track-mounted-gravel-screener]()

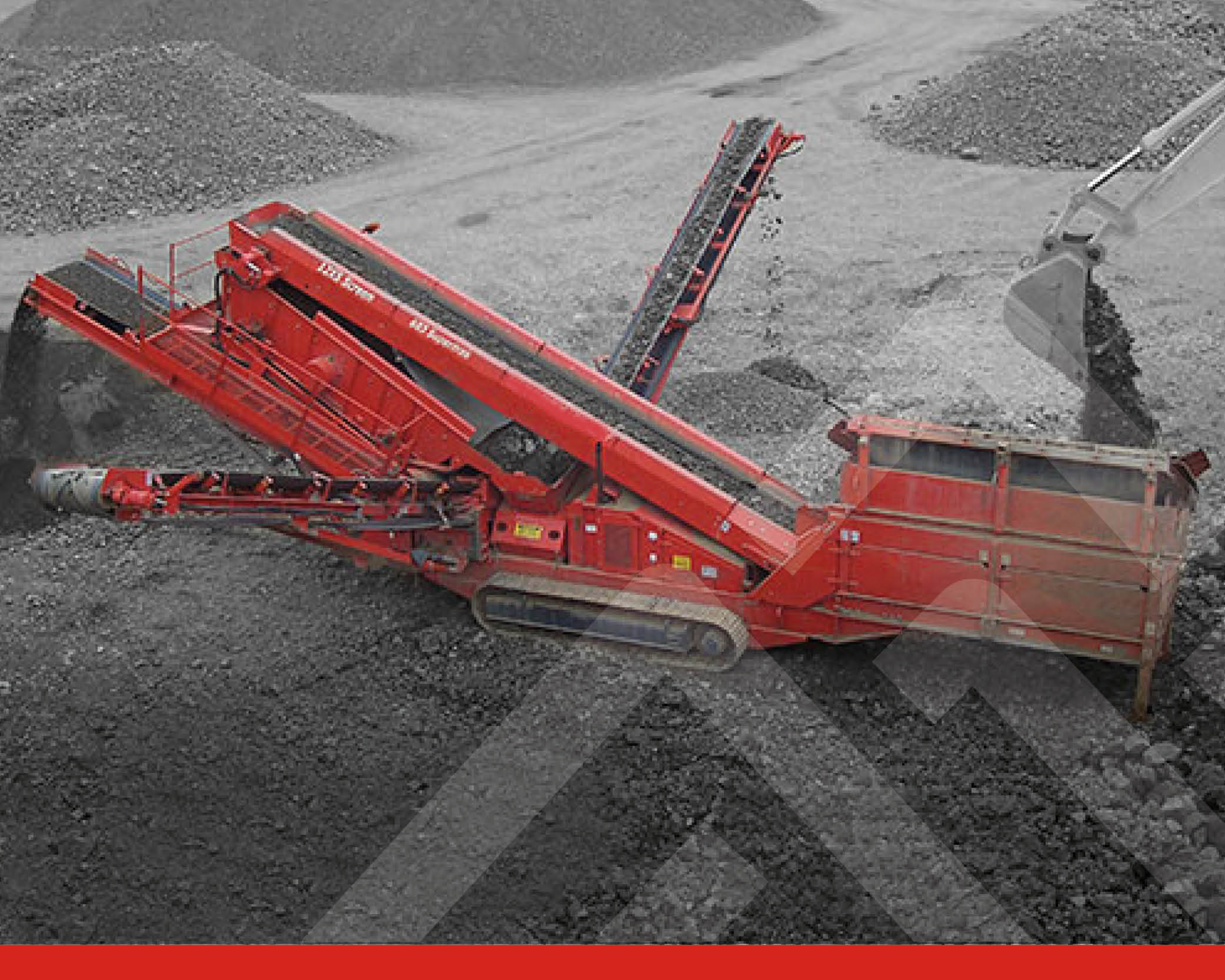

683
