Jaw Crushers | Heavy Duty

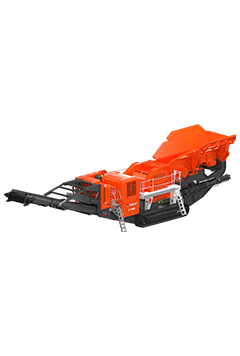

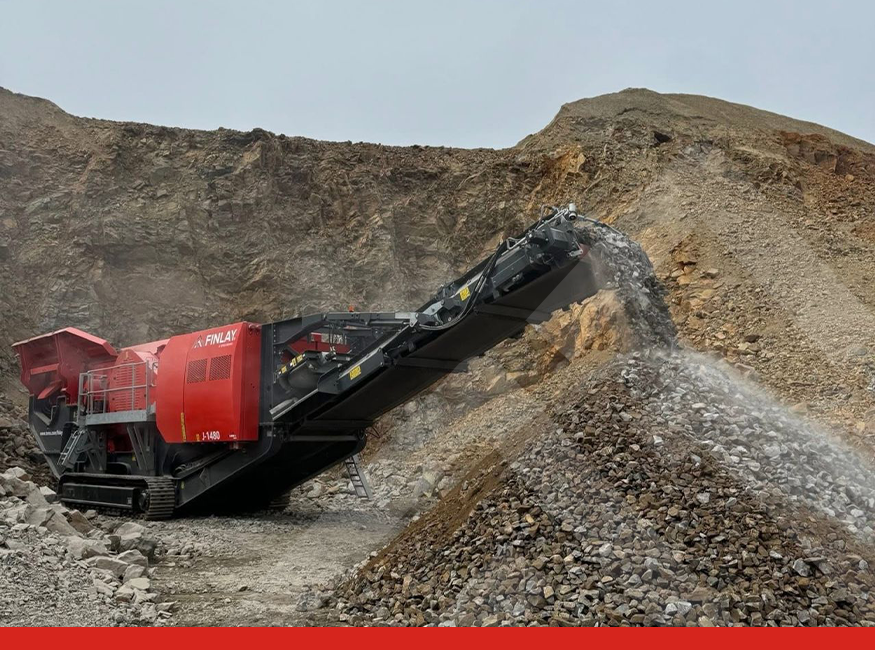

J-1480

The Finlay J-1480 tracked mobile crusher incorporates the Finlay® Jaques JW55 single toggle jaw which boasts a throughput capacity up to 750mtph depending on application and material. The machine has hydrostatic drive which offers reversible operation for clearing blockages and demolition applications. The machine features a robust Finlay® 1415mm x 820mm (55” x 32”)single toggle jaw crusher.

Specification	Value
Net Engine Power	Tier 3 - CAT 440hp \| Tier 4 Final / Stage V - Scania 450hp Tier 3 - CAT 328kW \| Tier 4 Final / Stage V - Scania 331kW
Inlet Opening	55” x 32" 1415mm x 820mm
Operating Weight	175,157lbs 79,450kg
Transport Dimensions	Height 12' 8'' \| Width 11' 1'' \| Length 59' 4'' Height 3.8m \| Width 3.38m \| Length 18m
Working Dimensions	Height 15' 3'' \| Width 22' 0'' \| Length 67' 11'' Height 4.6m \| Width 6.7m \| Length 20.7m

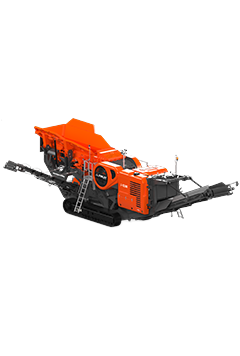

J-1280

The J-1280 was designed to bridge the gap between the J-1175 and the larger J-1480 Jaw Crushers, it is the ideal solution for medium-sized quarries and larger contractors seeking high capacity without the logistical challenges associated with heavier equipment.

Specification	Value
Net Engine Power	Tier 3/Stage III: Caterpillar C13 328kW (440hp) / Tier 4F/ Stage V: Scania DC13 331kW (450hp) Tier 3/Stage III: Caterpillar C13 328kW (440hp) / Tier 4F/ Stage V: Scania DC13 331kW (450hp)
Inlet Opening	47" x 32" 1200mm x 820mm
Operating Weight	167,419lbs 75,940kg
Transport Dimensions	Height 12' 6" \| Width 9' 10" \| Length 56' 1" Height 3.8m \| Width 3.0m \| Length 17.1m
Working Dimensions	Height 14' 9" \| Width 26' 5" \| Length 54' 7" Height 4.49m \| Width 8.06m \| Length 16.63m

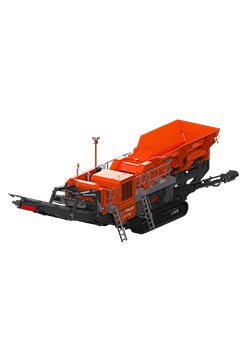

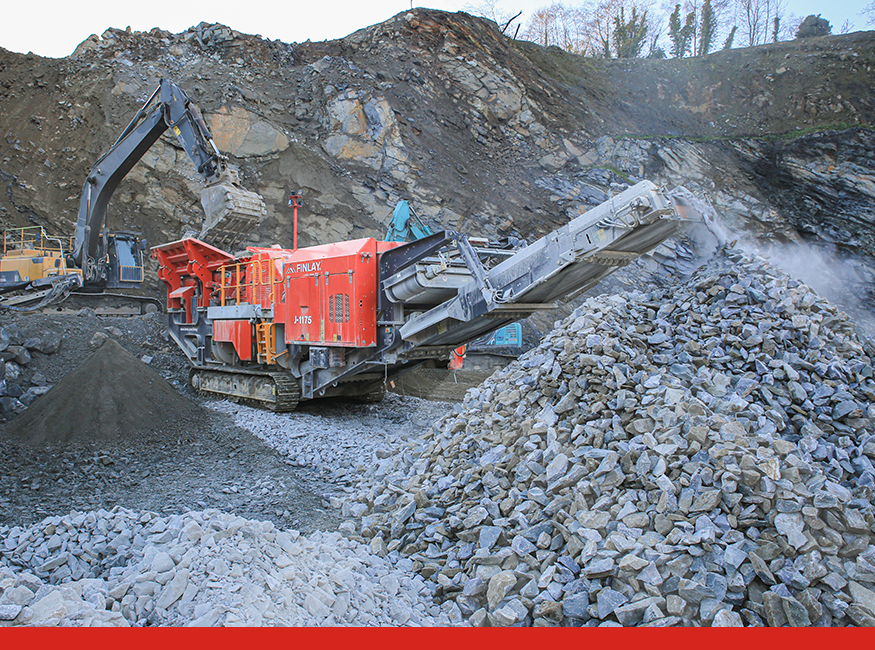

J-1175

The Finlay J-1175 tracked jaw crusher is a high performance and aggressive mobile crusher. The machine incorporates a heavy duty variable speed VGF and integrated prescreen to give optimum performance in quarrying, mining, demolition and recycling applications. The machine has hydrostatic drive which offers reversible operation for clearing blockages and demolition applications. The machine features a robust Terex 1070mm X 760mm (42” x 30”) driven single toggle jaw crusher.

Specification	Value
Net Engine Power	Tier 3 - CAT 350hp \| Tier 4 Final / Stage V - Scania 345hp Tier 3 - CAT 261kW \| Tier 4 Final / Stage V - Scania 257kW
Inlet Opening	42" x 30" 1070mm x 760mm
Operating Weight	113,096lbs 51,300kg
Transport Dimensions	Height 11' 6'' \| Width 9' 6'' \| Length 47' 8'' Height 3.5m \| Width 2.9m \| Length 14.5m
Working Dimensions	Height 12' 1'' \| Width 20' 4'' \| Length 51' 8'' Height 3.9m \| Width 20.4m \| Length 15.7m

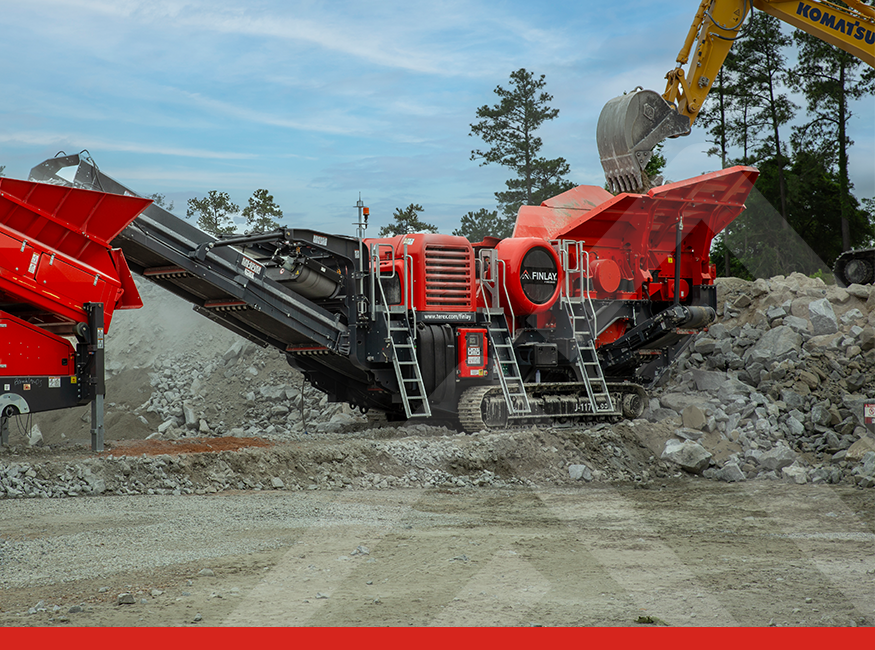

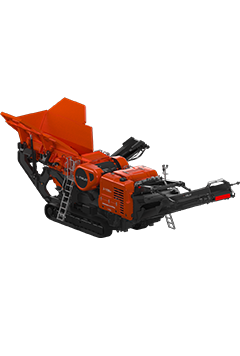

J-1170+

The Finlay J-1170+ portable jaw crusher provides high production capacity with large reduction ratios. The jaw chamber can be configured specifically for either processing construction demolition debris or quarrying applications. The machine has hydrostatic drive which offers reversible operation for clearing blockages and demolition applications. The machine features a robust Terex 1100mm X 700mm (44” x 28”) chamber single toggle jaw crusher.

Specification	Value
Net Engine Power	Tier 3 CAT 350hp \| Tier 4 Final / Stage V - Scania 345hp Tier 3 CAT 261kW \| Tier 4 Final / Stage V - Scania 257kW
Inlet Opening	44" x 28" 1100mm x 700mm
Operating Weight	107,806lbs 48,900kg
Transport Dimensions	Height 11' 2'' \| Width 9' 6'' \| Length 47' 5'' Height 3.4m \| Width 2.9m \| Length 14.5m
Working Dimensions	Height 13' 2'' \| Width 19' 11'' \| Length 52' 10'' Height 4m \| Width 6.04m \| Length 16.1m

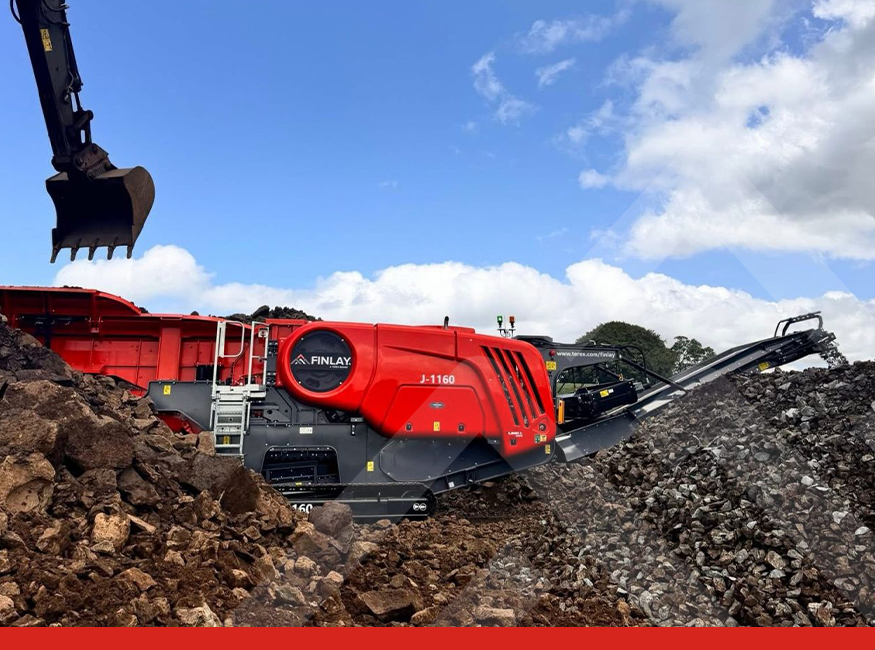

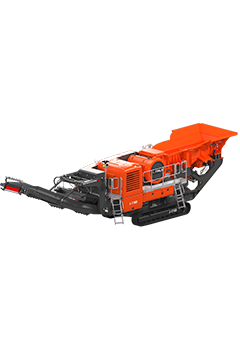

J-1160

The Finlay J-1160 mobile jaw crusher is a primary crusher for aggregates production as well as concrete and asphalt recycling applications. The machine has hydrostatic drive which offers reversible operation for clearing blockages and demolition applications. It is designed to be easy to transport between sites and quick to set up and tear down. The machine features a robust Terex 1000mm x 600mm (40” x 24”) single toggle jaw crusher.

Specification	Value
Net Engine Power	Tier 3 - John Deere 284hp \| Tier 4 Final / Stage V - CAT 275hp Tier 3 - John Deere 212kW \| Tier 4 Final / Stage V - CAT 205kW
Inlet Opening	40" x 24" 1000mm x 600mm
Operating Weight	77,930lbs 35,350kg
Transport Dimensions	Height 11' 2'' \| Width 8' 6'' \| Length 51' 6'' Height 3.5m \| Width 2.6m \| Length 15.7m
Working Dimensions	Height 12' 9'' \| Width 15' 1'' \| Length 50' 10'' Height 3.9m \| Width 4.6m \| Length 15.5m

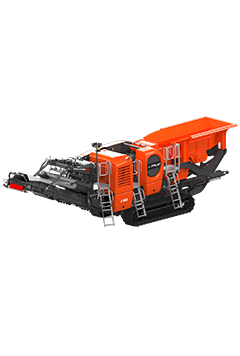

J-960

The Finlay J-960 is the most compact tracked jaw crusher in the Terex® Finlay range. This aggressive and versatile crusher is ideal for small scale on-site crushing of aggregates and construction demolition waste. The direct drive jaw chamber is fitted with an unblock feature that maximizes uptime. The machine features the robust Terex 900mm x 600mm (35” x 24”) direct driven single toggle jaw crusher.

Specification	Value
Net Engine Power	Tier 3 John Deere 169hp \| Tier 4 Final / Stage V - CAT 173hp Tier 3 John Deere 126kW \| Tier 4 Final / Stage V - CAT 129kW
Inlet Opening	35" x 24" 900mm x 600mm
Operating Weight	61,730lbs 28,000kg
Transport Dimensions	Height 10' 6'' \| Width 7'10'' \| Length 40'8'' Height 3.2m \| Width 2.4m \| Length 12.4m
Working Dimensions	Height 10' 6'' \| Width 12'6'' \| Length 40'8'' Height 3.2m \| Width 3.8m \| Length 12.4m

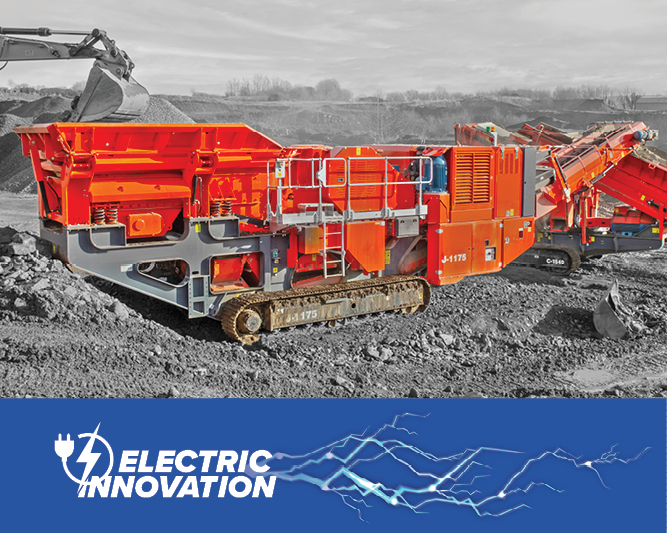

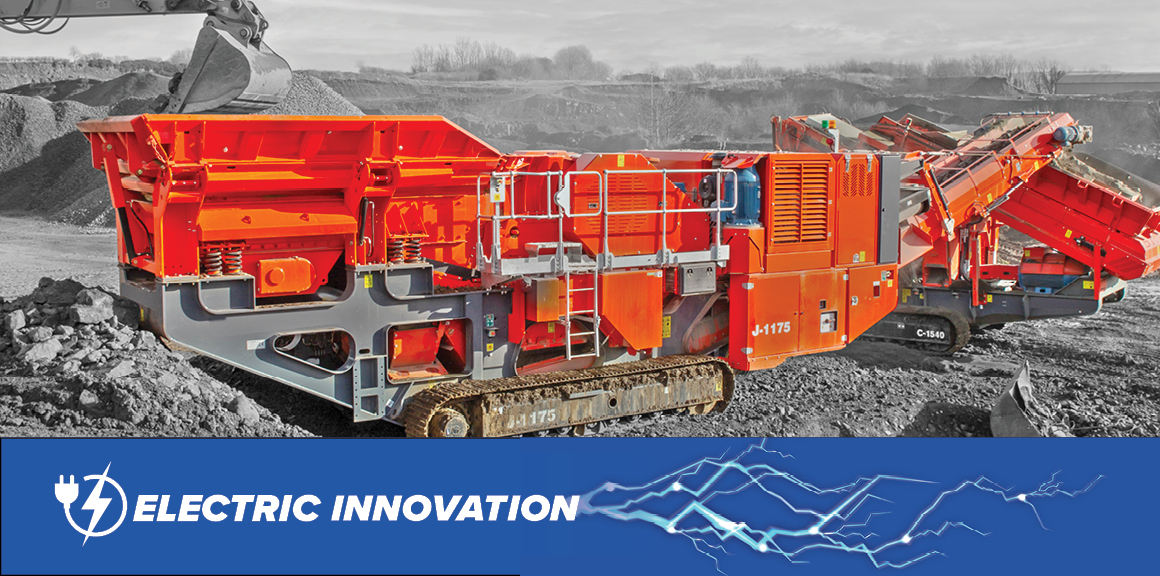

J-1175 Electric

The Finlay® J-1175 electric jaw crusher has been designed to meet the needs of customers for whom electricity is the preferred power source. The intelligent and flexible design of the power pack enables the machine to be connected directly to the grid or a genset electrical power source.

Specification	Value
Net Engine Power	CAT C4.4 130hp CAT C4.4 97kW
Inlet Opening	42" x 30" 1070mm x 760mm
Operating Weight	119,711lbs 54,300kg
Transport Dimensions	Height 11' 6'' \| Width 9' 6'' \| Length 47' 8'' Height 3.5m \| Width 2.9m \| Length 14.5m
Working Dimensions	No Value
