J-960

Jaw Crusher

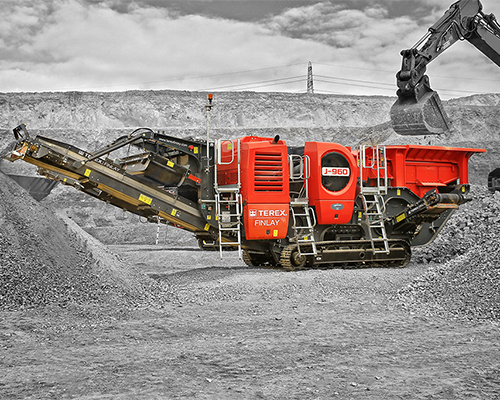

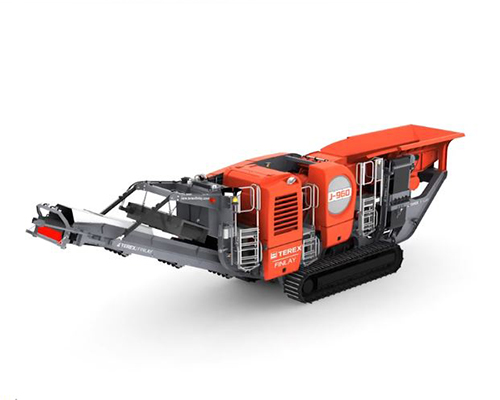

The Terex® Finlay J-960 Portable Jaw Crusher is a compact and aggressive mobile jaw crusher that has been designed with the customer and operator in mind.

The machine has been redesigned with improved all round preventative maintenance and serviceability access points. The heartbeat of the machine is a robust direct driven Terex 900 x 600mm (35” x 24”) single toggle jaw chamber which provides high capacity with large reduction ratios.

Its compact size, excellent mobility and high crushing capacity even at tight settings in recycling and hard rock operations make the J-960 Portable Jaw Crusher ideal for small to medium sized operators.

Key Features:

  • A number of innovative design features have be in built improving material flow through increased clearances, improved service access points and all round maintenance serviceability.

  • Direct drive jaw chamber fitted with an unblock feature that maximizes uptime.

  • Jaw chamber has full hydraulic wedge adjust system for quick and easy on-site adjustment of the jaw CSS minimising downtime.

  • The redesigned main conveyor with 440mm (1’ 5”) under jaw clearance minimises restrictions when operating in recycling applications.

Hopper / Feeder
Jaw Chamber
Main Conveyor:
Magnet seperator:
By-Pass conveyor (optional)
T-Link Telematics

Specification Value
Net Engine Power Tier 3 John Deere 169hp | Tier 4 Final / Stage V - CAT 173hp / Tier 3 John Deere 126kW | Tier 4 Final / Stage V - CAT 129kW
Inlet Opening 35" x 24" / 900mm x 600mm
Operating Weight 61,730lbs / 28,000kg
Transport Dimensions Height 10' 6'' | Width 7'10'' | Length 40'8'' / Height 3.2m | Width 2.4m | Length 12.4m
Working Dimensions Height 10' 6'' | Width 12'6'' | Length 40'8'' / Height 3.2m | Width 3.8m | Length 12.4m

REMOTE PLANT MAXIMISATION.

That's what Terex Finlays’ T-Link telematics system is all about.

T-Link telematics system is the optimum tool to connect you remotely to your Terex Finlay equipment.At any given time you can see the exact location and status of your crushers and screeners.

But even better, this information also shows you precisely what areas you can improve in order to remotely optimise your profitability without needing to be standing beside your machine.


Activating T-Link on your Terex Finlay machine couldn't be simpler. Simply send an email to: finlay.tlink@terex.com and quote the serial number of your machine and we will activate the account for your machine and set you up to receive your 'Weekly Digest' report.


T-Link has been fitted to all Terex Finlay crushers* since 1st January 2016 and  screeners* from 1st January 2017 (*machines fitted with electronic engine).
